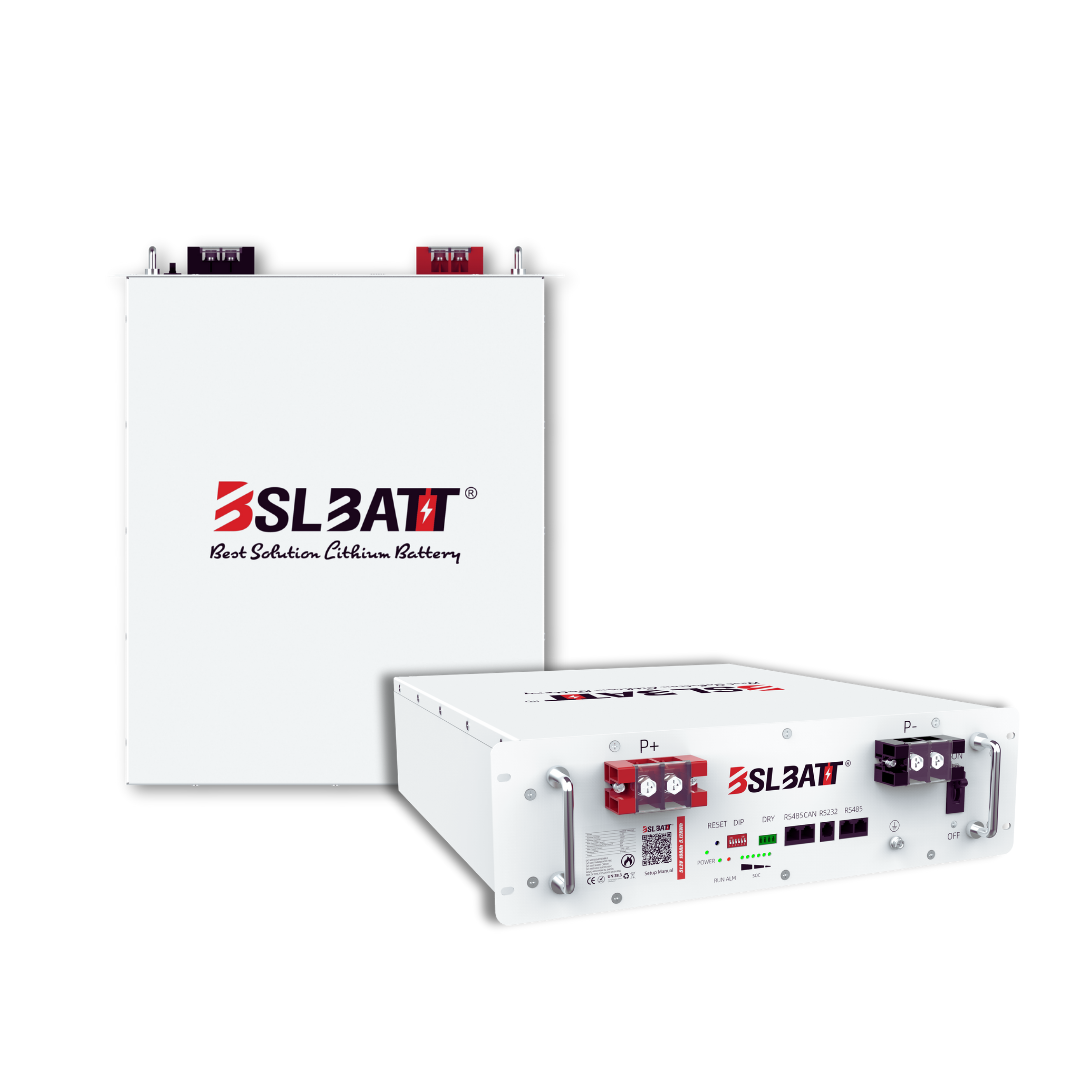

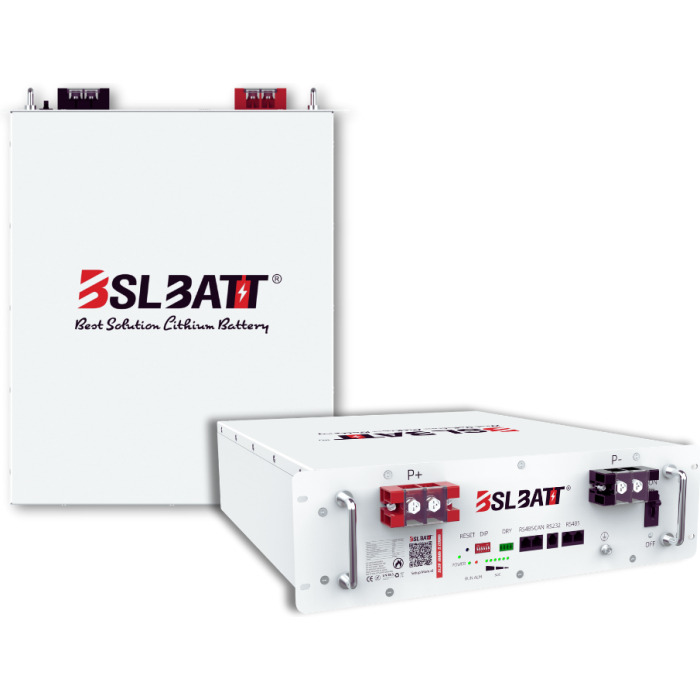

BSL Battery 51.2V – 3U 100Ah CANBUS (5.12kWh)
The BSL Battery 51.2V – 3U 100Ah CANBUS lithium battery is designed for applications needing reliable and efficient energy storage. Here are the key specifications for this battery:
- Nominal Voltage: 51.2V
- Capacity: 100Ah
- Energy: 5.12 kWh
- Battery Chemistry: Lithium Iron Phosphate (LiFePO4) or Lithium NMC (Nickel Manganese Cobalt) depending on the model
- Canbus Communication: Yes, for integration with other systems and battery management
- Discharge Current: Typically up to 100A continuous; higher currents might be supported for short bursts
- Charge Current: Typically up to 50A to 100A, depending on specific model and charger compatibility
- Cycle Life: Around 3,000 to 5,000 cycles at 80% depth of discharge (DoD)
- Operating Temperature Range: Generally -20°C to 60°C (-4°F to 140°F), with more precise specifications depending on model
- Dimensions: Varies by manufacturer but often around 520mm x 270mm x 220mm (20.5in x 10.6in x 8.7in)
- Weight: Approximately 35-45 kg (77-99 lbs)
- Protection Features: Overcharge, over-discharge, over-current, and short-circuit protection
- Certifications: Likely includes CE, UL, and UN38.3 certifications for safety and transport
Data Sheet:
B_LFP_48_100E_3U_290724_SpecSheet_white
