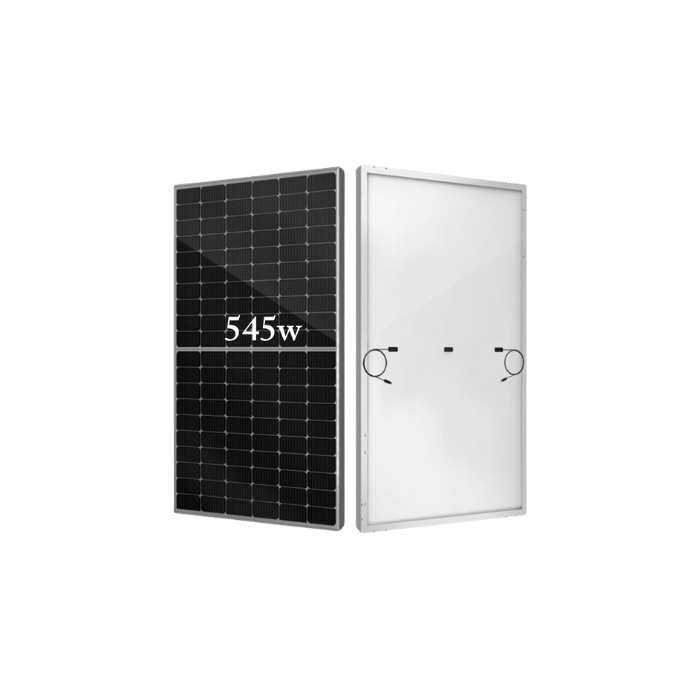

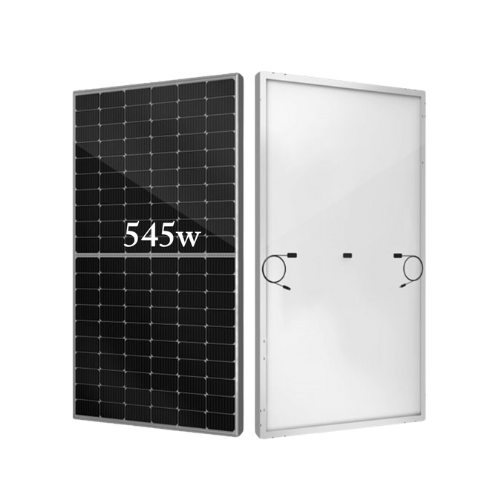

Trina Solar 545w Monocrystalline Solar Panel
The exceptional capabilities of the Monocrystalline Silicon Solar Panel. Engineered for superior performance and reliability, it boasts a STC Power Rating of 545W and a peak efficiency of 20.86%. With 110 cells and Multicontact Connector Type 4 output terminal, installation is hassle-free. Backed by a comprehensive warranty, including 25 years for 80% power output and 12 years for workmanship, it ensures long-term peace of mind. Compliant with UL 1703, IEC 61215, and IEC 61730 standards, it meets stringent quality requirements. Plus, with a sturdy rack-mounted design and impressive power tolerances, it’s suitable for a wide range of applications. Invest in the Monocrystalline Silicon Solar Panel today and unlock the potential of solar energy with confidence.
Specifications:
- STC Power Rating 545W
- PTC Power Rating 513.33W 1
- STC Power per unit of area 19.4W/ft2 (208.6W/m2)
- Peak Efficiency 20.86%
- Power Tolerances 0%/+5%
- Number of Cells 110
- Nominal Voltage not applicable
- Imp 17.37A
- Vmp 31.4V
- Isc 18.47A
- Voc 37.7V
- NOCT 43°C
- Temp. Coefficient of Isc 0.04%/K
- Temp. Coefficient of Power -0.34%/K
- Temp. Coefficient of Voltage -0.094V/K
- Series Fuse Rating 30A
- Maximum System Voltage 1500V
Warranty and Certifications
- 80% Power Output Warranty Period 25yrs
- 90% Power Output Warranty Period 10yrs
- Workmanship Warranty Period 12yrs
- UL Fire Classification data not available
- Compliances UL 1703, IEC 61215, IEC 61730, CUL
- CSI Listed No
PTC rating calculated using 43°C as the NOCT (Nominal Cell Operating Temperature)
MA_Datasheet_Vertex_DE19_202011
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
