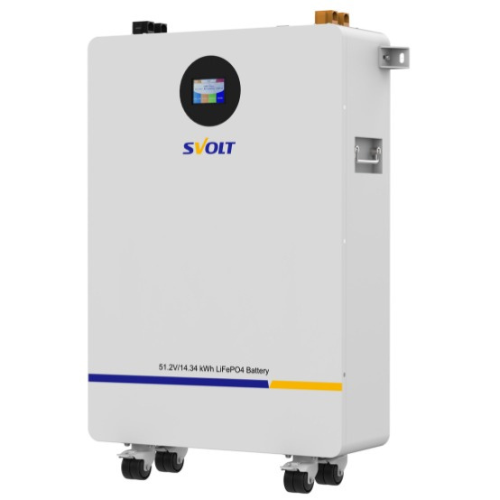

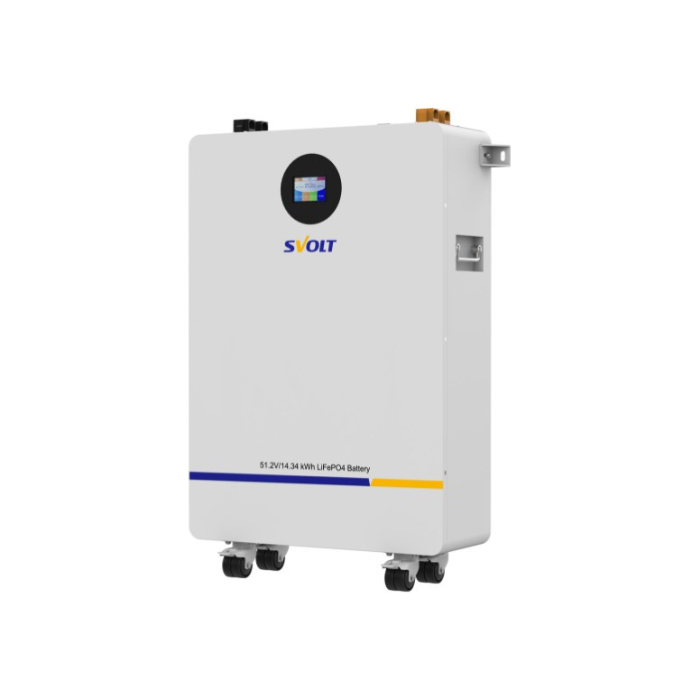

SVOLT 51.2V 280Ah 14.34 kWh A-Grade Lithium Battery

SVOLT 51.2V 280Ah 14.34 kWh A-Grade Lithium Battery

Introducing the SVOLT 51.2V 280Ah 14.34 kWh A-Grade Lithium Battery, a powerful energy storage solution designed for larger applications, including home and commercial energy systems. With its robust design and high capacity, this battery is ideal for integrating into renewable energy systems, especially solar setups.

Key Features:

• High Capacity: Stores up to 14.34 kWh, suitable for extensive energy requirements.
• Versatile Voltage: Operates at 51.2V, facilitating compatibility with various renewable energy systems.
• A-Grade Lithium Cells: Uses premium cells for enhanced performance, longevity, and safety.
• Flexible Installation: Available in wall-mount or standalone options.
• Safety Mechanisms: Equipped with built-in protection against overcharging, overheating, and short circuits.
• Applications: Suitable for off-grid systems, backup power, and load leveling in residential and commercial setups.

Specifications:

• Energy: 14.34 kWh
• Installation Type: Wheel Mounted
• Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 51.2V
• Nominal Capacity: 280Ah
• Dimensions: 550 x 851 x 200 mm
• Weight: Approximately 115 kg
• Terminal Type: Screw Terminal
• Case Material: SPCC
• Built-in BMS: Yes, for battery management
• Internal Resistance: <25 mΩ
• Round Trip Efficiency: >95%
• Self-Discharge Rate: <3% per month
• Maximum Parallel Connections: Supports up to 16 batteries in parallel
• Series Connections: Not supported
• Cycle Life: Over 6,000 cycles
• Temperature Range:
  • Discharge: -20°C to 60°C
  • Charge: 0°C to 50°C
  • Storage: -10°C to 30°C
• Optional Features: Bluetooth app connectivity and a touchable LCD display
• Certifications: IEC62619, CE, UN38.3, TUV-CB, FCC
• Operating Voltage Range: 43.2V to 57.6V
• Recommended Charge Voltage: 56 ± 0.2V
• Maximum Charge Voltage: 58.4 ± 0.2V
• Recommended Charge Current: 100A
• Maximum Continuous Charge Current: 125A
• Recommended Discharge Voltage: 44.8 ± 0.2V
• Maximum Discharging Voltage: 43.2 ± 0.2V
• Maximum Continuous Discharge Current: 125A
• Peak Discharge Current: 230A (for 100 ms)

Warranties:

All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
