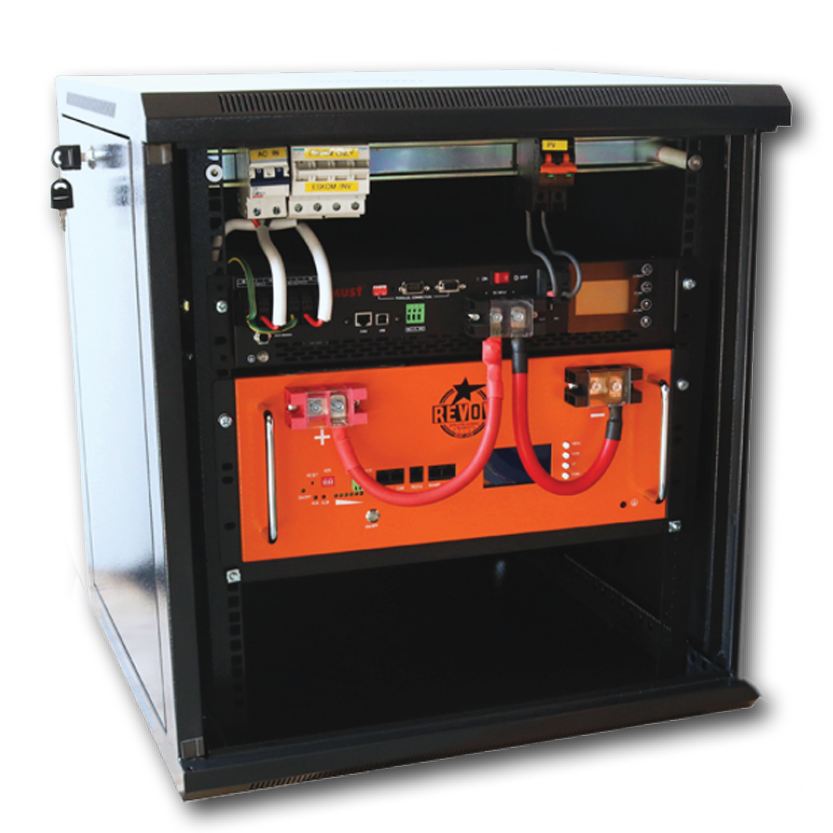

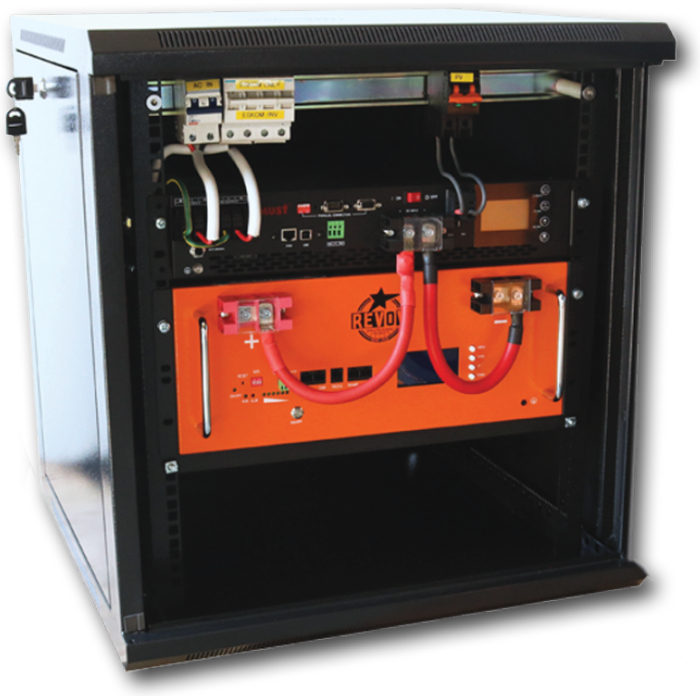

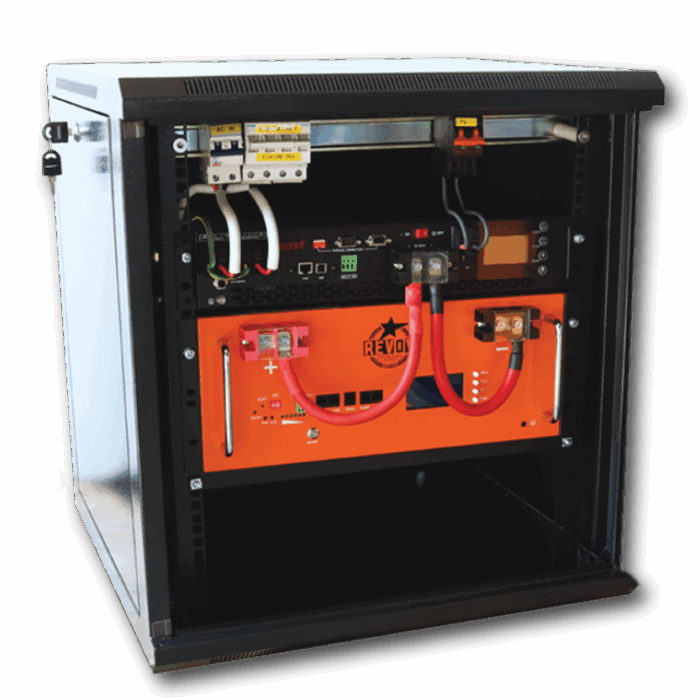

Revov Cube 600 5.12kw (Contains 5kw Inverter & 5.1kw Lithium battery)

The REVOV CUBE is a compact, fully integrated, and all-in-one backup system with pre-programmed 5kVA inverter with 4000W MPPT, pre-connected batteries 5.1kWh/10.2kWh and BMS. The entire unit contains all the necessary wiring and correct fusing, thereby making it quick to install and easy to store. The complete 5.1kWh /10.2kWh units are perfect for residential or small businesses requiring backup. This DC system stores energy, detects grid status, and automatically supplies your home or business when the national grid is compromised.

Features:

• The CUBE is a 5kVA 5.1kWh/10.2kWh pre-configured UPS Inverter with an immediate backup transition from grid to battery power.
• Provision for the attachment of solar panels with built-in MPPT solar charge controller, capable of 4000W input at 130VDC.
• Warranted for daily cycling with built in protection.
• Pure Sine Wave AC Output- long-lasting and safe, with no damage to appliances.
• Optional monitoring function.
• Three phase & parallel configurations available on request (3 CUBE units).

Technical Specifications:

Output:

• Transfer Time: Max 20ms.
• Waveform: Pure Sine Wave.
• Power Output: 4200W.
• Max Peak Power Output: 5000W for 10sec.
• Voltage: 230V.
• Battery
• Nominal Voltage: 51.2VDC.
• Nominal Capacity: 100Ah.
• Bulk/Absorption Voltage: 55.5V.
• Floating Charge Voltage: 54.5V.
• Max Charge Current: 15A Per Battery.
• Energy Capacity: 5.1kWh.
• Recommended Charge Current: 30A.
• Available Depth of Discharge: 95%.
• Maintenance: Charge the battery every 6 months when not in use.

Solar Charger:

• Max Charging Current: 80A.
• System Voltage: 48VDC.
• Operating Voltage Range: 100 ~ 135VDC.
• Max. PV Array Open Circuit Voltage: 145VDC.
• Max PV Array Power: 4000W.

Dimensions & Weight:

• Dimension [LxWxH]: 600mm x 600mm x 635mm.
• Unit Weight [kg]: 82kg.

Warranty:

• REVOV Batteries (PTY) LTD: 10 years or 3 500 cycles at 1 cycle per day.
• 1 year warranty for MUST inverter used in the CUBE.

Datasheet:

9-REVOV-CUBE_SpecV2-Refresh

Warranties:

All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
