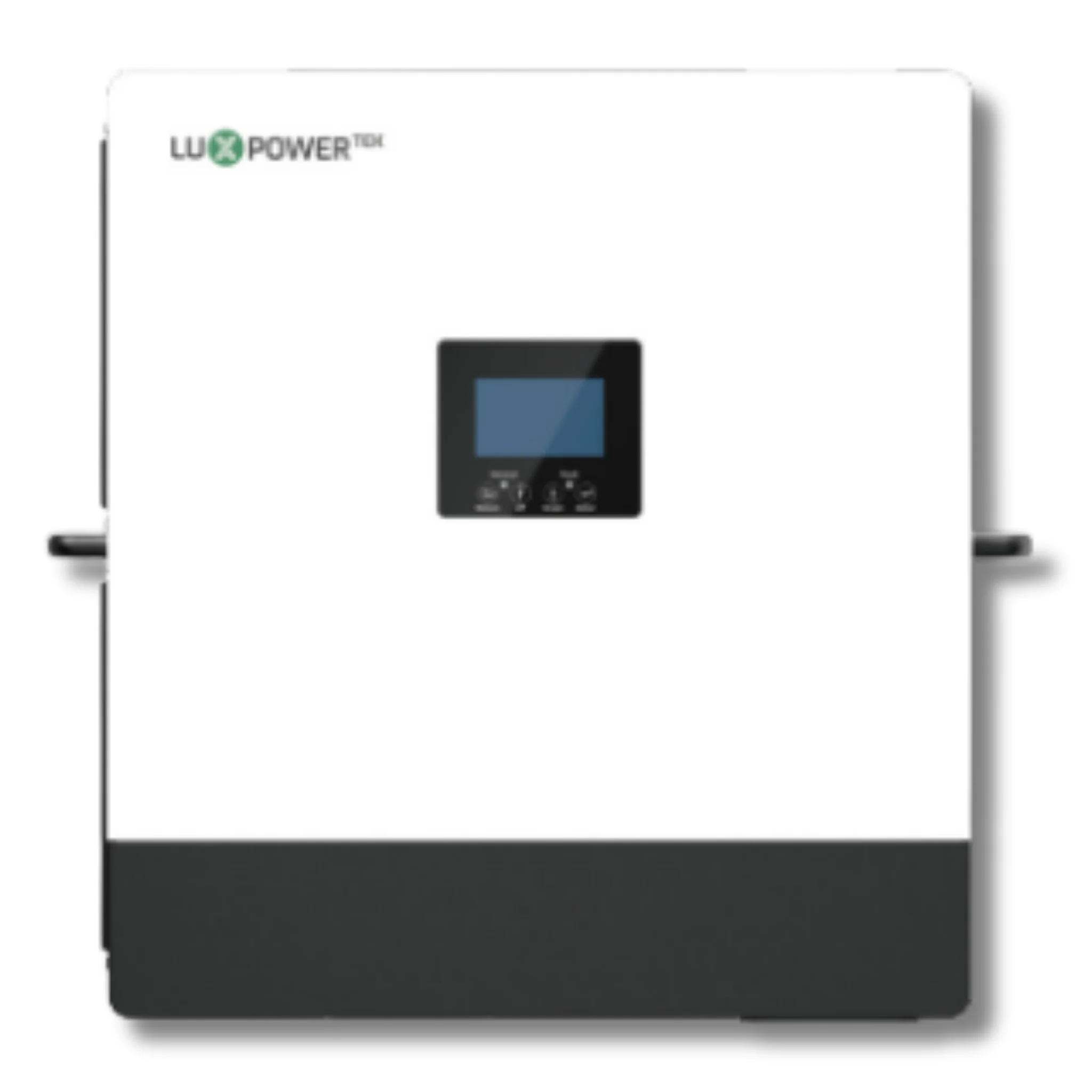

Luxpower 14kW Single Phase Eco Hybrid Inverter SNA2-EU-LT 10-14K
General Data :
Max. PV input: 24kW with 2 MPPTs
Max. charging and discharging current: 250A
Support up to 16 units in parallel for on/off grid
Lite Design for Easier Installation
Support Hybrid Working Modes
Intelligent Operating Mode to Lower Energy Costs & Quick ROI
Separate Gen Port for
– Auto start-stop
– Working with the existing grid-tied system
– Smart load management
Specifications :
INPUT (PV DC)
Max. PV input power (W) : 24000 (12000/12000)
Rated PV input voltage (V) : 320
Number of independent MPPT inputs : 2/(2:2)
PV input voltage range (V) : 100-480
Grid
Rated AC voltage (V) : 230
AC Start-up Voltage : 90
Acceptable Input Voltage Range (V) : 130~280
Battery
Compatible battery type : Lithium-ion/Lead-Acid
Rated battery voltage (V) ; 48/51.2
Battery voltage range (V) : 46.4~60/38.4~60
General
Dimensions ( W*H*D mm ) : 520*580*163mm / 20.5*22.8*6.4 in
Weight : 32.5kg / 71.7lbs
Warranty : 2 years
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
