THE LBSA RHINO INTELLIFLEX HV – HV-104-WFRE BUILT UNITS

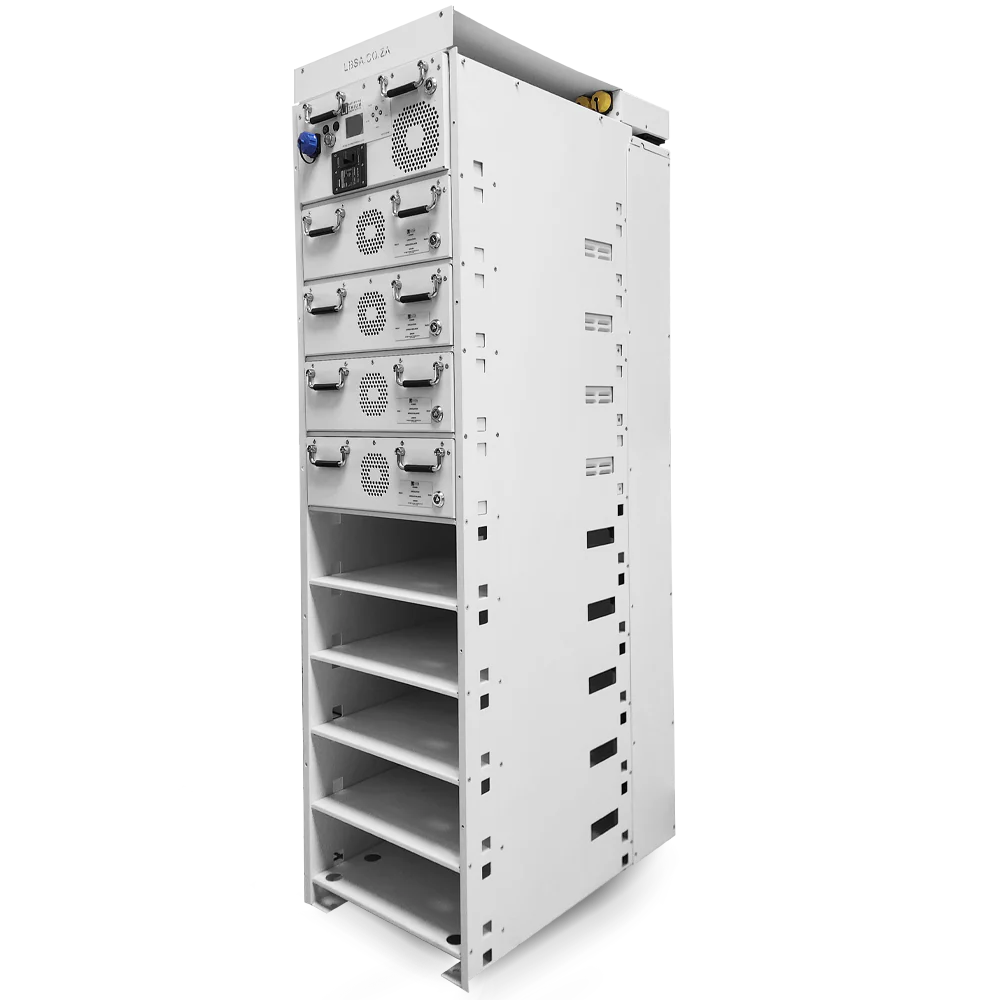

Meet the LBSA High-Voltage Built Unit – a fully assembled, ready-to-install energy storage solution combining a steel rack, HV104-14WFRE modules, and controller for a clean, high-efficiency system. With built-in click-connectors and a concealed main cable compartment, it offers a neat, cable-free appearance while ensuring hassle-free installation. Available in configurations from 3 to 11 modules, these units provide scalable energy storage for residential, commercial, industrial, or utility-scale applications. Designed for reliability and flexibility, each built unit delivers future-ready performance in a compact, organized, and fully integrated package.

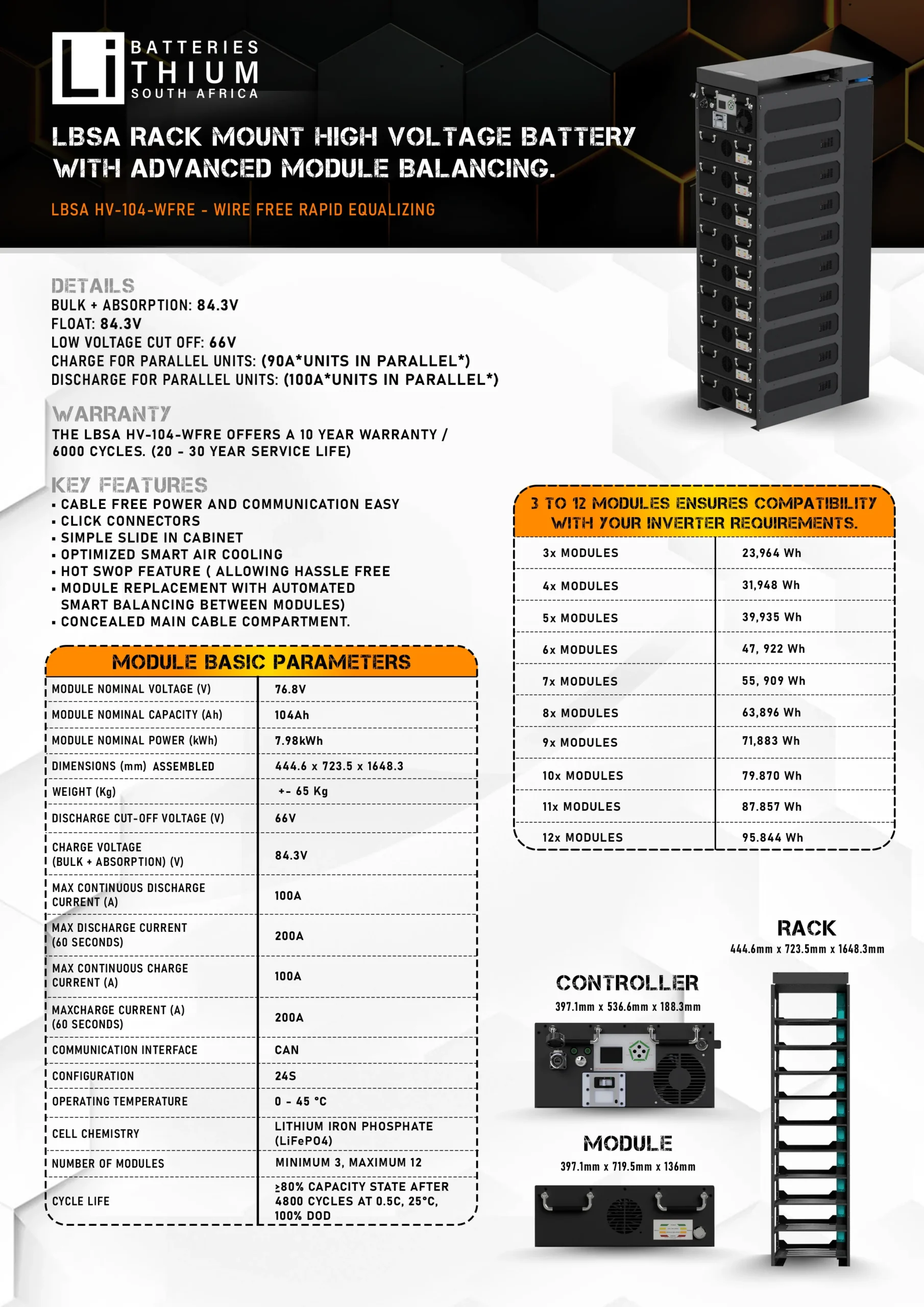

Key Specifications

• Battery Chemistry: LiFePO₄ (Lithium Iron Phosphate)
• Nominal Voltage: 307.2 VDC
• Nominal Capacity: 104 Ah
• Nominal Energy: 31.9 kWh
• Configuration:
  • 4 × LBSA 7.98 kWh High Voltage Modules
  • 1 × LBSA High Voltage Controller

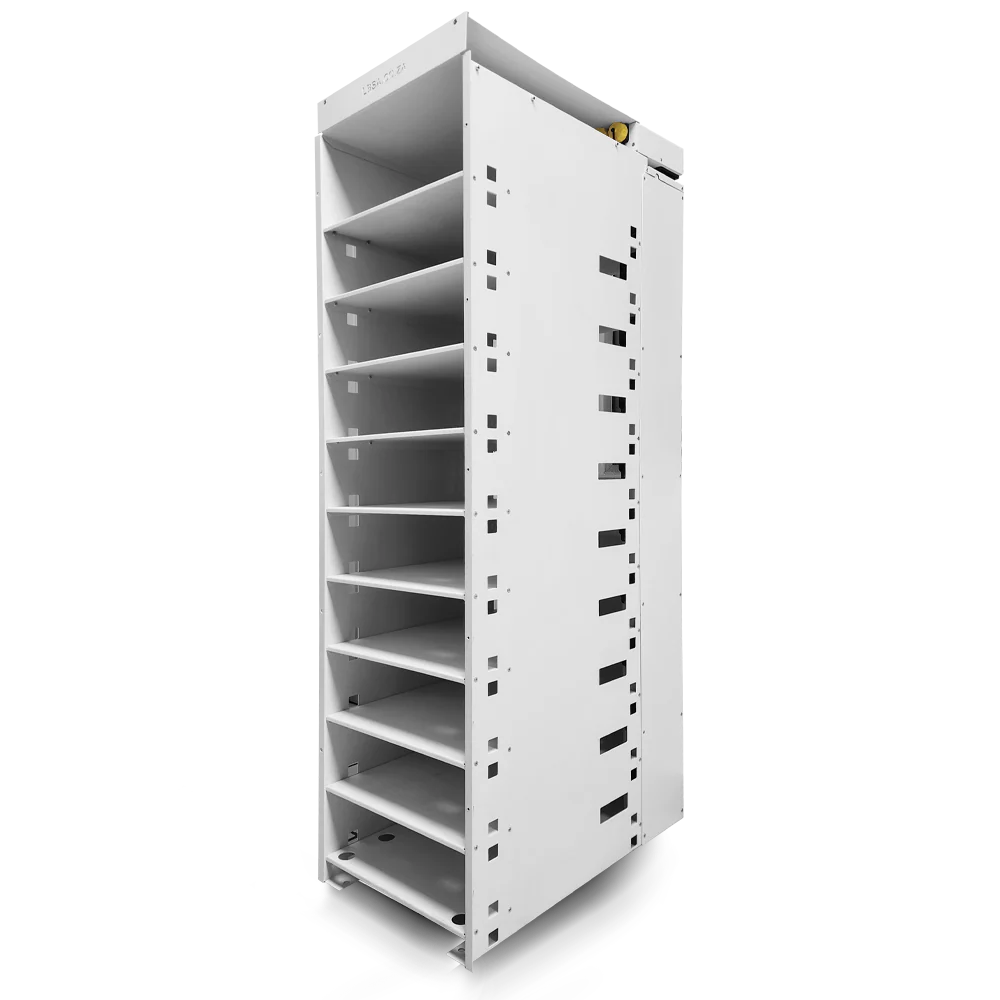

  • 1 × White Rhino IntelliFlex Rack
• Minimum Operating Voltage: 264 V
• Maximum Charge Voltage: 332.87 V
• Maximum Continuous Charge Current: 100 A
• Maximum Continuous Discharge Current: 100 A
• Peak Charge/Discharge Current (60 seconds): 200 A
• Warranty: 10 years with unlimited cycles.

Features

• Fully assembled, ready-to-install battery cluster.
• Latest White Rhino IntelliFlex cabinet.
• Wire-free slide-in battery module installation.
• Built-in click-connect power and communication connectors.
• Concealed cable management.
• CAN Bus communication with failover capability.
• Hot battery adding.
• Module hot swapping.
• Independent charge and discharge control.
• Built-in inverter pre-charge.
• High-precision battery monitoring.
• Fire suppression integration ready.
• Heavy-duty steel cabinet with optimized airflow cooling.
• Expandable from 3 to 11 battery modules.

Physical Specifications

What’s Included

• 4 × LBSA 7.98 kWh High Voltage Modules
• 1 × LBSA High Voltage Controller
• 1 × White Rhino IntelliFlex Rack
• 1 × Terminal connector set (red and black)
• 4 × IP65 housings
• 1 × Terminator
• 1 × Locking mechanism key
• User manuals and installation documentation.

The 31.9 kWh White Rhino IntelliFlex Battery is an ideal solution for medium-sized high-voltage energy storage systems. It is part of the modular Rhino IntelliFlex platform, which can be expanded from 23.9 kWh (3 modules) up to 87.8 kWh (11 modules) by adding additional 7.98 kWh battery modules as energy requirements grow.

Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
