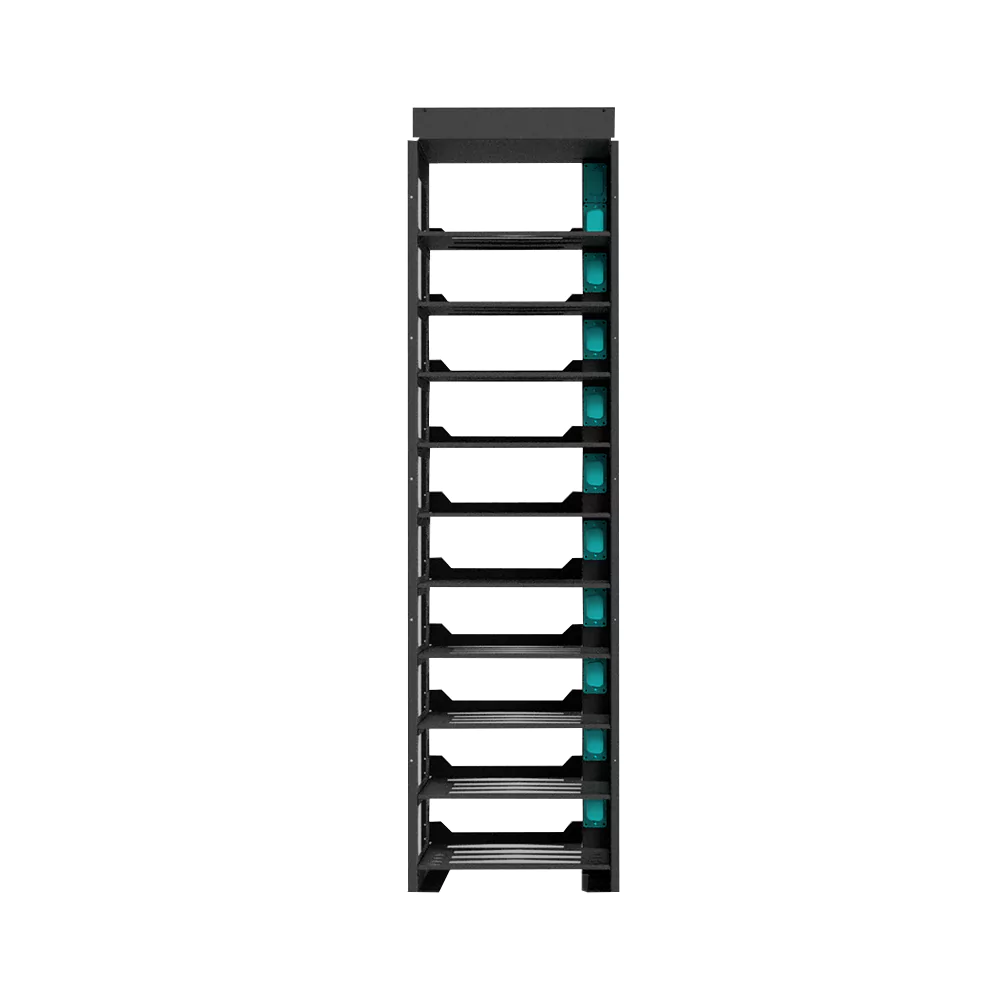

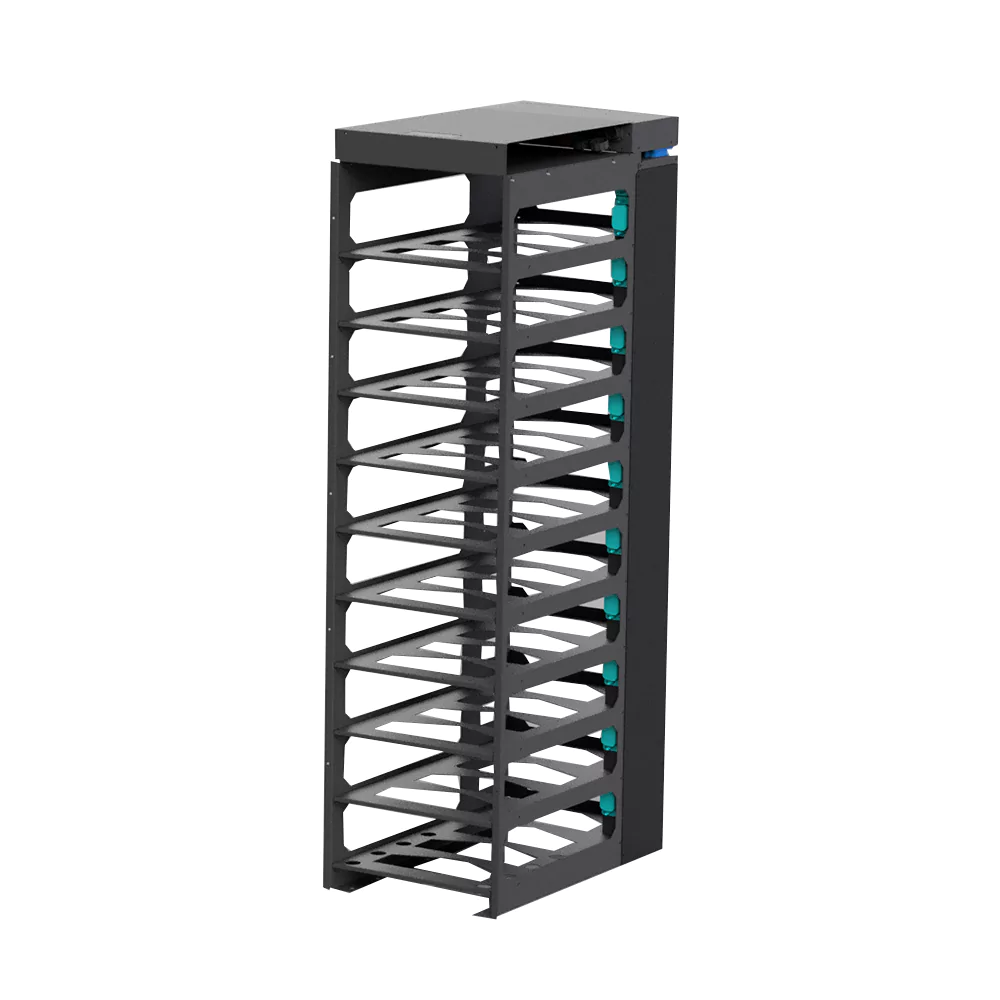

THE LBSA RHINO INTELLIFLEX HV – HV-104-WFRE RACK
Meet the LBSA High-Voltage Rack – a robust steel rack designed to house HV104-14WFRE modules and controllers for a clean, high-efficiency energy storage system. With built-in click-connectors and a concealed main cable compartment, it offers a neat, cable-free appearance while ensuring easy installation. Available in two configurations: Standard Rack (up to 9 modules) and Extended Rack (up to 11 modules), making it ideal for commercial, residential, industrial, or utility-scale setups. Designed for reliability and flexibility, it delivers scalable, future-ready performance in a compact and organized form.
-
Specifications
- Rack Capacity: Up to 9 battery modules + 1 High Voltage Controller
- Battery Compatibility: LBSA HV104-14WFRE 7.98/7.99 kWh High Voltage Modules
- Maximum Energy Storage: 71.88 kWh (9 × 7.98 kWh)
- Construction: Heavy-duty steel
- Installation Type: Floor standing
- Dimensions (H × W × D): 1648.3 × 723.5 × 444.6 mm
- Empty Rack Weight: 90 kg
- Protection Rating: IP20 (Indoor use)
- Operating Temperature: 0°C to 45°C
- Warranty: 10 years
Features
- Built-in click-connect power and communication system.
- Concealed cable compartment for a clean installation.
- Cable-free module installation.
- Supports one LBSA High Voltage Controller.
- Optimized airflow for module cooling.
- Fire suppression integration ready.
- Seismic-resistant anchor points.
- Modular design allowing future expansion to larger systems.
System Capacity
Number of Modules Total Capacity 3 23.96 kWh 4 31.95 kWh 5 39.94 kWh 6 47.92 kWh 7 55.91 kWh 8 63.90 kWh 9 (Maximum) 71.88 kWh Complete 9-Module System
A complete 71.88 kWh system consists of:
- 1 × LBSA High Voltage Rack – 9 Module
- 1 × LBSA High Voltage Controller Rack Mount
- 9 × LBSA High Voltage Module 7.98/7.99 kWh Rack Mount
- Terminal connector set, terminator, IP65 housings, and locking key supplied with the rack.
This configuration is well suited for large residential homes, commercial buildings, farms, and industrial applications requiring scalable high-voltage energy storage.
Warranties:
- All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
