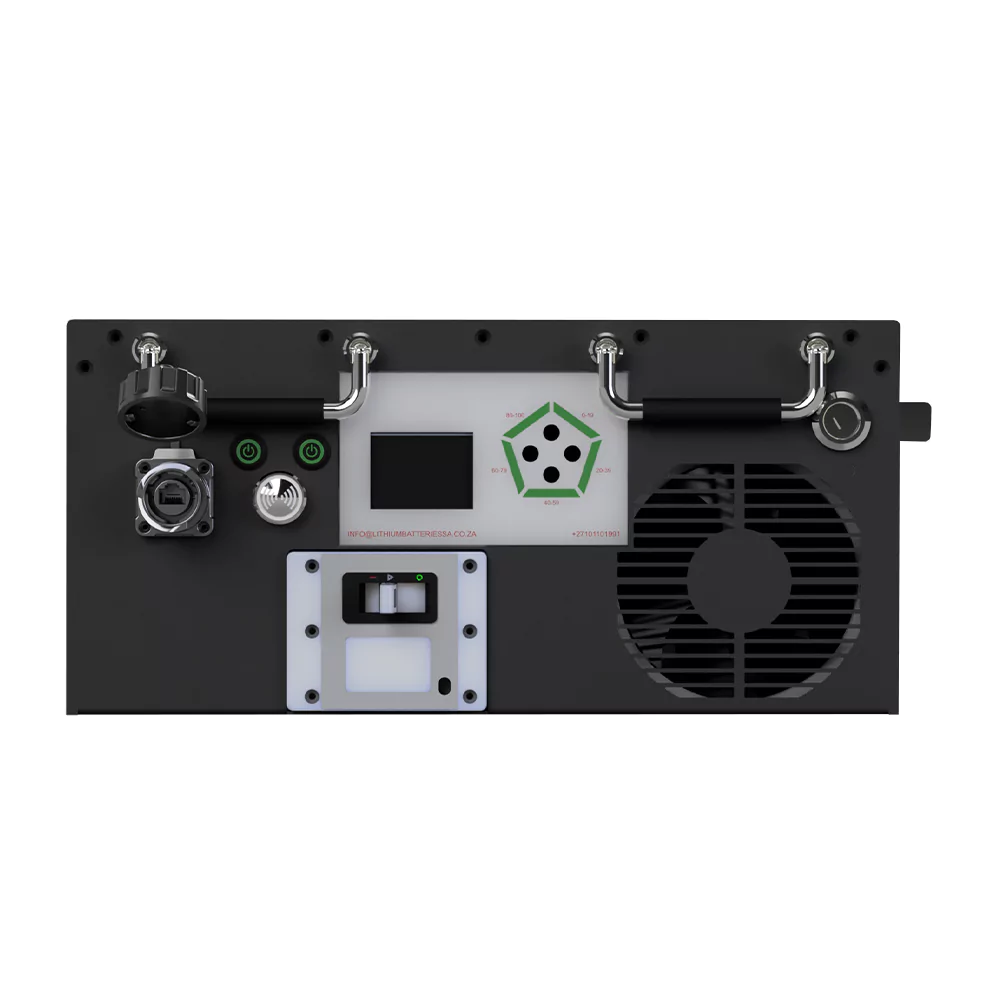

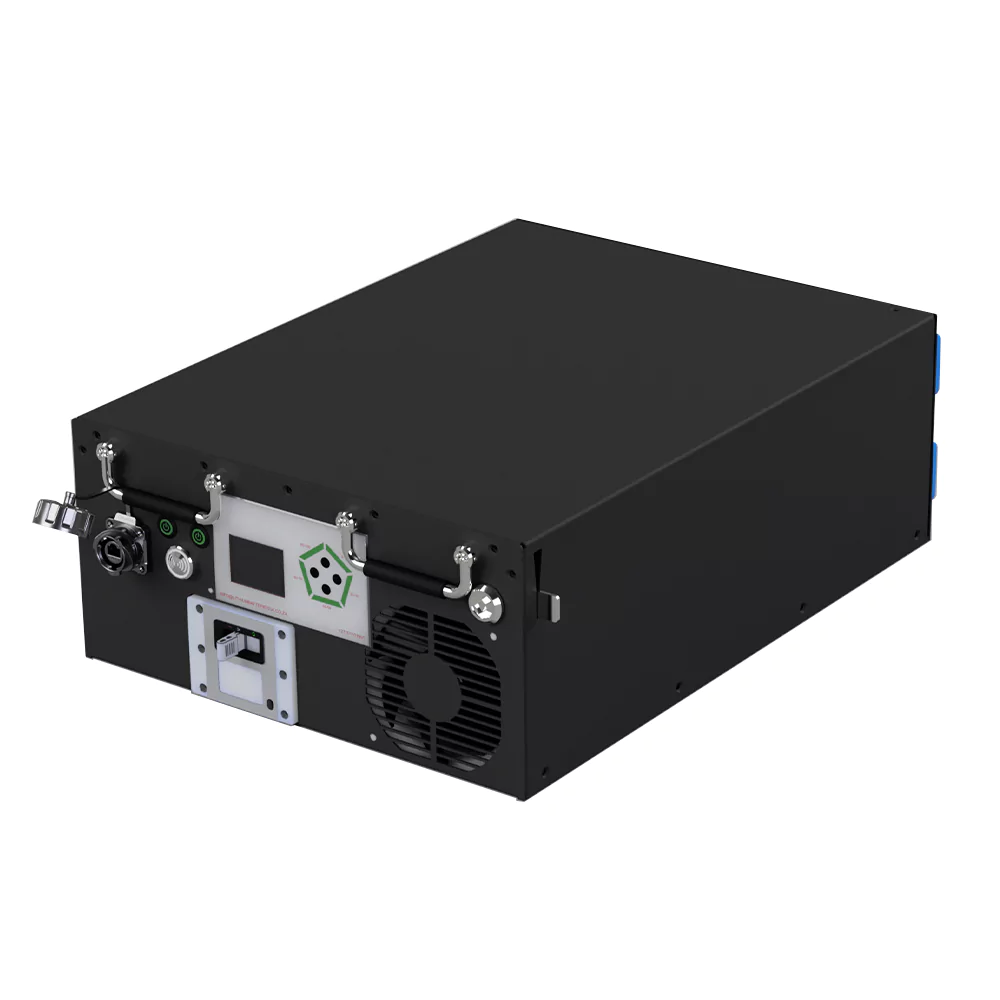

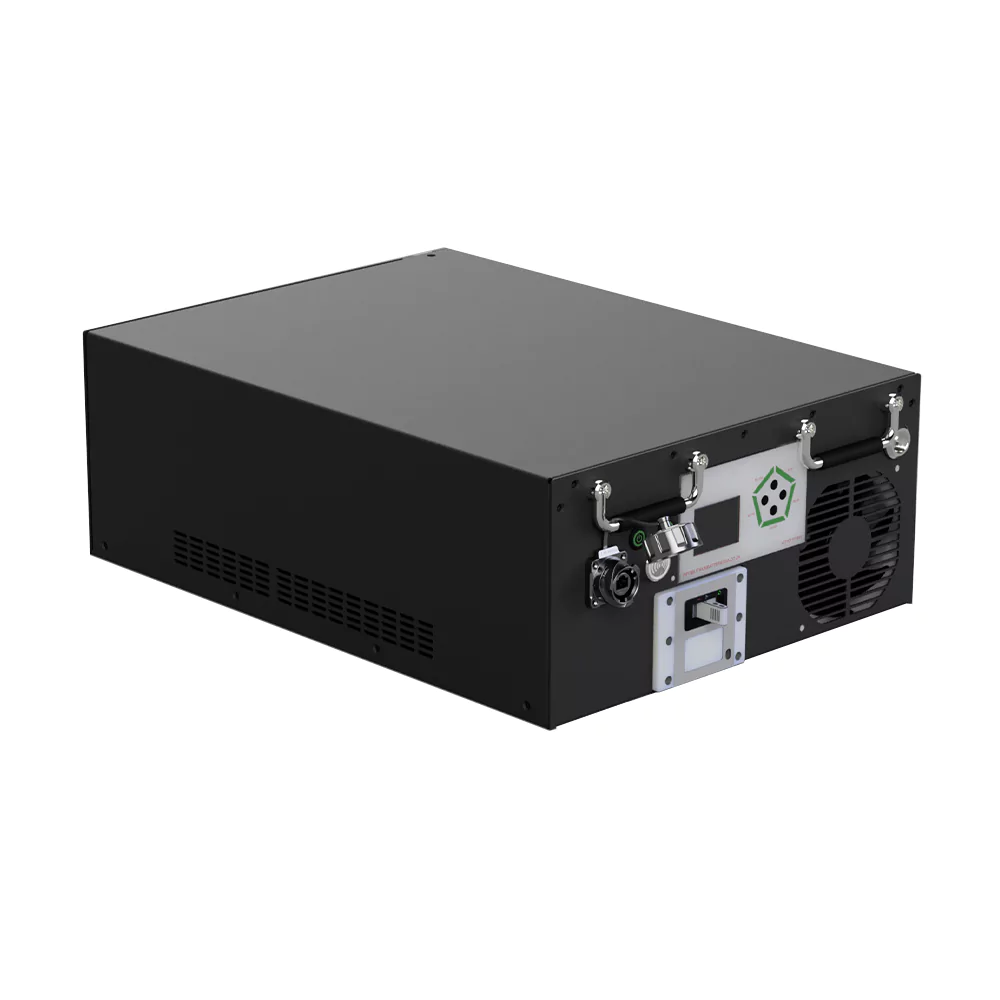

THE LBSA RHINO INTELLIFLEX HV-HV-104-WFRE CONTROLLER
Take full control of your high-voltage energy setup with the LBSA High-Voltage Controller. Engineered to work seamlessly with HV104-14WFRE modules, this smart controller optimizes charge and discharge cycles, monitors system performance in real time, and ensures safe, efficient operation. Whether you’re managing a residential, commercial, or mixed-use installation, it gives you the precision, reliability, and flexibility needed to get the most from your energy storage system.
-

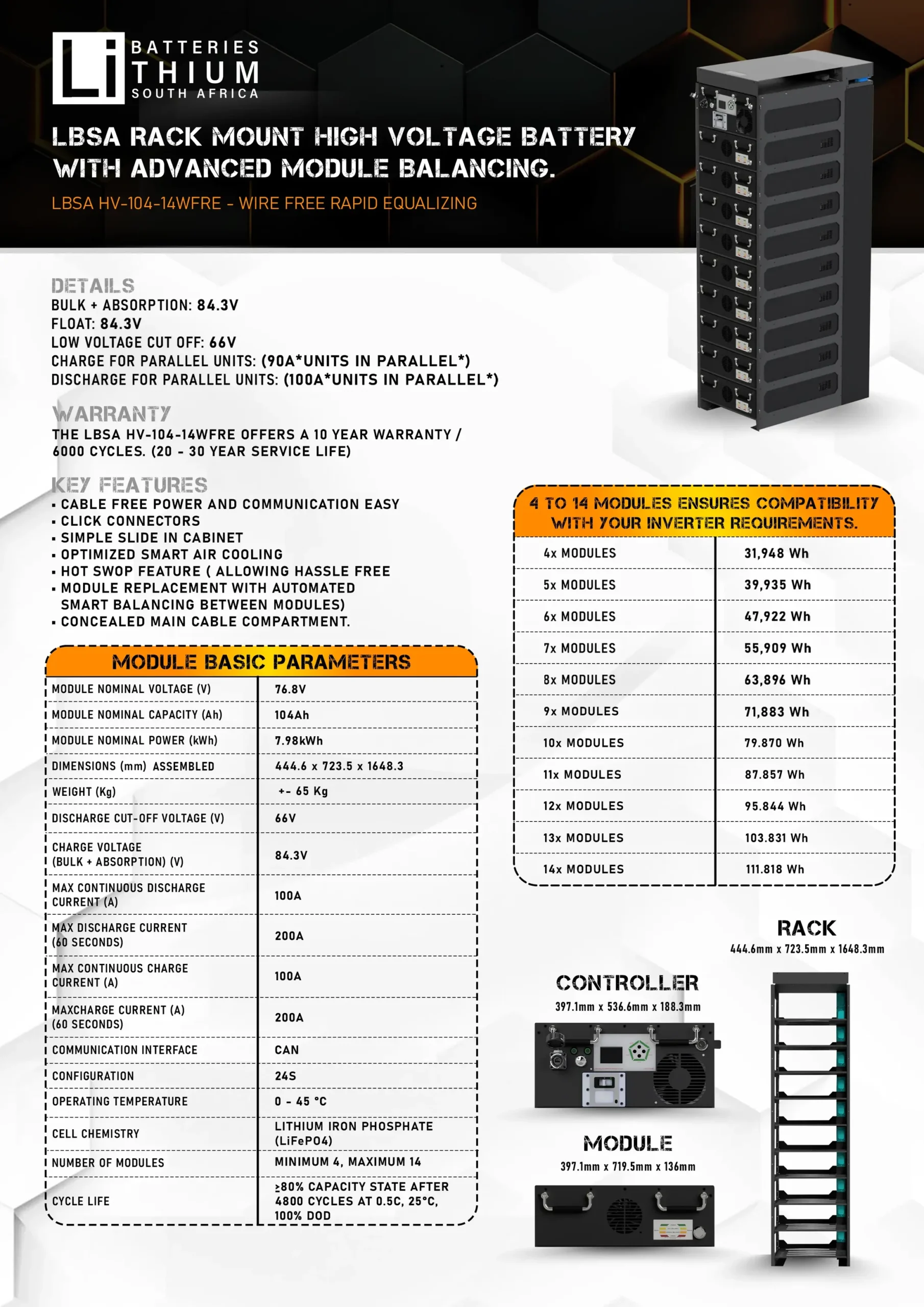

Specifications
- Controller Type: Smart High-Voltage Battery Management System (BMS)
- Compatible Modules: LBSA HV104-14WFRE 7.98/7.99 kWh High Voltage Modules
- Communication Protocol: CAN Bus with Failover CAN Communication
- Monitoring: Real-time system performance monitoring
- Control Functions:
- Independent charge control
- Independent discharge control
- Smart battery management
- Hot battery adding (modules can be added without shutting down the system)
- Maximum Modules Supported: Up to 11 battery modules per rack
- Power Consumption: <10 W (standby)
- Operating Temperature: 0°C to 45°C
- Protection Rating: IP20 (Indoor installation)
- Dimensions: 397.1 × 536.6 × 188.3 mm
- Controller Weight: 24.2 kg
- Warranty: 10 years
Key Features
- Smart Battery Management System (BMS)
- Failover CAN communication for improved reliability
- Real-time battery and system monitoring
- Supports hot-swapping of battery modules
- Wire-free slide-in rack connections
- Fire suppression integration ready
- Designed for residential, commercial, and industrial energy storage systems
Compatible System
The controller is designed to work with:
- 3–11 × LBSA 7.98/7.99 kWh High Voltage Rack Mount Modules
- 1 × LBSA High Voltage Rack (9- or 11-module version)
- Compatible high-voltage hybrid inverters that support CAN Bus communication with the LBSA Rhino IntelliFlex platform.
Warranties:
- All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
