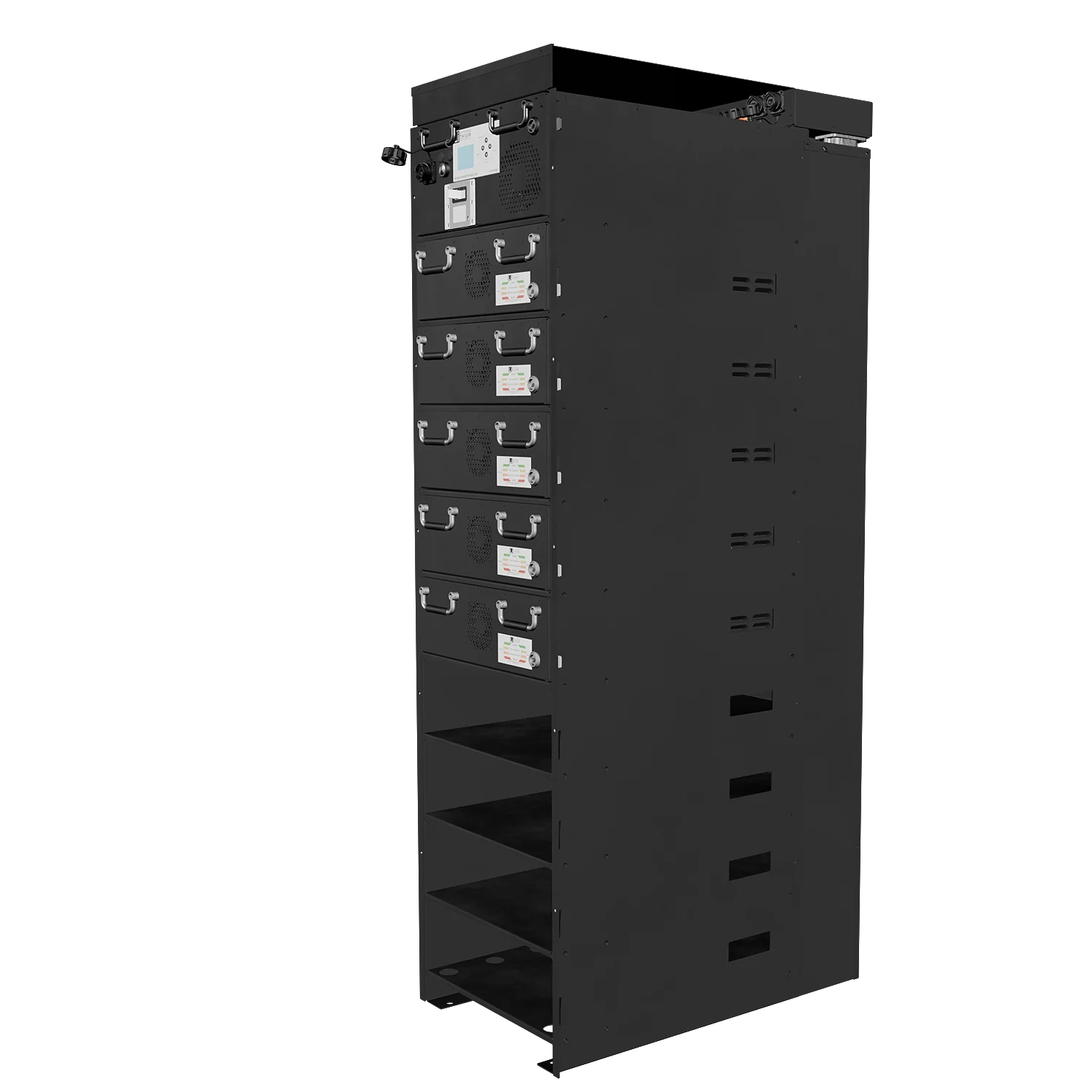

THE LBSA RHINO INTELLIFLEX HV – HV-104-WFRE BUILT UNITS
Meet the LBSA High-Voltage Built Unit – a fully assembled, ready-to-install energy storage solution combining a steel rack, HV104-14WFRE modules, and controller for a clean, high-efficiency system. With built-in click-connectors and a concealed main cable compartment, it offers a neat, cable-free appearance while ensuring hassle-free installation. Available in configurations from 3 to 11 modules, these units provide scalable energy storage for residential, commercial, industrial, or utility-scale applications. Designed for reliability and flexibility, each built unit delivers future-ready performance in a compact, organized, and fully integrated package.

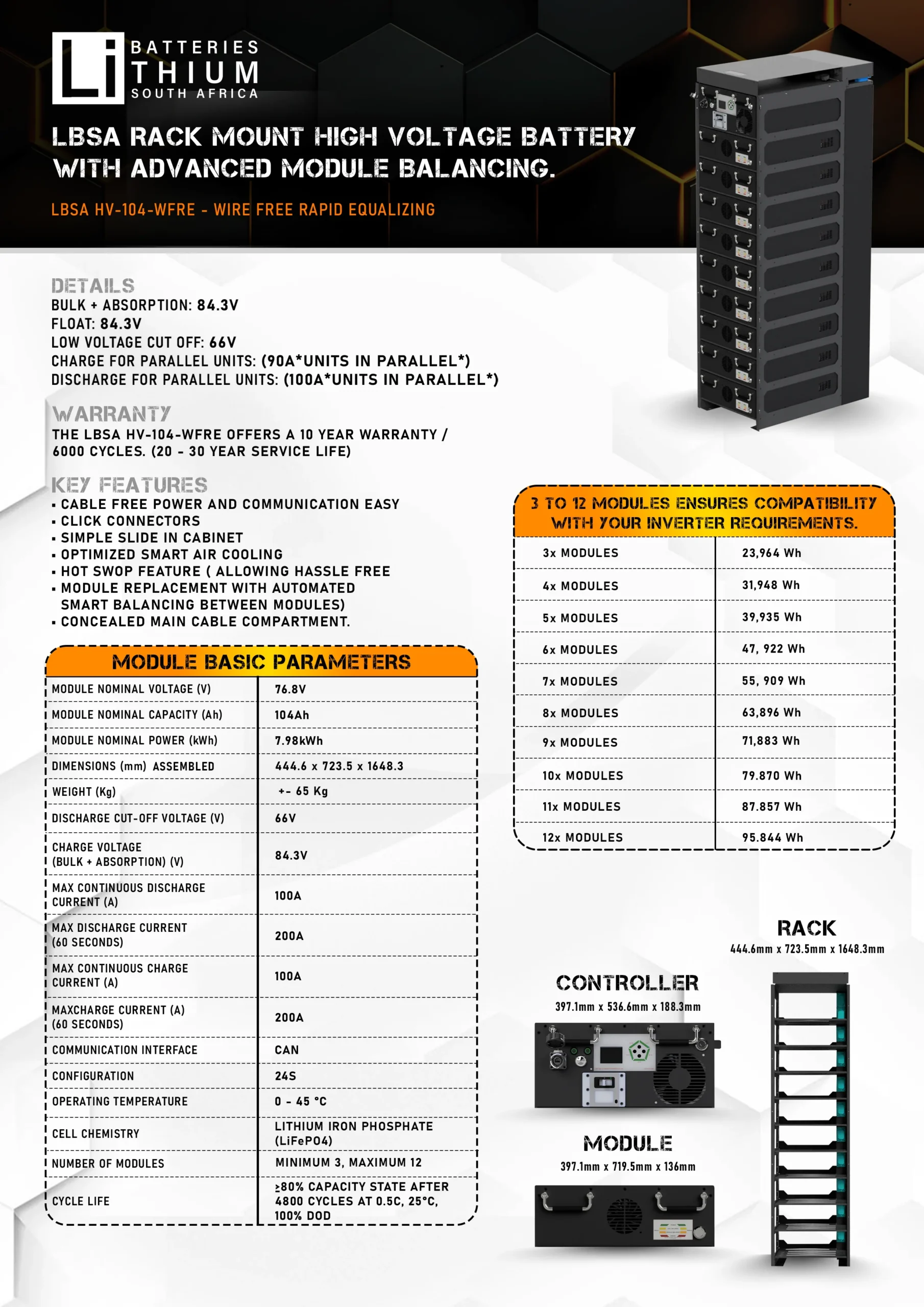

Key Specifications
- Battery Chemistry: LiFePO₄ (Lithium Iron Phosphate)
- Nominal Voltage: 384 VDC
- Nominal Capacity: 104 Ah
- Nominal Energy: 39.9 kWh
- Configuration:
- 5 × LBSA 7.98 kWh High Voltage Modules
- 1 × LBSA High Voltage Controller
- 1 × High Voltage Rack
- Minimum Operating Voltage: 330 V
- Maximum Charge Voltage: 416.07 V
- Warranty: 10 years with unlimited cycles.
Features
- Fully assembled, ready-to-install system.
- Built-in click-connect power and communication connectors.
- Wire-free module installation.
- Concealed cable management.
- CAN Bus communication with failover capability.
- Hot battery adding.
- Module hot swapping.
- Independent charge and discharge control.
- Built-in inverter pre-charge.
- High-precision battery monitoring.
- Fire suppression integration.
- Heavy-duty steel cabinet with optimized airflow cooling.
Physical Specifications
| Specification | Value |
|---|---|
| Nominal Voltage | 384 V |
| Capacity | 104 Ah |
| Energy Storage | 39.9 kWh |
| Battery Modules | 5 |
| Module Capacity | 7.98 kWh each |
| Rack Dimensions (D × W × H) | 444.6 × 723.5 × 1648.3 mm |
| Approximate System Weight | 434.2 kg |
| Installation | Indoor (IP20) |
| Operating Temperature | 0°C to 45°C |
What’s Included
- 5 × LBSA 7.98 kWh High Voltage Battery Modules
- 1 × LBSA High Voltage Controller
- 1 × High Voltage Rack
- 1 × Terminal connector set (red and black)
- 4 × IP65 housings
- 1 × Terminator
- 1 × Locking mechanism key.
This 39.9 kWh configuration forms part of the scalable LBSA Rhino IntelliFlex range, which supports configurations from 23.9 kWh (3 modules) up to 87.8 kWh (11 modules). The modular design allows additional battery modules to be added in the future as your energy storage requirements grow.
-
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
