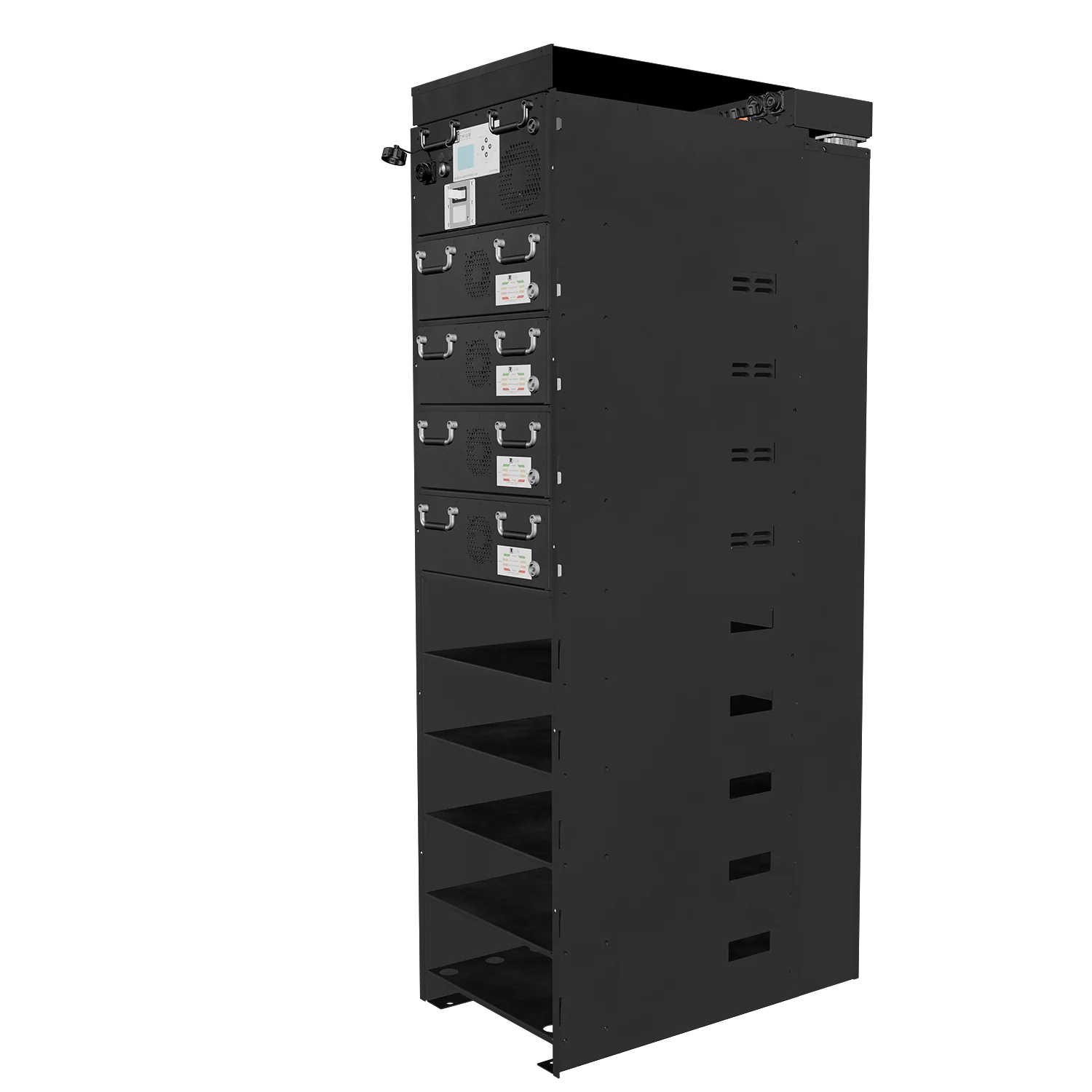

THE LBSA RHINO INTELLIFLEX HV – HV-104-WFRE BUILT UNITS

Meet the LBSA High-Voltage Built Unit – a fully assembled, ready-to-install energy storage solution combining a steel rack, HV104-14WFRE modules, and controller for a clean, high-efficiency system. With built-in click-connectors and a concealed main cable compartment, it offers a neat, cable-free appearance while ensuring hassle-free installation. Available in configurations from 3 to 11 modules, these units provide scalable energy storage for residential, commercial, industrial, or utility-scale applications. Designed for reliability and flexibility, each built unit delivers future-ready performance in a compact, organized, and fully integrated package.

• Key Specifications

  • Battery Chemistry: LiFePO₄ (Lithium Iron Phosphate)
  • Nominal Voltage: 307.2 VDC
  • Nominal Capacity: 104 Ah
  • Nominal Energy: 31.9 kWh
  • Configuration:
    • 4 × LBSA 7.98 kWh High Voltage Modules
    • 1 × LBSA High Voltage Controller
    • 1 × High Voltage Rack
  • Minimum Operating Voltage: 264 V
  • Maximum Charge Voltage: 332.87 V
  • Warranty: 10 years with unlimited cycles.

  Features

  • Fully assembled and ready for installation.
  • Built-in click-connect power and communication connectors.
  • Wire-free slide-in battery module installation.
  • Concealed cable management.
  • CAN Bus communication with failover capability.
  • Hot battery adding and module hot swapping.
  • Independent charge and discharge control.
  • Built-in inverter pre-charge.
  • Fire suppression ready.
  • Heavy-duty steel cabinet with optimized airflow cooling.

  Physical Specifications

  Specification	Value
  Nominal Voltage	307.2 V
  Capacity	104 Ah
  Energy Storage	31.9 kWh
  Battery Modules	4
  Module Capacity	7.98 kWh each
  Rack Dimensions (D × W × H)	444.6 × 723.5 × 1648.3 mm
  Empty Rack Weight	90 kg (9-module rack)
  Module Weight	64 kg each
  Controller Weight	24.2 kg
  Installation	Indoor (IP20)
  Operating Temperature	0°C to 45°C

  What’s Included

  • 4 × LBSA 7.98 kWh High Voltage Battery Modules
  • 1 × LBSA High Voltage Controller
  • 1 × High Voltage Rack
  • 1 × Terminal connector set (red and black)
  • 4 × IP65 housings
  • 1 × Terminator
  • 1 × Locking mechanism key.

  This 31.9 kWh configuration is part of the scalable LBSA Rhino IntelliFlex high-voltage range. The platform can be expanded from 3 modules (23.9 kWh) up to 11 modules (87.8 kWh) using the same modular architecture, making it easy to increase storage capacity as energy requirements grow.

  Warranties:
  All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
