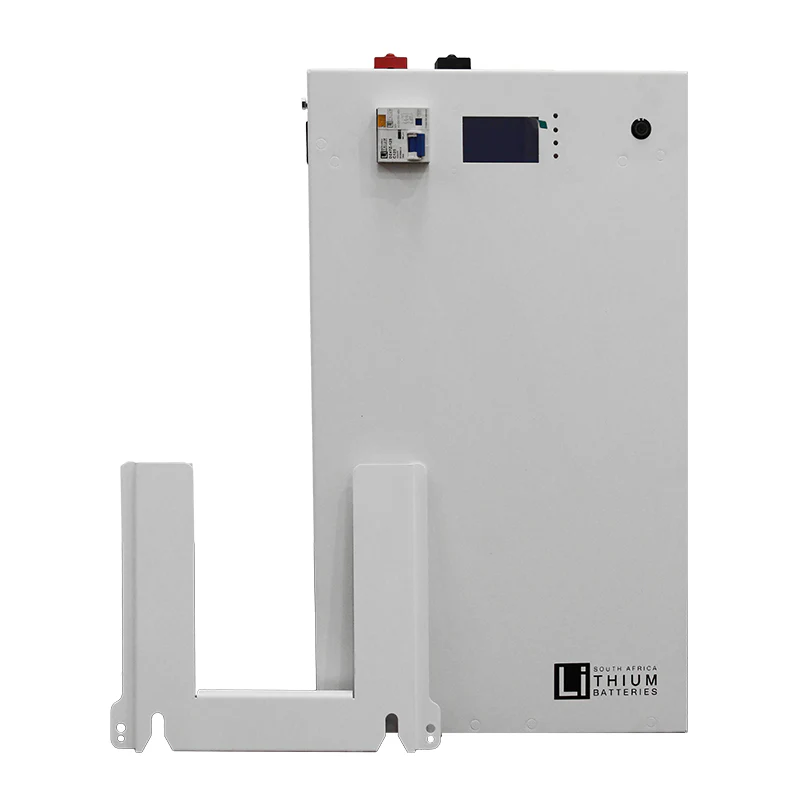

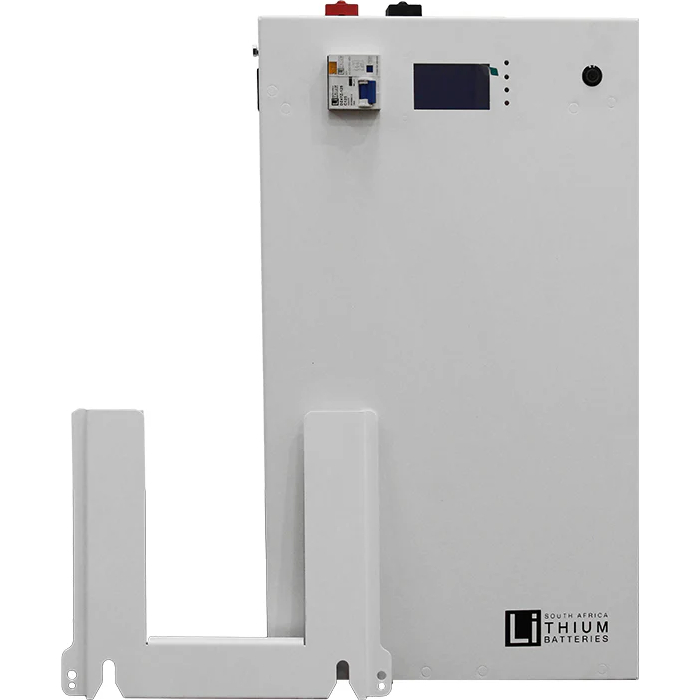

LBSA 104AH 5.3kwh Lithium battery – Wall Mount White

COMPATIBLE WITH ALL PREVIOUS LBSA SMART BATTERIES

LBSA (Lithium Battery Storage System): LBSA is a brand of lithium-ion battery storage systems designed for residential and commercial applications.

5.3kWh: This refers to the total capacity of the battery, which is measured in kilowatt-hours (kWh). In this case, the battery has a capacity of 5.3 kWh.

Some key features and benefits of the LBSA 5.3kWh battery include:

• Off-grid capability: This battery can store excess energy generated by solar panels or wind turbines, allowing you to use it during nighttime or when the grid is down.
• Grid-tied capability: The battery can also be connected to the grid, allowing you to sell excess energy back to the utility company or use it during peak hours.
• High cycle life: Lithium-ion batteries like this one have a long lifespan, with a typical cycle life of around 5-10 years or more.
• Compact design: The battery is designed to be compact and easy to install, making it suitable for residential and commercial applications.
• Advanced BMS (Battery Management System): The battery has a sophisticated BMS that ensures safe and efficient operation, monitoring temperature, voltage, and current.

Overall, the LBSA 5.3kWh battery is a reliable and efficient option for anyone looking to store excess energy for later use or reduce their reliance on the grid.

Details

• CAN Bus Communications: Compatible with Victron, Growatt, Sunsync
• Bulk and Absorption Charge: 56V
• Float Charge: 54V
• Low Voltage Cut-Off: 44V
• Continuous Charge/Discharge for a Single Unit: 100A
• Charge for Parallel Units: (100A * Number of units in parallel) / 2
• Discharge for Parallel Units: 100A * Number of units in parallel (Automatic with communication to Victron)

Specifications

• Nominal Voltage: 51.2V
• Nominal Capacity: 105Ah(>105Ah)
• Nominal Power: 5.2KWh @ 0.4c (Tested)
• Dimensions: 408 x 362 x 191 mm
• Weight: 49 kg
• Discharge Cut-off Voltage: 44V
• Charge Voltage: 56V
• Max Charge/Discharge Current (A): 100A
• Communication Interface: CAN, RS485
• Configuration: 16S1P
• Working Temperature: 0~50°C(Charge), -20~50°C(Discharge), -20~55°C(Storage)
• Cell Chemistry: Lithium iron phosphate (LiFePO4)
• Cycle Life: ≥80% capacity state after 4800 cycles at 0.5C, 25°C, 100% DOD
• IP Level: IP 20

5.3KWH 51.2V 104AH Spec Sheet

Warranties:

All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
