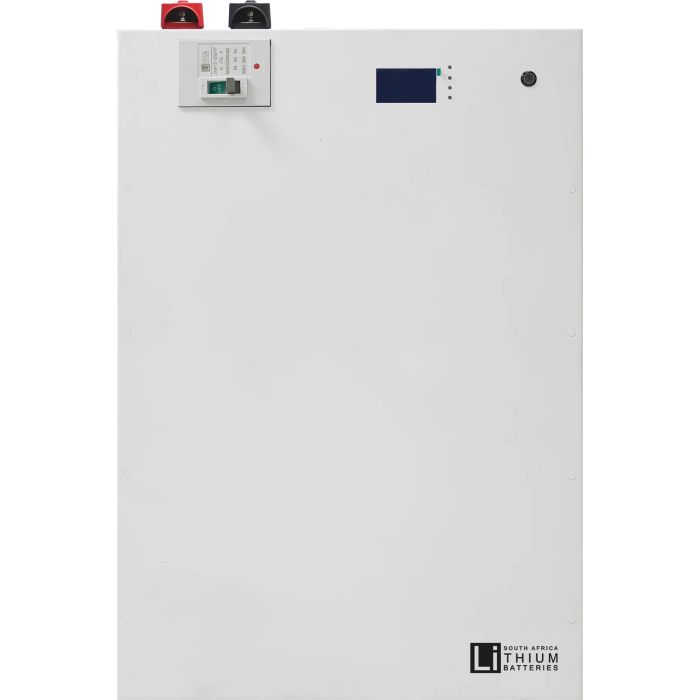

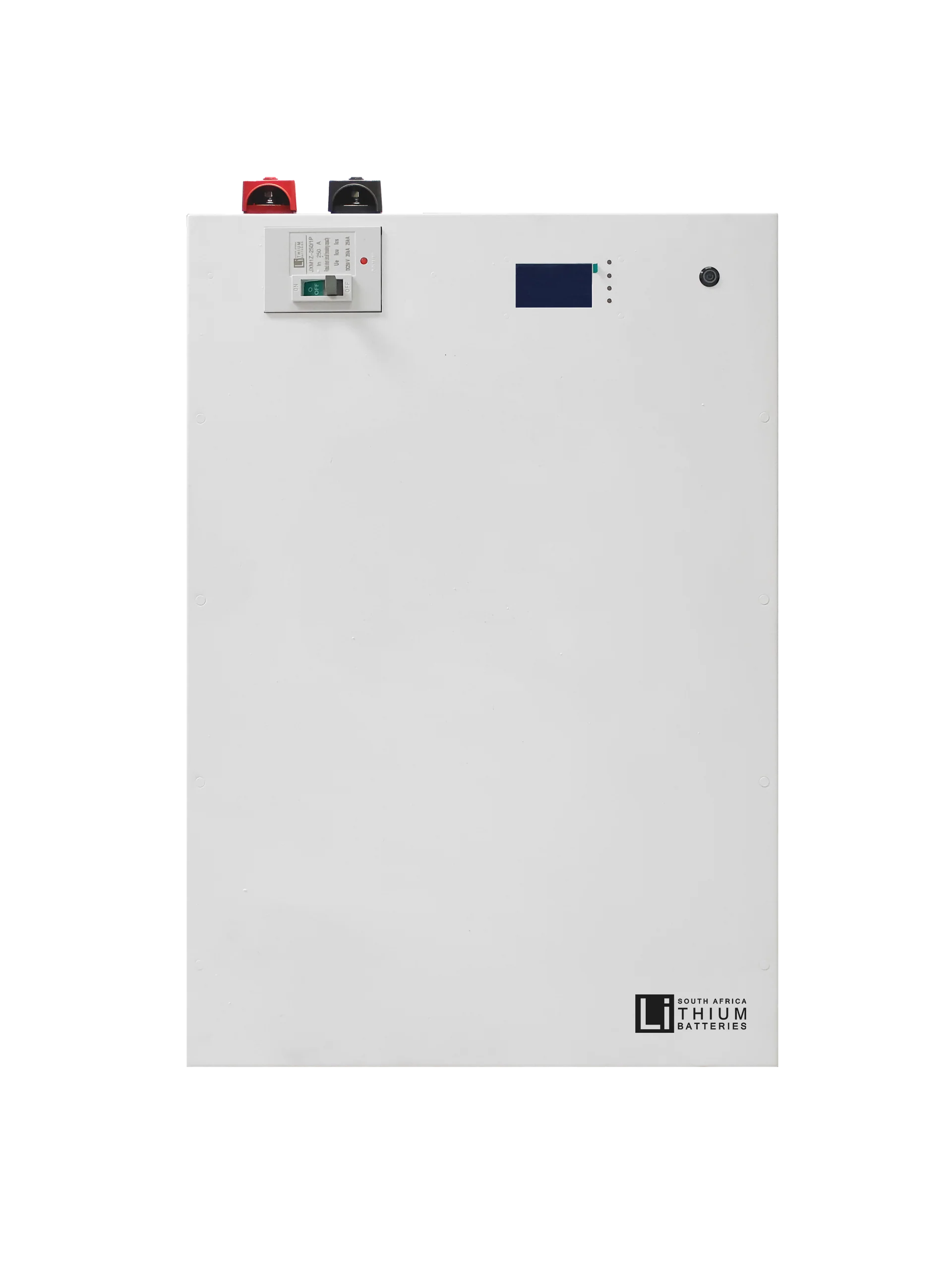

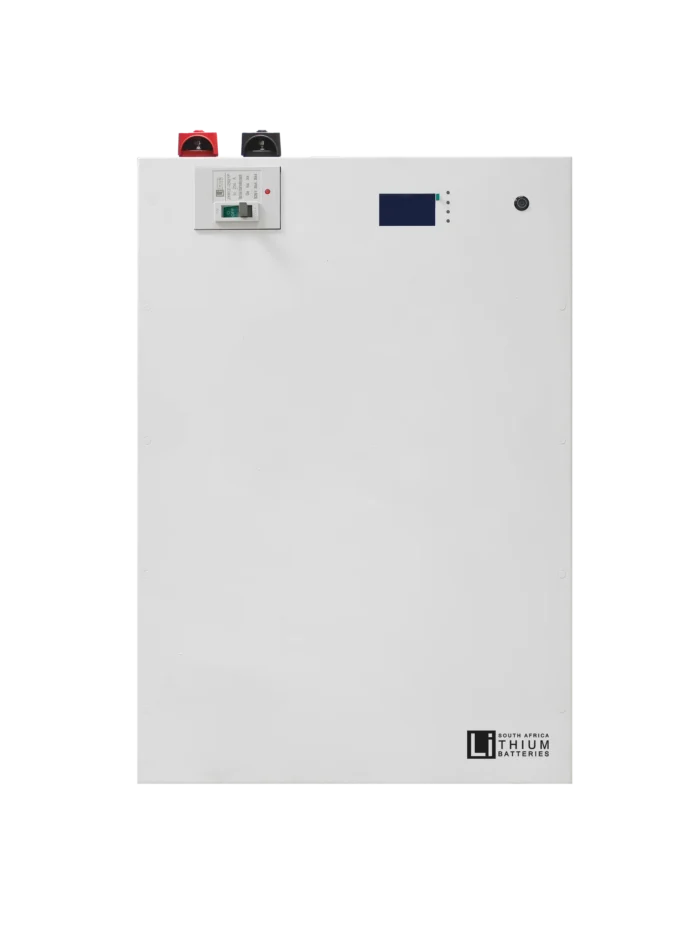

LBSA 10.6 kWh 51.2v 208Ah LiFePO4 Wall Mount Solar UPS Battery – White

Introducing the LBSA 10.6 kWh 51.2V 208Ah LiFePO4 Wall Mount Solar UPS Battery—a powerhouse of energy storage that combines cutting-edge technology with exceptional safety and reliability. This versatile battery is your gateway to efficient and eco-friendly power management for a wide range of applications.

Features – LBSA 10.6 kWh 51.2v 208Ah LiFePO4 Wall Mount Solar UPS Battery:

Advanced Lithium Iron Phosphate (LiFePO4) Technology: The heart of this battery is a high-performance 3.2V 104Ah aluminum case prismatic cell, ensuring top-notch safety and an extended cycle life.

Comprehensive Battery Management System (BMS): Safety is paramount, and our BMS ensures it. With over-discharge, over-charge, over-current, and high/low-temperature warning and protection functions, your battery remains secure.

Precise Monitoring and Balancing: The BMS continuously monitors charge and discharge states, balancing current and voltage across each cell to optimize performance.

Exceptional Discharge Performance: Operating within a wide temperature range from -20℃ to 50℃, this battery delivers outstanding discharge performance and cycle life, even in demanding conditions.

Flexible Expansion: With the ability to connect up to 16 packs in parallel using 8 DIP switches, you can expand capacity and power to meet your evolving needs.

250A DC Circuit Breaker: Added safety with a 250A DC circuit breaker to protect your system.

Specifications:

• Nominal Voltage (V): 51.2V
• Nominal Capacity (Ah): 208Ah
• Nominal Power (kWh): 10.6 kWh
• Dimensions (mm): 750mm135mm520mm
• Weight (Kg): 84KG
• Discharge Cut-off Voltage (V): 44V
• Charge Voltage (Bulk+Absorption) (V): 56.2V
• Max Discharge Current (A): 200A
• Recommended Charge Current: 100A
• Communication Interface: CAN
• Configuration: 16S: 2P
• Working Temperature: 0～50℃(Charge), -20～50℃(Discharge), -20～55℃(Storage)
• Cell Chemistry: Lithium iron phosphate (LiFePO4)
• Cycle Life: ≥80% capacity state after 4800 cycles at 0.5C, 25℃, 100% DOD
• IP Level: IP 20
• CAN Bus Comms: Compatible with Victron, Growatt, Sunsynk, DEYE, Luxpower, and more.

LBSA-10.6V-208Ah-LiFePO4-Battery-Pack-User-Manual.docx

Warranties:

All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
