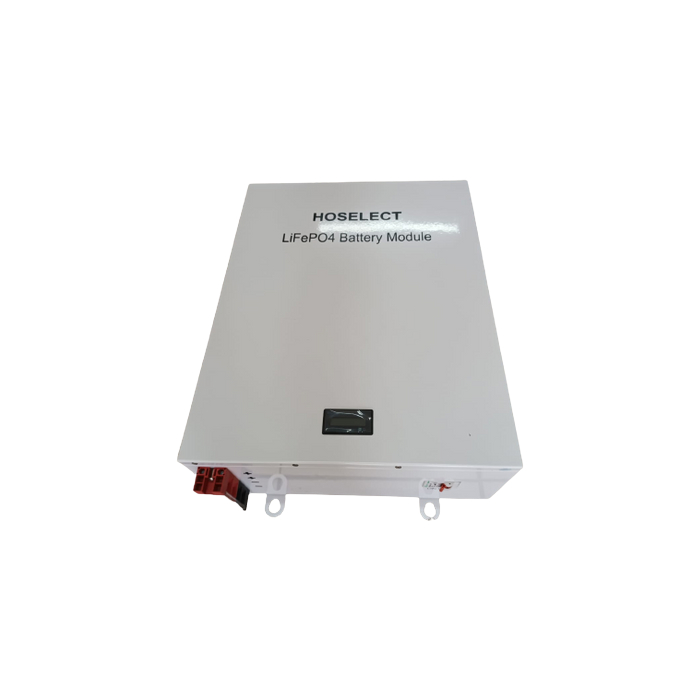

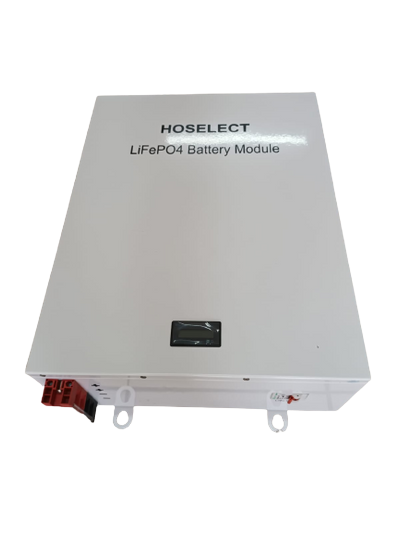

The HOSSELECT 2.56KW Lithium Battery 24V is an exceptional energy storage solution designed to deliver reliable power in diverse applications. With a nominal voltage of 25.6V and a rated capacity of 100Ah, this lithium battery provides a robust and long-lasting power source for various systems.
One of its standout features is the series connection support, enabling users to connect up to 23 of these batteries in series. This capability allows for expanded voltage configurations, making it adaptable to a wide range of setups and energy requirements.
The HOSSELECT 2.56KW Lithium Battery 24V incorporates advanced charging and discharging technology. It has an Equalize Voltage of 28.8V, ensuring an optimized and balanced charge for the battery cells. The Float Voltage of 28V maintains a steady charge during periods of low power consumption, helping to extend the battery’s overall lifespan.
Safety and reliability are paramount with this battery, and it includes a Low Cut Off Voltage of 22.4V to prevent over-discharging, which can harm the battery’s performance. Additionally, it has a Max Charge/Discharge Current of 100Amp, providing sufficient power for high-demand applications.
The HOSSELECT battery boasts compact dimensions of 450 x 600 x 250mm, making it space-efficient and easy to install in various settings. Despite its high capacity, it remains manageable, weighing in at 42KG, ensuring convenience during setup and maintenance.
Specifications and Features:
- Nominal Voltage: 25.6V
- Rated Capacity: 100Ah
- Series Connection Support: Connect up to 23 batteries in series
- Equalize Voltage: 28.8V
- Float Voltage: 28V
- Low Cut Off Voltage: 22.4V
- Max Charge/Discharge Current: 100Amp
- Compact Dimensions: 450 x 600 x 250mm
- Weight: 42KG
- High Energy Density
- Long Cycle Life
- Advanced Charging and Discharging Technology
- Safe and Reliable Operation
- Versatile Applications
- Warranty: 5 years
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
