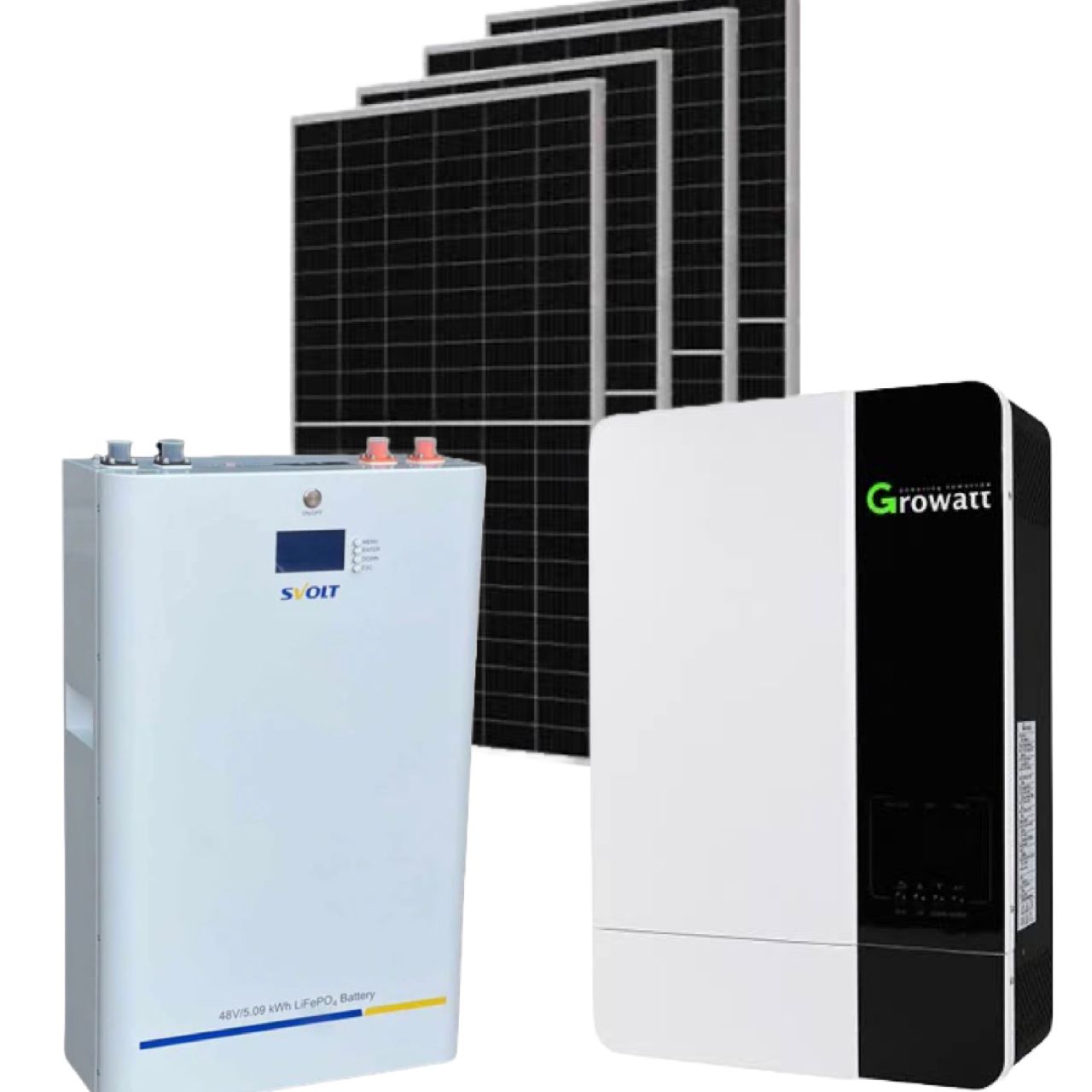

Growatt 5kva 5000ES Inverter & 5.4kw Svolt Lithium battery with 4 x550w solar panels & installation kit
The complete energy package you’ve been waiting for – the Growatt 5kVA 5000ES Inverter & 5.4kWh SVolt Lithium Battery combined with high-efficiency 4 x 550W Solar Panels and a comprehensive Installation Kit. Whether you’re a DIY enthusiast or prefer professional installation, this combo deal has everything you need to harness the power of the sun and keep your home running smoothly.
Product Features
Growatt 5kVA 5000ES Inverter
- Integrated MPPT charger controller for maximum energy conversion.
- Equalization charging function for battery maintenance.
- Max PV input up to 450VDC to capture more sunlight.
- Choose between grid or solar input priority.
- Stay connected with WIFI/GPRS remote monitoring.
- Expand your system with parallel support for up to 6 inverters.
- PV & Grid Power combine to ensure a continuous power supply.
- Flexible schedule for battery charging and discharging.
Specifications:
- Model: SPF 5000 ES
- Battery voltage: 48VDC
- Compatible with Lithium or Lead-acid batteries
Inverter Output [AC]
- Rated Power: 5000W
- AC Voltage Regulation (Battery): 230VAC ± 5%
- Surge Power: 10000VA for 5 seconds
- Peak Efficiency: 93%
- Pure sine wave output for clean power
- Fast transfer time of 10ms – 20ms
Solar Charger
- Maximum PV Array Power: 6000W
- MPPT Range @ Operating Voltage: 120VDC – 430VDC
- Maximum PV Array Open Circuit Voltage: 450VDC
- Maximum Solar Charge Current: 100A
AC Charger
- AC Charge Current: 80A
- AC Input Voltage: 230VAC
- Selectable Voltage Range: 230VAC
- Auto-sensing frequency range: 50Hz/60Hz
Physical
- IP20 protection degree
- Compact dimensions: 330 x 485 x 135mm
- Lightweight design: 12 kg
SVOLT 48V 106Ah 5.4kWh Lithium Battery
- A-Grade Cell Technology for superior performance and reliability.
- Maintenance-free and environmentally friendly.
- Suitable for various applications, including solar energy storage.
- Built-in Battery Management System (BMS) for safety.
- High energy density: 5427.2Wh
- Long cycle life: >4000 Cycles
- Wide operating temperature range: -20°C to 65°C
LVTOPSUN 550W Solar Panels
- Brand: LVTOPSUN
- Model Number: LVTS-144M(182MM)
- High cell efficiency: 21.2%
- Certified with CE, TUV, ISO, CQC, and CNAS
- Reliable and durable for long-term use
Solar Panel AC Installation & Mounting Kit
- Includes essential components for installing the solar panels.
- Easy and secure installation with quality rails, cables, and hooks.
- Combiner box for efficient cable management.
- Battery cables and fuse holder included for safety.
Warranty: 5 years
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
