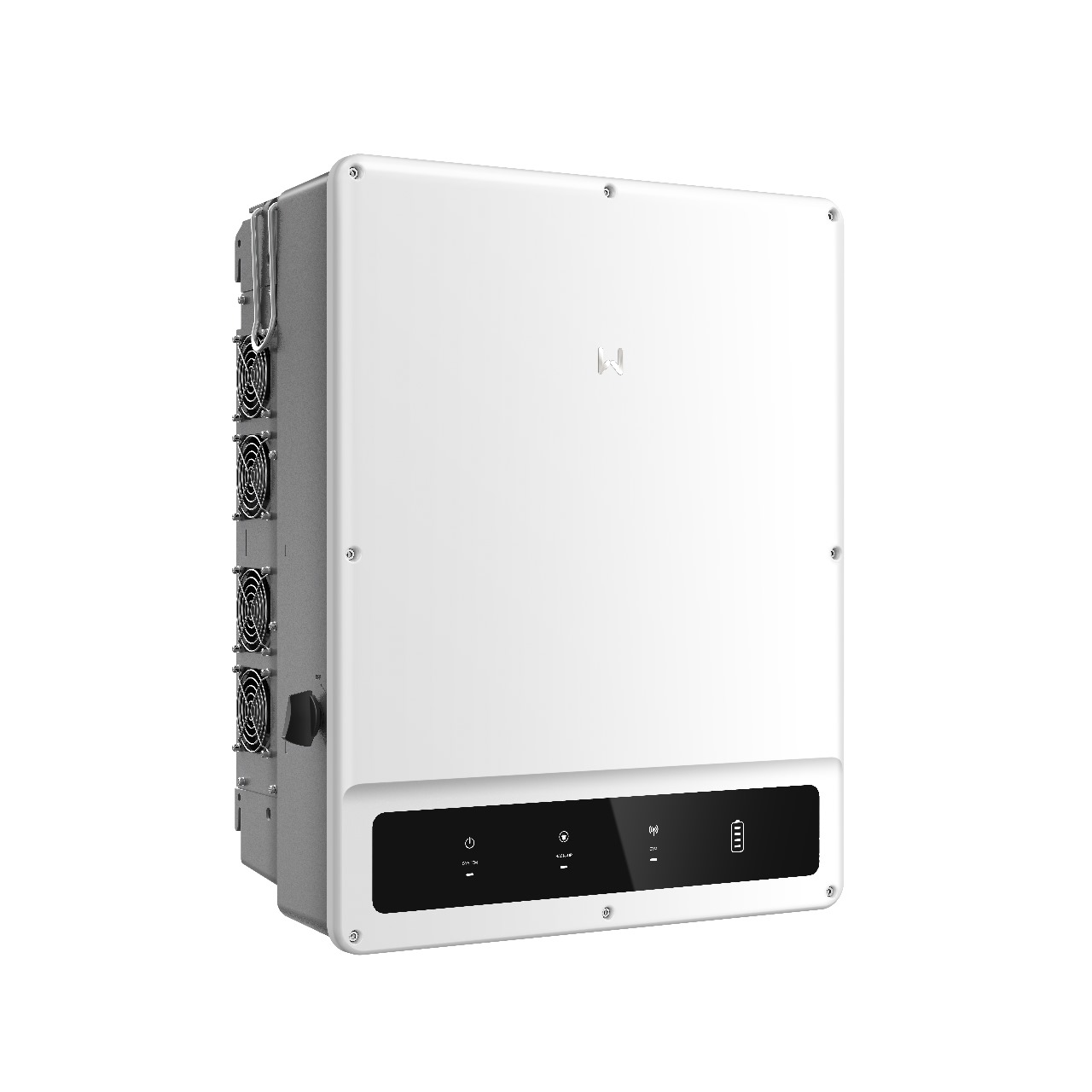

The GoodWe 50kW Hybrid Inverter (ET Series) is a robust three-phase inverter designed for commercial and industrial applications. This inverter seamlessly integrates solar energy generation, battery storage, and grid power, offering a reliable and efficient solution for businesses seeking energy independence and backup power capabilities.
Specifications:
- Model: GW50K-ETC
- Rated Output Power: 50,000 VA
- Maximum Output Power: 50,000 VA
- Battery Voltage Range: 40–60 V
- Maximum Continuous Charging/Discharging Current: 200 A
- Number of MPPTs: 1
- Maximum PV Input Voltage: 1,100 V
- MPPT Operating Voltage Range: 200–865 V
- Start-up Voltage: 200 V
- Nominal Input Voltage: 620 V
- Maximum PV Input Power: 65,000 W
- Nominal Output Voltage: 400 V
- Nominal Output Frequency: 50/60 Hz
- Maximum Output Current: 159.5 A
- Maximum Efficiency: 97.6%
- European Efficiency: 97.3%
- Battery-to-AC Efficiency: 97.2%
- MPPT Efficiency: 99.9%
- Operating Temperature Range: -20°C to +60°C (derating above 45°C)
- Ingress Protection Rating: IP20
- Cooling Method: Smart Fan Cooling
- Weight: Approximately 129 kg
- Dimensions (W × H × D): 750 mm × 1360 mm × 585 mm
- Mounting Method: Ground-mounted
- Communication Interfaces: RS485, Wi-Fi, LAN
- User Interface: LED, LCD, WLAN + App
Product Features:
- Single MPPT Design: Optimizes energy harvesting from solar panels, especially beneficial for installations with partial shading or varying orientations.
- UPS-Level Backup: Provides uninterrupted power with a backup switching time of less than 10 milliseconds, ensuring critical loads remain powered during grid outages.
- Generator Integration: Supports generator input, allowing for energy storage from generator-generated power.
- High DC Oversizing: Allows up to 200% DC input oversizing, enhancing energy yield during peak sunlight hours.
- Safety Features: Includes optional Arc Fault Circuit Interrupter (AFCI), PV reverse polarity protection, and surge protection to ensure system safety.
- Smart Load Control: Enables optimized energy usage and maximizes efficiency effortlessly.
