The main difference between PWM and MPPT charge control devices is that the MPPT devices are more efficient. MPPT charge control devices have 30 % more efficient in charge efficiency according to PWM type. Panel voltage and battery voltage should be matched in PWM systems.

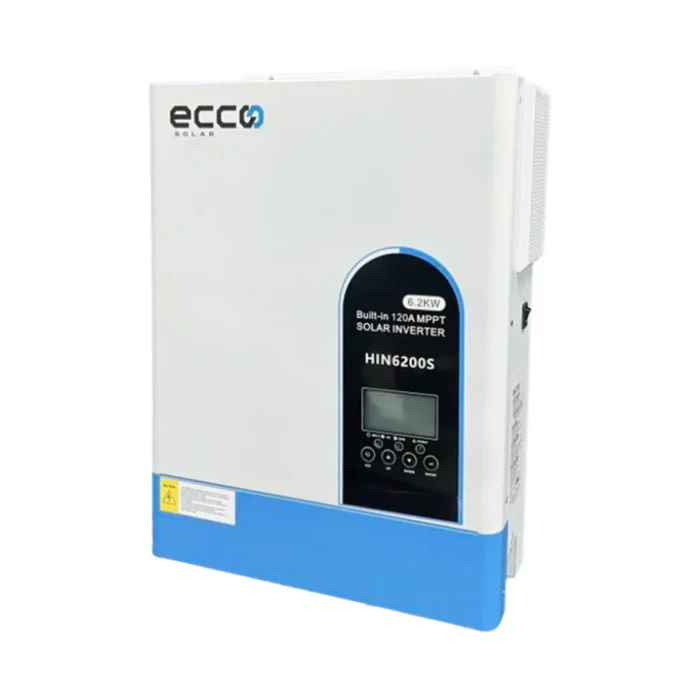

Features:
- Dual output for smart load management
- Lithium battery activation function by PV or Utility – Compatible work with LiFePO4 battery via RS485 –
- PV Input 500 Vdc Max
- Built-in MPPT 120A
- Capable to work without battery
- Detachable dust cover for harsh environment
- Wi-Fi remote monitoring optional
- Support multiple output priority: UTL, SOL, SBU, SUB – EQ function to optimize battery performance and extend lifecycle
Specifications:
- Rated Power: 6200VA/6200W
- DC Input: 48VDC, 135A
- AC Output: 230VAC, 50/50H2, 27A, 10
- AC Charger Mode:
- AC input: 230VAC, 50/60₽z. 40A, 1Ф DC Output: 54VDC
- Max Charge Curtent(AC): 80A, Default 304
- Max. Charge Current(PV+AC): 120A
- AC Output: 230VAC, 50/80Hz, 27A, 1Ф
- Solar Charger Mode:
- Max. PV Array Power: 6500W
- Min. Solar Voltage: 60VDC
- Max. Solar Voltage(VOC): 500VDC
- Max Solar Current: 27A
- Max. MPPT Charge Current: 1204
