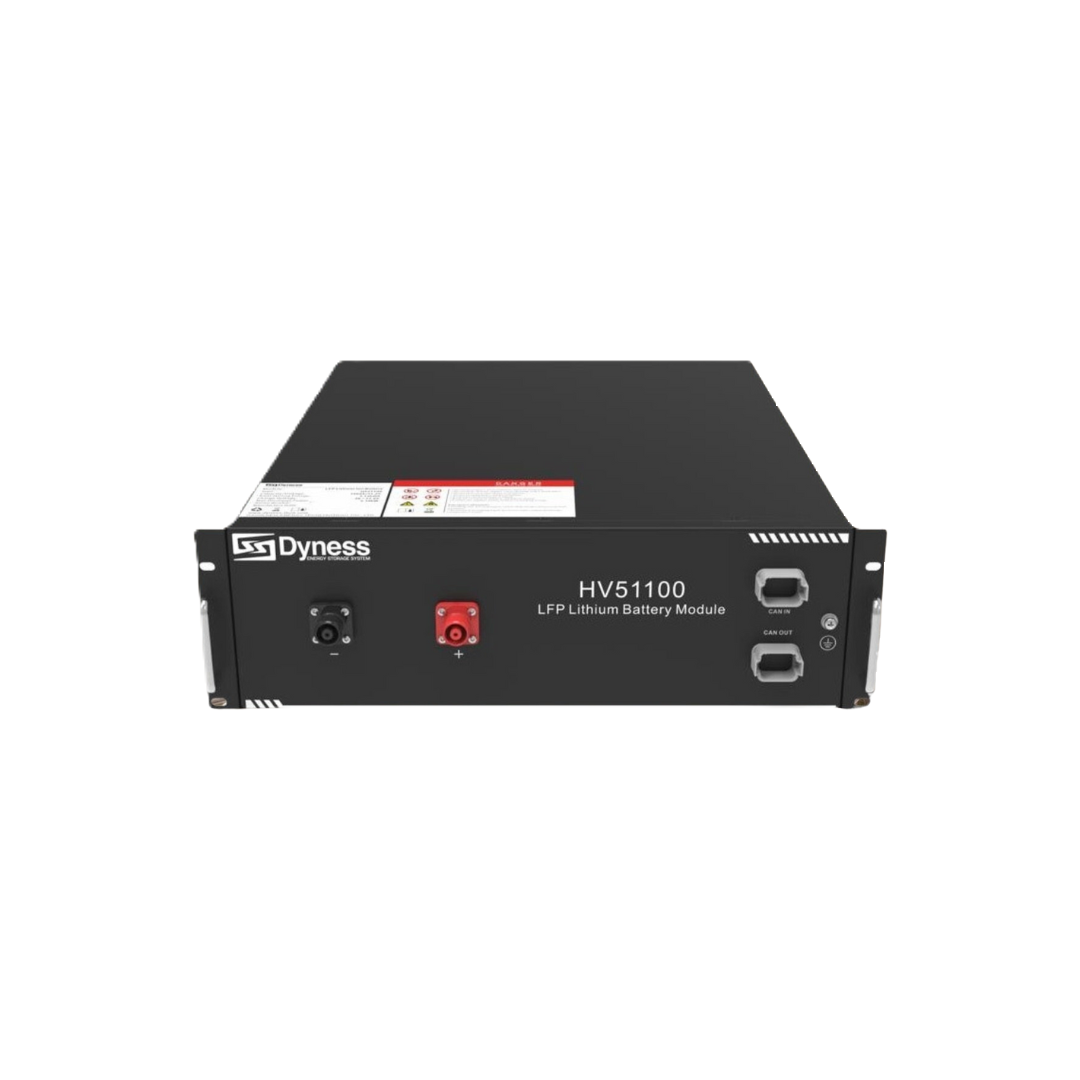

Introducing the Dyness – HV51100 HV Battery (Up to 16 units in series). With a design life of over 10 years and a cycle life exceeding 6000 cycles, you can count on this battery to provide consistent power for years to come, offering a high return on your investment.
Specifications:
- Model: High Voltage HV51100
- Cell Technology: Li-Ion (LFP)
- Nominal Battery Energy: 5.12KWH
- Nominal Capacity: 100Ah
- Nominal Voltage: 51.2VDC
- Battery Module Charge Voltage: 57.6VDC
- Battery Module Charge Current: 60A
- Battery Module Discharge Current: 60A
- Charging Temperature: 0°C to 55°C
- Discharging Temperature: -10°C to 55°C
- Communication: CAN
- Design Life: 10+ Years
- Cycle Life: >6000 Cycles
- Ingress Protection: IP20
- Expansion: 15 Units in Series
- Certification: UN38.3 / ICE62619
- Rack System Control Unit: Must Use BDU100
Warranty:
10 Years T’s & C’s Apply.
