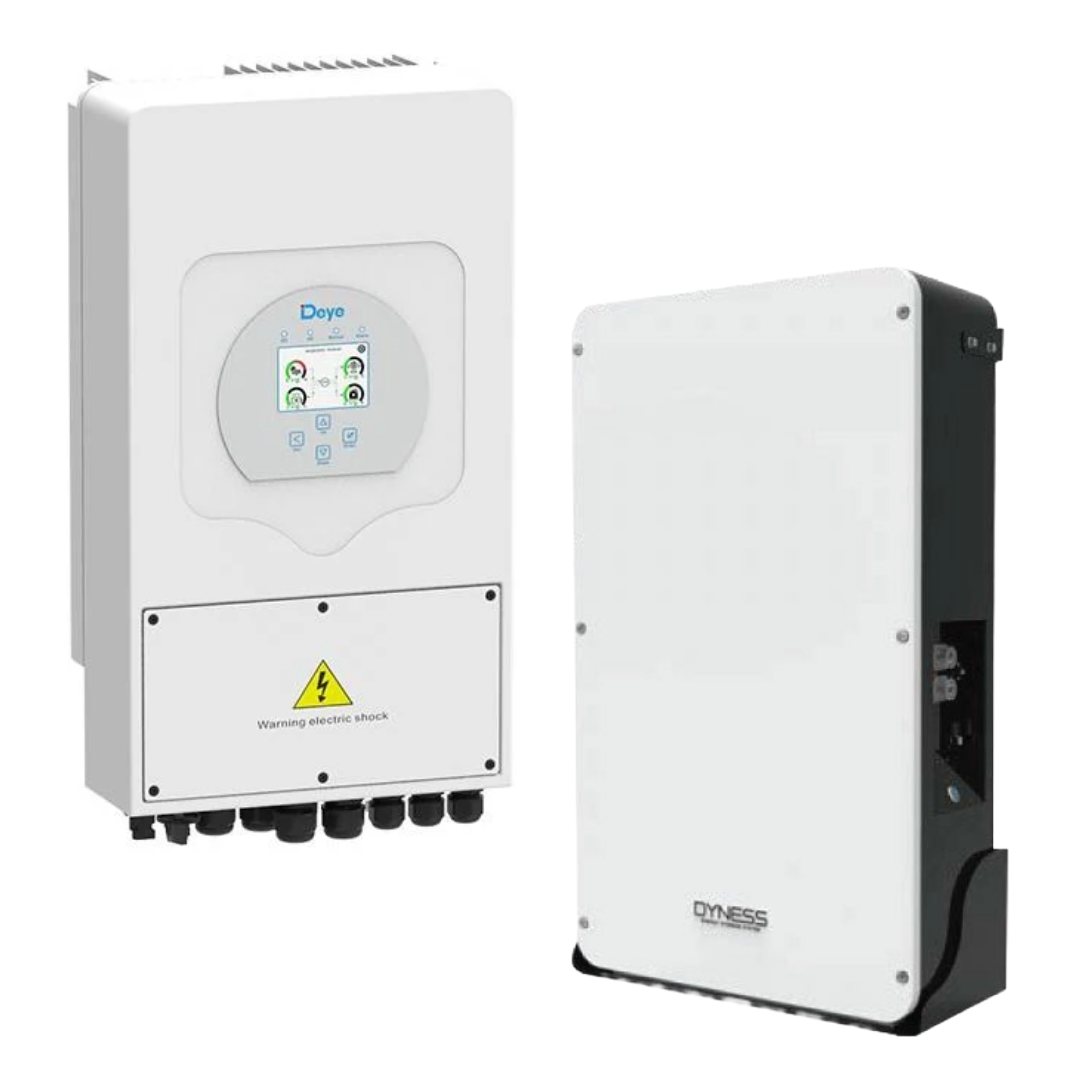

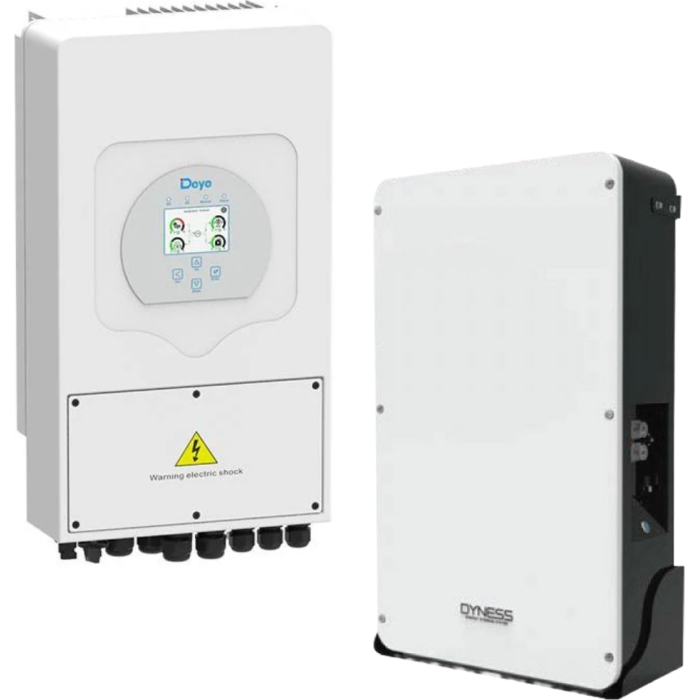

Deye 8Kw Single Phase Hybrid Inverter & Dyness Powerbox Pro 10.24kWh Lithium Battery
This Combo Consists of the following:
- 1 x 8kva Deye Inverter
- 1 x 10.2kw Dyness Lithium Battery
Deye 8Kw Single Phase Hybrid Inverter
Safety and protection are paramount. Integrated PV input lightning protection, anti-islanding protection, and various other safeguards ensure a worry-free experience. The Deye inverter efficiency is unmatched, with a maximum efficiency of 97.60% and Euro efficiency of 97.00%. Its sleek, wall-mounted design and IP65 protection degree make it suitable for various installations.
And let’s not forget connectivity – a complimentary Wi-Fi module is included with every 8KW Deye Inverter. Monitor your energy production and consumption in real-time, right from your fingertips. Take charge of your energy future with the Deye 8KW Single Phase Hybrid Inverter – because energy independence is not just a dream; it’s a choice you can make today.
Specifications:
- Power: 8KW (8000W) pure sine wave inverter.
- Battery Compatibility: Lead-acid or Lithium-ion batteries.
- Battery Voltage Range: 40-60V.
- Charging Current: Max. 190A, Discharging Current: Max. 190A.
- MPPT Technology: Two MPPT trackers with a range of 125V-425V.
- PV Input Power: Max. 10400W, PV Input Voltage: 100V~500V.
- AC Output Power: Rated 8000W, Max. 8800W.
- Efficiency: Max. 97.60% efficiency, 99.90% MPPT efficiency.
- Safety Features: Integrated lightning protection, anti-islanding protection, and more.
- Communication: RS485 and CAN interfaces for easy BMS communication.
- Dimensions: 420W x 670H x 233D mm, Weight: 32kg.
- Operating Temperature Range: -25°C to 60°C (derating above 45°C).
- Noise Emission: Less than 30 dB.
- Certifications: Complies with various safety and grid regulations.
- Installation: Wall-mounted design, IP65 protection.
- Warranty: 5 years
Dyness Powerbox Pro 10.24kWh Lithium Battery
The Dyness Power Depot 10.24kWh lithium battery is designed to look good with great performance.
Product Features
- Complies with European ROHS, Certified SGS, employs non-toxic, non-pollution environment-friendly battery.
- Anode materials are lithium iron phosphate (LiFePO4), high safety performance with longer life span.
- Equipped with BMS (battery management system) mode with better performance, possesses protection function like over
- discharge, over-charge, over-current, abnormal temperature.
- Self-management on charging and discharging, Single core balancing function.
- Intelligent design configures integrated inspection module.
- Flexible configurations allow parallel of multi battery for longer standby time.
- Self-ventilation with lower system noise.
- Less battery self-discharge, then recharging period can be up to 10 months during the storage.
- No memory effect so that battery can be charged and discharged shallowly.
- With wide range of temperature for working environment, -20℃ ~ +55 ℃, circulation span and discharging performance are well under high temperature.
- Less volume, lighter weight, seal grade up to IP65 embedding design for easier installation and maintenance.
5.-Dyness-Powerbox-Pro-Datesheet1-2023
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
