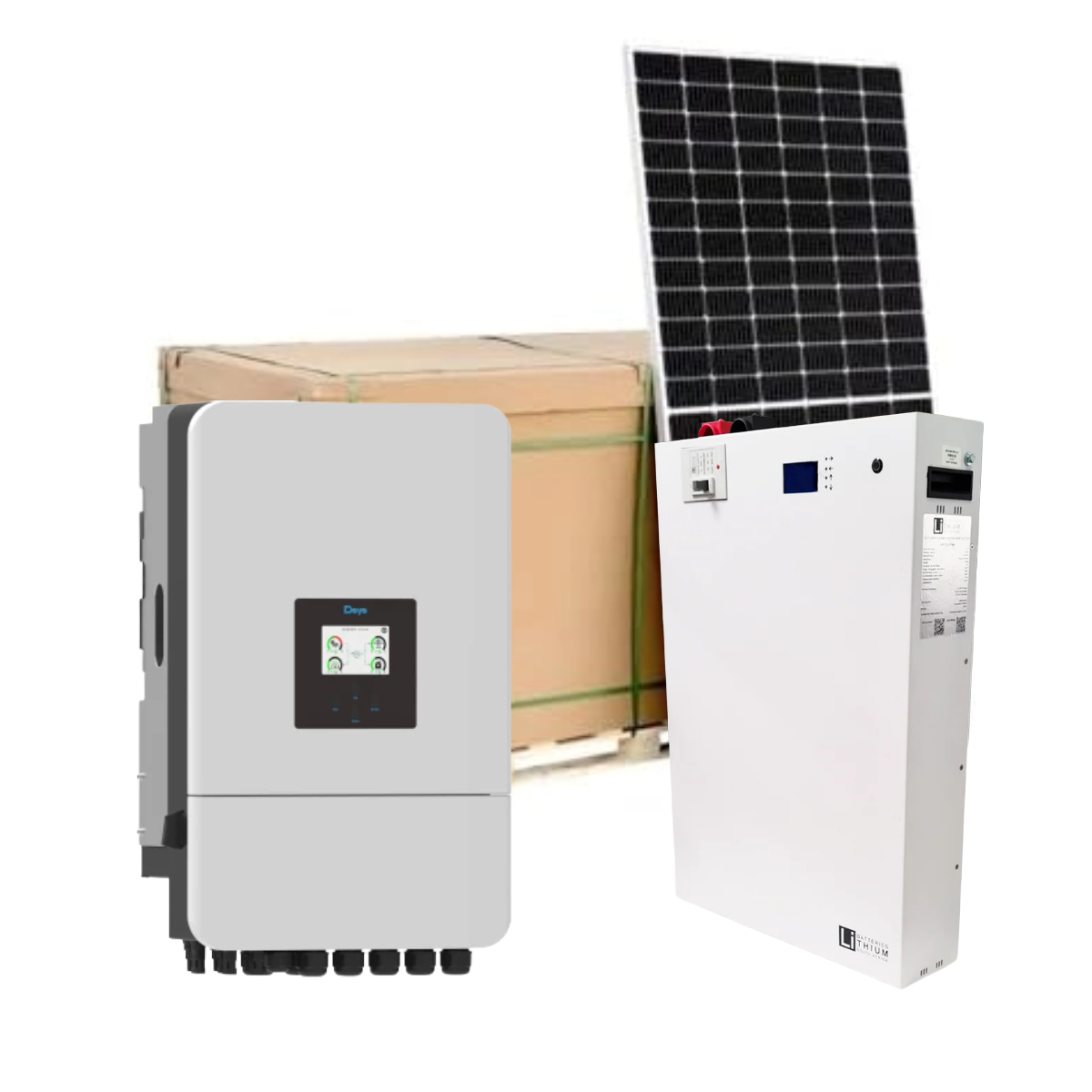

This Combo Consists of the following:
- 1 x 8kw Deye Hybrid Single Phase inverter
- 1 x LBSA 10.6 kWh 51.2v 208Ah LiFePO4 Wall Mount Solar UPS Battery – White
- 12 x 585w JA solar panels
- 8 x 3.5m Rails
- 30m x 6mm Red solar cable
- 30m x 6mm Black Solar cable
- 24 x solar panel roof hooks
- 20 x PV Mid Lock
- 8 x PV End Lock
- 2 x Combiner box 1in 1out
- 2m x 50mm Battery Cable set
- 1 x Main latch fuse holder
- 2 x 250A fuse
- 6 x Rail Extension
- 1 x AC Combiner Box
LBSA 10.6 kWh 51.2v 208Ah LiFePO4 Wall Mount Solar UPS Battery – White
Introducing the LBSA 10.6 kWh 51.2V 208Ah LiFePO4 Wall Mount Solar UPS Battery—a powerhouse of energy storage that combines cutting-edge technology with exceptional safety and reliability. This versatile battery is your gateway to efficient and eco-friendly power management for a wide range of applications. Available in: Black, White
Product Features
- Advanced Lithium Iron Phosphate (LiFePO4) Technology: The heart of this battery is a high-performance 3.2V 104Ah aluminum case prismatic cell, ensuring top-notch safety and an extended cycle life.
- Comprehensive Battery Management System (BMS): Safety is paramount, and our BMS ensures it. With over-discharge, over-charge, over-current, and high/low-temperature warning and protection functions, your battery remains secure.
- Precise Monitoring and Balancing: The BMS continuously monitors charge and discharge states, balancing current and voltage across each cell to optimize performance.
- Exceptional Discharge Performance: Operating within a wide temperature range from -20℃ to 50℃, this battery delivers outstanding discharge performance and cycle life, even in demanding conditions.
- Flexible Expansion: With the ability to connect up to 16 packs in parallel using 8 DIP switches, you can expand capacity and power to meet your evolving needs.
- 250A DC Circuit Breaker: Added safety with a 250A DC circuit breaker to protect your system.
Specifications:
- Nominal Voltage (V): 51.2V
- Nominal Capacity (Ah): 208Ah
- Nominal Power (kWh): 10.6 kWh
- Dimensions (mm): 750mm135mm520mm
- Weight (Kg): 84KG
- Discharge Cut-off Voltage (V): 44V
- Charge Voltage (Bulk+Absorption) (V): 56.2V
- Max Discharge Current (A): 200A
- Recommended Charge Current: 100A
- Communication Interface: CAN
- Configuration: 16S: 2P
- Working Temperature: 0～50℃(Charge), -20～50℃(Discharge), -20～55℃(Storage)
- Cell Chemistry: Lithium iron phosphate (LiFePO4)
- Cycle Life: ≥80% capacity state after 4800 cycles at 0.5C, 25℃, 100% DOD
- IP Level: IP 20
- CAN Bus Comms: Compatible with Victron, Growatt, Sunsynk, DEYE, Luxpower, and more.
Deye 8Kw Hybrid Inverter
Smart Monitoring Platform
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs. Setting parameters and FW update remotely, which makes PV plant O&M easier.
- Colorful touch LCD, IP65 protection degree
-
AC couple to retrofifit existing solar system
-
Max. 16 pcs parallel for on-grid and off-gridoperation; Support multiple batteries parallel
-
Max. charging/discharging current of 190A
-
6 time periods for battery charging/discharging
-
Support storing energy from diesel generator
Battery Input Data
- Battery Type: Lead-acid or Li-lon
- Battery Voltage Range (V): 40-60V
- Max. Charging Current (A): 190A
- Max. Discharging Current (A): 190A
- Charging Strategy for Li-ion Battery: Self-adaption to BMS
- External Temperature Sensor: Optional
- Number of battery input: 1
