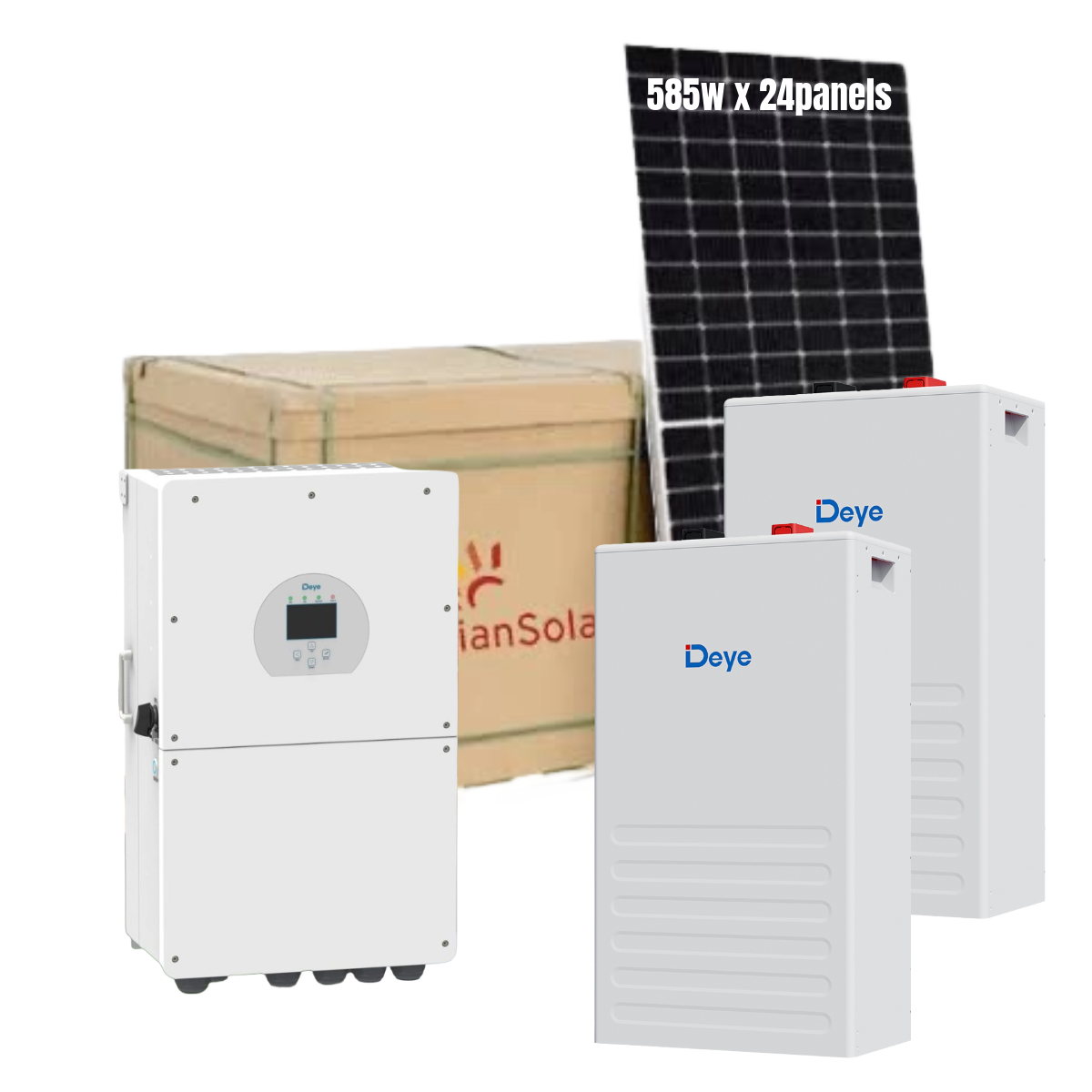

This Combo Consists of the following:
- 1 x 16kw Deye Hybrid Single Phase inverter
- 2 x 16kwh Deye Lithium battery
- 24 x 585w Canadian solar panels
- 16 x 3.5m Rails
- 100m x 6mm Red solar cable
- 100m x 6mm Black Solar cable
- 48 x solar panel roof hooks
- 40 x PV Mid Lock
- 16 x PV End Lock
- 3 x Combiner box 1in 1out
- 4m x 50mm Battery Cable set
- 1 x Main latch fuse holder
- 2 x 250A fuse
- 12 x Rail Extension
- 1 x AC Combiner Box
16kwh Deye Lithium battery
- High Capacity: 16 kWh nominal energy & 314 Ah capacity with LiFePO₄ chemistry
- Scalable Power: Expandable up to 32 units in parallel for increased capacity
- Superior Durability: Over 6000 cycle life with 90% recommended DoD
- Advanced Protection: Integrated BMS with active fuse for enhanced safety
- Robust Performance: Reliable operation from -20°C to 55°C
- Easy Monitoring: Local battery and remote ESS monitoring via app/interfaces
- Flexible Installation: Wall, floor, or stack-mounted options
Key Features & Benefits:
- Comprehensive Protection: Equipped with an advanced Battery Management System (BMS) and active fuse, it ensures the safety and stability of the energy storage process, guarding against potential risks.
- Superior Performance: Supports a maximum 1C charge and 1.2C discharge. Featuring GaN MOSFETs, it achieves a 50% reduction in energy loss and demonstrates strong resistance to high temperatures, ensuring efficient operation even in tough conditions.
- Optimized Energy Density: The integrated PACK design cuts down line loss significantly, boosting energy density and making the most of every unit of energy stored.
- Flexible Expansion: Allows for parallel connection of up to 32 units, enabling users to scale up the energy storage capacity as their requirements grow.
- Easy Maintenance: Comes with auto – networking functionality. It offers a local monitoring mode for individual batteries and a remote monitoring mode for the entire Energy Storage System (ESS), simplifying upkeep and management.
- Reliable Durability: Operates reliably within a temperature range of – 20°C to 55°C relying on natural cooling, ensuring consistent performance in various environmental conditions.
The SE – F16 is a standout energy storage solution from Deye, engineered to meet diverse energy needs with excellence.
| Parameter | Value |
|---|---|
| Model | SE-F16 |
| Battery Chemistry | LiFePO₄ |
| Nominal Capacity | 314 Ah |
| Nominal Energy | 16 kWh |
| Nominal Voltage | 51.2 V |
| Operating Voltage | 44.8 V – 57.6 V |
| Max. Cont. Charge Current | 160 A |
| Max. Cont. Discharge Current | 230 A |
| Peak Discharge Current | 280 A (10 sec) |
| Dimensions (W×H×D) | 400 × 708 × 233 mm (Without hanging board) |
| Weight Approximate | 109 kg |
| Recommended DoD | 90% |
| Cycle Life | >6000 cycles (25°C±2°C, 70%EOL) |
| IP Rating | IP21 |
| Operating Temperature | Charge: 0~55°C / Discharge: -20°C~55°C |
| Communication | CAN2.0, RS485, Bluetooth+APP |
| Scalability | Max. 32 units in parallel |
| Warranty | 5 years / 10 years (extended) |
| Certifications | UN38.3, MSDS |
Deye 16Kw Hybrid Inverter Single phase
General Data
• Maximum Efficiency: 97.60%
• MPPT Efficiency: 99.90%
• Supports Paralleling (16 Units)
• Generator Compatible
• Mounting: Wall Mount
Battery Data
• Battery Type: Lead-Acid or Li-Ion
• Battery Voltage Range: 40VDC~60VDC
• Maximum Charging Current: 290A
• Maximum Discharging Current: 290A
• UPS Power: 12000W
• External Temperature Sensor: Yes
• Charging Curve: 3 Stages / Equalization
• Charging Strategy for Li-Ion Battery: Self adaption to BMS
PV String Input Data
• Maximum DC Input Power: 20800W
• Maximum DC Input Voltage: 500VDC
• Startup Voltage: 125VDC
• MPPT Voltage Range: 150VDC-425VDC
• Rated DC Input Voltage: 370VDC
• PV Input Current: 26A + 26A + 26A
• Maximum PV (Isc): 44A + 44A + 44A
• No of MPP Trackers: 3
• Strings per MPP Tracker: 2
AC Output Data
• Rated AC Output Power: 16000W
• AC Output Rated Current: 69.6A
• Maximum Continuous AC Passthrough: 100A
• Peak Power (Off Grid): 2 time of rated Power, 5 S
• Power Factor: 0.8 Leading to 0.8 Lagging
• Output Frequency and Voltage: 50/60Hz; L/N/PE 220/230VAC (Single Phase)
• Grid Type: Single Phase
Environment Limit
• Operating Temperature Range: -45°C to 60°C
• Cooling: Smart Cooling (<30 dB)
• Communication: RS485 / CAN
