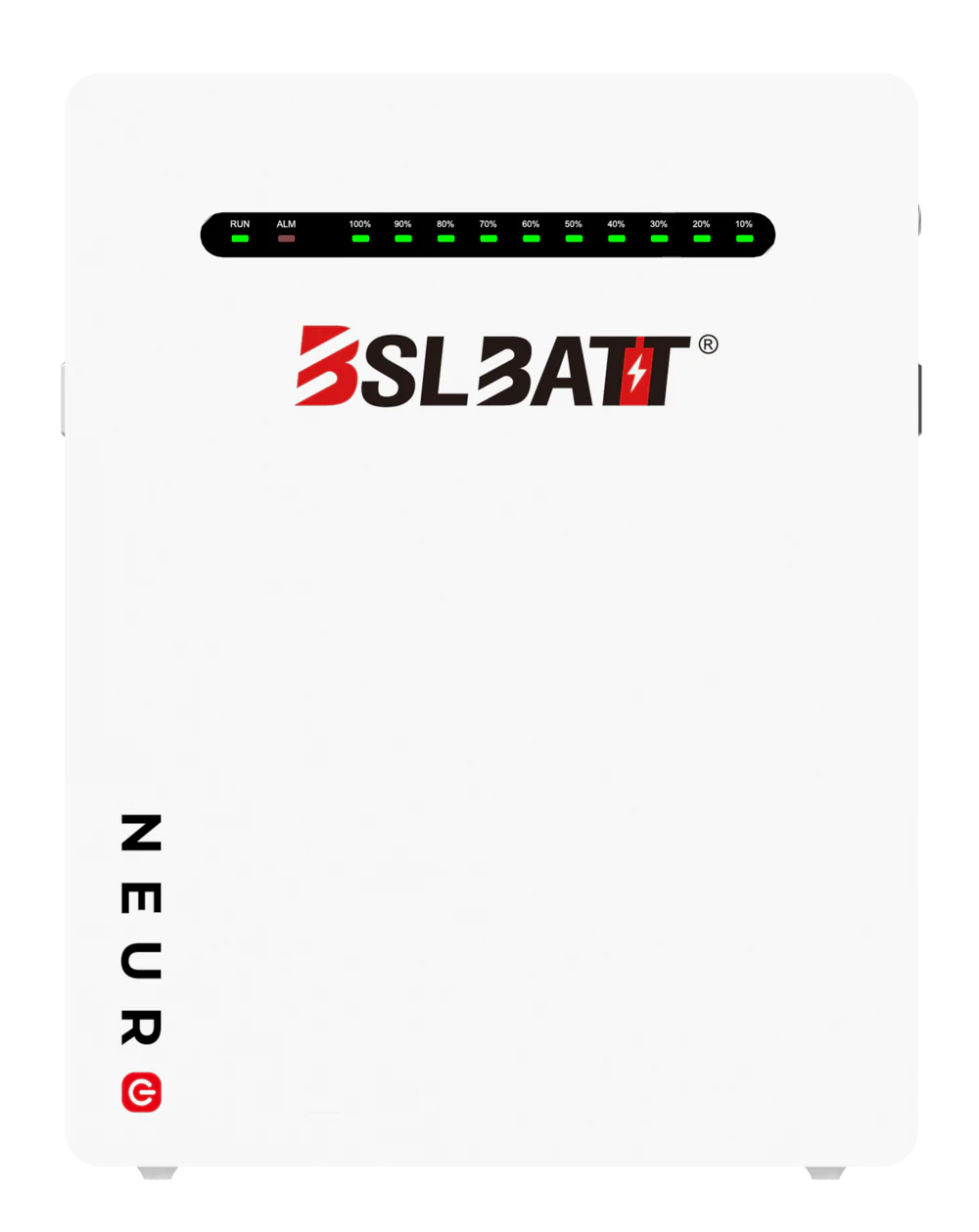

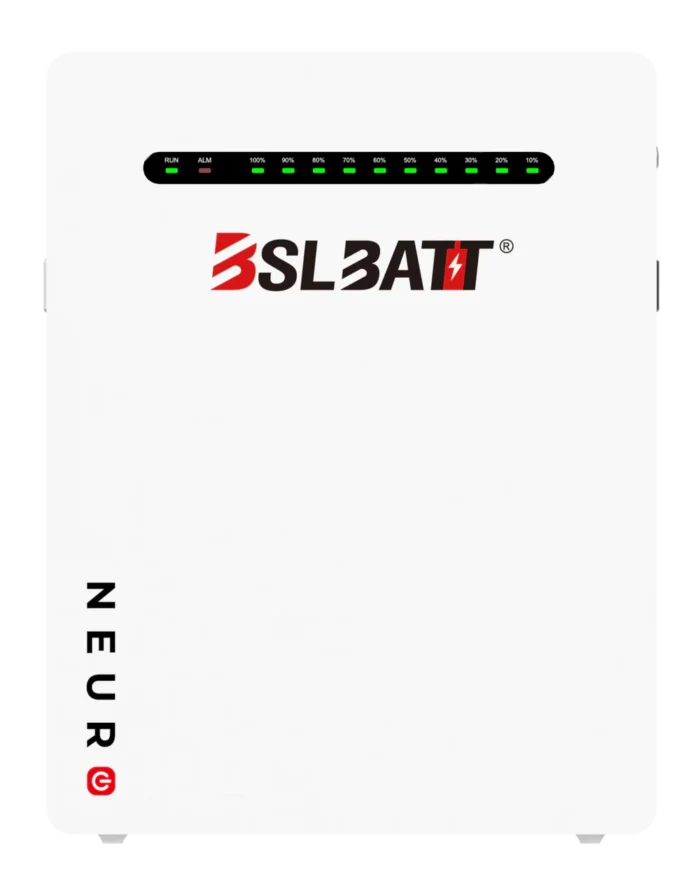

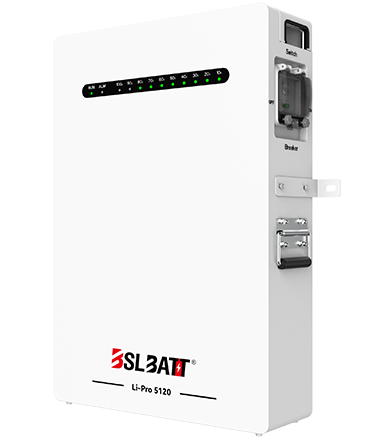

BSL Battery Neuro 5 – 51.2V 100ah Wall Mount (5.12kWh)
The BSLBATT Li-Pro 5120 is a compact 5.12kWh LiFePO₄ wall-mounted residential battery designed for hybrid and backup energy storage systems.
Built using a 16S1P LFP architecture with a 100Ah cell pack, it offers long cycle life, advanced BMS protection, and IP65 outdoor-capable construction.
Ideal for small to medium home installations requiring safe, stable, and efficient daily-cycle energy storage.
Product Features
- 5.12kWh LiFePO₄ home storage system.
- 100Ah LFP cells, 16S1P configuration.
- IP65 protection for indoor/outdoor installation.
- Smart BMS with CAN & RS485 communication.

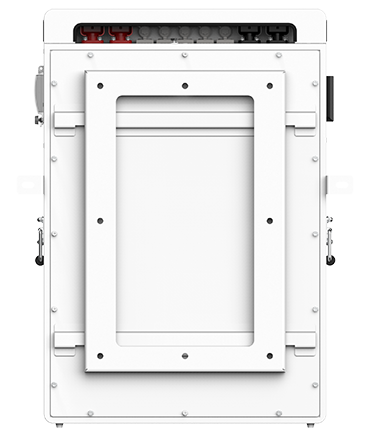

- Wall-mount or floor-mount installation options.
Specifications
- Model: Li-Pro 5120
- Nominal Voltage: 51.2V
- Rated Capacity: 100Ah
- Energy: 5.12kWh
- Cell Type: LFP 3.2V 100Ah
- Pack Configuration: 16S1P
- Charging Voltage: 55V
- Float Charge Voltage: 54.5V
- Discharge Cut-off Voltage: 47V
- Rated Current: 40A
- Max Charge Current: 80A
- Max Discharge Current: 100A
- Operating Temperature: Charge 0~55°C / Discharge –20~55°C
- Protection Level: IP65
- Dimensions: 660 × 450 × 145 mm
- Weight: 54 ±3%
- Communication: CAN / RS485 / RS232
- Parallel Support: Up to 15 units
What’s in the Box
- 1 × Li-Pro 5120 Battery Pack
- 1 × Wall-mount Bracket
- 1 × Power & Communication Cable Set
- M8×50 mm Expansion Bolts (x10)
- User Manual
System Overview
- Compatible with many CAN/RS485 inverters (Pylon, Deye, Growatt, Victron, Luxpower, Goodwe, Solis, etc.).
- Supports PV self-consumption, peak shaving, and backup power.
- Ideal for residential ESS installations.
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null and void.
