Name: 8kva Sunsynk Hybrid Inverter & 2 x 5.1kw Greenrich UP5000 batteries with 12 x 560w Solar Panels incl mounting kit - Invert Solar
Price: 92500.00 ZAR
Availability: InStock

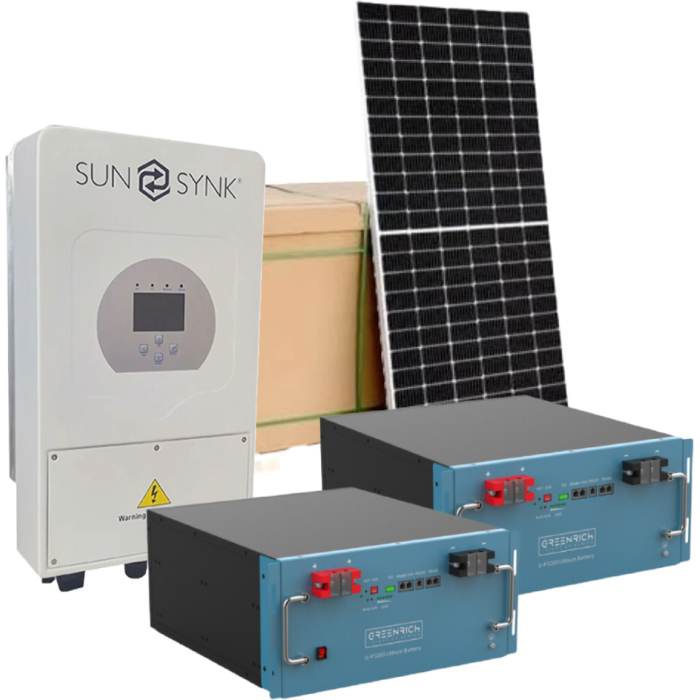

8kva Sunsynk Hybrid Inverter & 2 x 5.1kw Greenrich UP5000 batteries with 12 x 560w Solar Panels incl mounting kit

This Combo Consists of the following:

1 x Sunsynk 8kva Hybrid Inverter
2 x Greenrich UP5000 5.1kw Lithium battery
12 x 560w solar panels
8 x 3.5m Rails
30m x 6mm Red solar cable
30m x 6mm Black Solar cable
24 x solar panel roof hooks
20 x PV Mid Lock
8 x PV End Lock
2 x Combiner box 1in 1out
3 x Battery Cable set
1 x latch fuse holder
2 x 125A fuse
4 x Rail Extension
1 x AC Combiner Box
2 x Battery Wall mount Bracket

Higer yields

Improve self-consumption ratio up to 80%, reducing your electricity bill.
DC/AC ratio up to 1.3, completely suitable for double-side PV modular.
Two MPPT design, Max. efficiency of 97.6%.

User-friendly

LCD Touch screen and buttons, easy operation.
Compatible with lithium-ion battery and lead acid battery.
Web browser and mobile App monitoring supported.

Reliable

PV lighting protection, Anti-islanding protection, Leakage current protection etc.
Support store energy from DG when needed, ensure the system working within 7*24H.
IP65 protection degree, adapt to indoor and outdoor using.
Automatically switch from on-grid to off-grid mode within 5ms.
Zero exporting function, fast reaction within 200ms in zero export mode.

Smart

Programmable charging and discharging schedule.
Both wind turbines and solar panels can be connected as DC input power.
Max. 16 units can be paralleled for higher system power.
Retrofitting of existing solar system to energy storage system.

Datasheet:

Sunsynk-8kW-Data-Sheet

Greenrich UP5000 5kWh LFP 1.5C Battery

This battery is ideal for those who need a reliable power source capable of handling sudden high loads without faltering. It is particularly valuable during periods of high demand or when regular power sources are unavailable, ensuring that your essential appliances and systems continue to run smoothly.

The Greenrich 5kWh LFP 1.5C Battery is perfect for anyone looking to enhance their energy storage capability with a high-performance battery that offers both functionality and security.

Greenrich 5kWh UP5000 Battery Warranty

10-Year Warranty: Ensures long-term reliability and peace of mind.
Battery Life: Over 6000 cycles.

Recommended Usage for Optimal Battery Life:

Charging: For optimal battery life, charge at 43A (0.5C @ 25℃).
Discharging: For optimal battery life, discharge at 43A (0.5C @ 25℃).
Peak Current: Excludes repeated short-duration (less than 100ms) current patterns.

Datasheet:

Greenrich-51.2V-96.6Ah-Datasheet

560w Solar Panels

Offers better temperature-dependent performance and enhanced tolerance for mechanical loading.

Features
-Higher power output
-Less shading
-Lower resistive losses
-Lower LCOE

NB: (Courier for panels are at your own risk, should a solar panel get damaged during shipping, Invert Solar will not be held liable for the replacement of the solar panel)

Warranties:

All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
