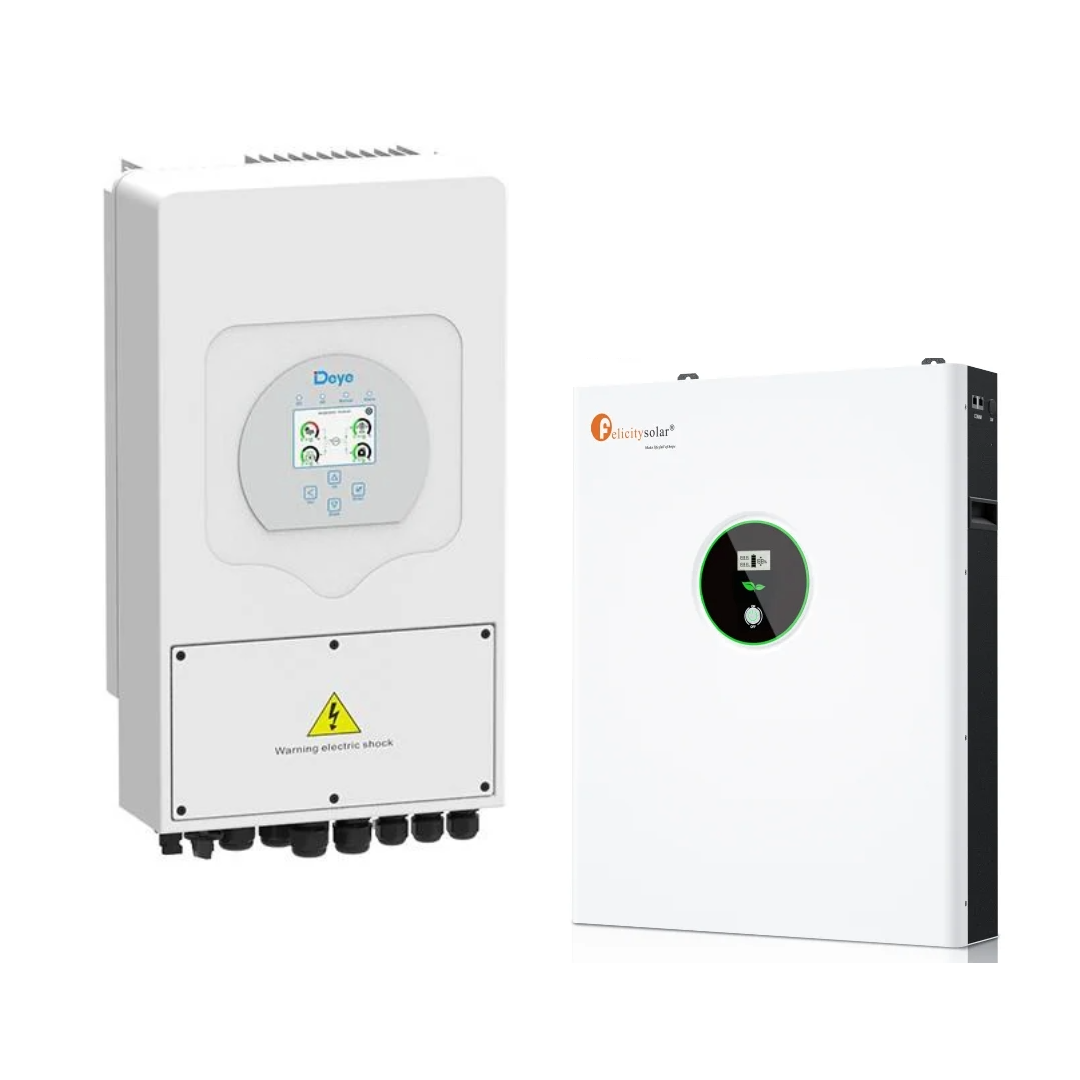

8kva Deye Inverter & 10.2kwh Felicity Battery

This Combo Consists of the following:

1 x 8kva Deye Inverter
1 x 10.2kw Felicity Lithium Battery

Deye 8kW Hybrid Inverter

The 5kW’s bigger brother is perfect for the larger household, also a popular choice for commercial application. It does it all, it Blends AC & DC, Scalable, Affordable, Robust and you can add a huge array size.

Features:

• Colorful Touch LCD Screen
• Parallel up to 16 Units
• Max Charging/Discharging Current of 190A
• Compact & Stylish
• Safe and Easy Installation
• 5-year warranty
• Set system parameters remotely with FREE SOLARMAN PRO App

Higher Yields:

•  Improve self-consumption ratio up to 80%
• Reducing your electricity bill DC/AC ratio up to 1.3
• Completely suitable for double-side PV modular Two MPPT design
• Maximum efficiency of 97.6%

User Friendly:

• LCD Touch screen and buttons
• Easy operation Compatible with a lithium-ion battery and lead-acid battery
• Web browser and mobile App monitoring supported

Reliable:

• PV lightning protection
• Anti-islanding protection
• Leakage current protection
• IP65 protection
• Automatically switch from Grid-Tied to Off-Grid mode within 5ms
• Zero export function – prevents the system from feeding in to the grid.  NRS Approved
• Fast reaction time is within 200ms in zero export mode

Smart:

• Programmable charging and discharging schedule
• Both wind turbines and solar panels can be connected as DC input power
• 16 units can be paralleled for higher system power
• Retrofitting of an existing solar system to an energy storage system

Deye 8kw inverterSUN8KSG01LP1

Felicity LiFePO4 Lithium Battery 10 kwh with LCD Display

Product Features:

The Felicity LiFePO4 Lithium Battery 10kwh with LCD Display is designed to optimize residential and commercial solar performance. The innovative LCD Display lithium battery offers high-density energy, along with a manufacturer 7-year warranty for extra peace of mind. This lithium-ion battery also includes a built-in Battery Management System (BMS) that further improves functionality and safety. This solar battery pack’s design is perfect for homes, residential apartments and commercial spaces, and it can be easily expanded by connecting in parallel with extra battery packs.

Specifications:

•  Model: LPBA48200
• Usable Energy: 10KWh
• Capacity: 200Ah
• Nominal Voltage: 51.2V
• Voltage Range: 48-57.6V
• Max Charge & Discharge Current: 150A@120S
• Recommend Charge & Discharge Current: ≤120A
• Max Output Power: 7500W
• Recommend Output Power: ≤6000W
• Scalable: 1~12 in parallel
• Communication: CAN & RS485
• Working Temperature Range: Discharge:-20~ 60℃，Charge:0 ~ +55℃
• Compatible Inverters:
• Felicitysolar/Deye/Luxpower/Growatt/Voltronic/Sunsynk/Megarevo/Victron/SRNE/Solis/MPPsolar/Afore/SOFAR/CHISAGE ESS
• Cycle Life: ＞6,000 Cycle@ 80% DOD / 25℃ / 0.5C, 60%EOL.
• Net Weight: 70.5KG
• Gross Weight: 91KG
• Product Dimension: [W x D x H] 755*600*160mm
• Package Dimension: [W x D x H] 855*700*340mm.
• Warranty: 7years

LPBA48200 Datasheet

Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
