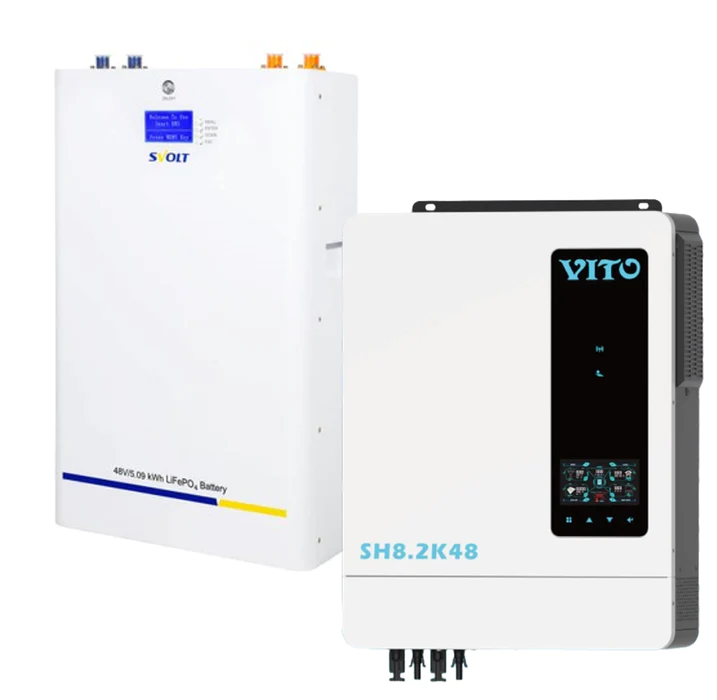

Hybrid Inverter 8.2KVA 8200W Watt MPPT Vito SH8.2K48

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Features
• Pure sine wave inverter
• Configurable input voltage range for home appliances and personal computers via LCD setting
• Configurable battery charging current based on applications via LCD setting
Configurable AC/Solar Charger priority via LCD setting
• Compatible to mains voltage or generator power
• Auto restart while AC is recovering
• Overload/ Over temperature/ short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function
• WIFI/GPRS (Optional)
• Can connect to lithium battery
3.2 Basic System Architecture
The following illustration shows basic application for this inverter/charger. It also includes following devices to have a complete running system:
• Generator or Utility.
• PV modules

PV INPUT:
Max. PV Array Open Circuit Voltage 500Vdc
PV Array MPPT Voltage Range 90Vdc~450Vdc

RGB Light
Battery Mode: Red Light
Utility Mode: Blue Light
PV Mode: Purple Light

GRID/AC OUTPUT:
Nominal Output Voltage 220/230/240Vac Feed-in Grid Voltage Range 195-253Vac Feed-in Gnd Frequency Range 49-51±1Hz Nominal Output Current: 15 7A Power Factor Range >0.99
Maximum Conversion Efficiency (DC/AC).97% Nominal Operating Frequency 50/60Hz

TWO LOAD OUTPUT POWER:

Full Load 8200W
Maximum Main Load 8200W
Maximum Second Load 2733W

SVOLT LiFePO4 5.09Kwh Lithium Battery 48V – 106Ah

With a LiFePO4 chemistry, the battery offers a nominal voltage of 48V and a capacity of 106Ah. Its compact dimensions of 688 x 447 x 211mm and weight of approximately 49.5Kg make it easy to mount. The battery incorporates a built-in Battery Management System (BMS) for enhanced safety and longevity.

Featuring high-power A-Grade cells, the SVOLT Lithium Battery ensures outstanding energy density of 5427 KWh and efficiency with a round trip efficiency of 99%. Its low self-discharge rate of less than 3% per month and cycle life of 6000 cycles at 80% depth of discharge (DOD) guarantee long-lasting performance.

The SVOLT Lithium Battery supports a maximum continuous discharge current of 100A, with a peak discharge current of 150A. It operates within a recommended charge voltage range of 43.2V to 58.4V and can be charged at temperatures between 20°C and 65°C. The battery’s storage temperature ranges from 0°C to 50°C.

Specifications :

• Energy: 5.09kWh
• Installation Type: Wall Mounted
• Battery type-Chemistry: LiFePO4
• Nominal Voltage: 48V
• Nominal Capacity: 106Ah
• Energy Density: 5427 KWh
• Dimensions (LxWxH): 688 x 447 x 211mm
• Weight (Approx.): 49.5Kg
• Terminal Type: M6
• Terminal Torque: 8.5NM
• Case Material: SPCC
• BMS build-in: Yes
• Internal Resistance: <30mΩ
• Efficiency – round trip: 99%
• Self Discharge per Month: <3%
• Max parallel connectors: 16Pcs
• Cycle life (0.2C, 25°C @ 80% DOD): 6000 Cycles
• Charge Temperature: 20°C to 65°C
• Storage Temperature: 0°C to 50°C
• Max Continuous Discharge Current: 100A
• Peak Discharge Current: 150A
• Warranty: 5 years

Warranties:

All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
