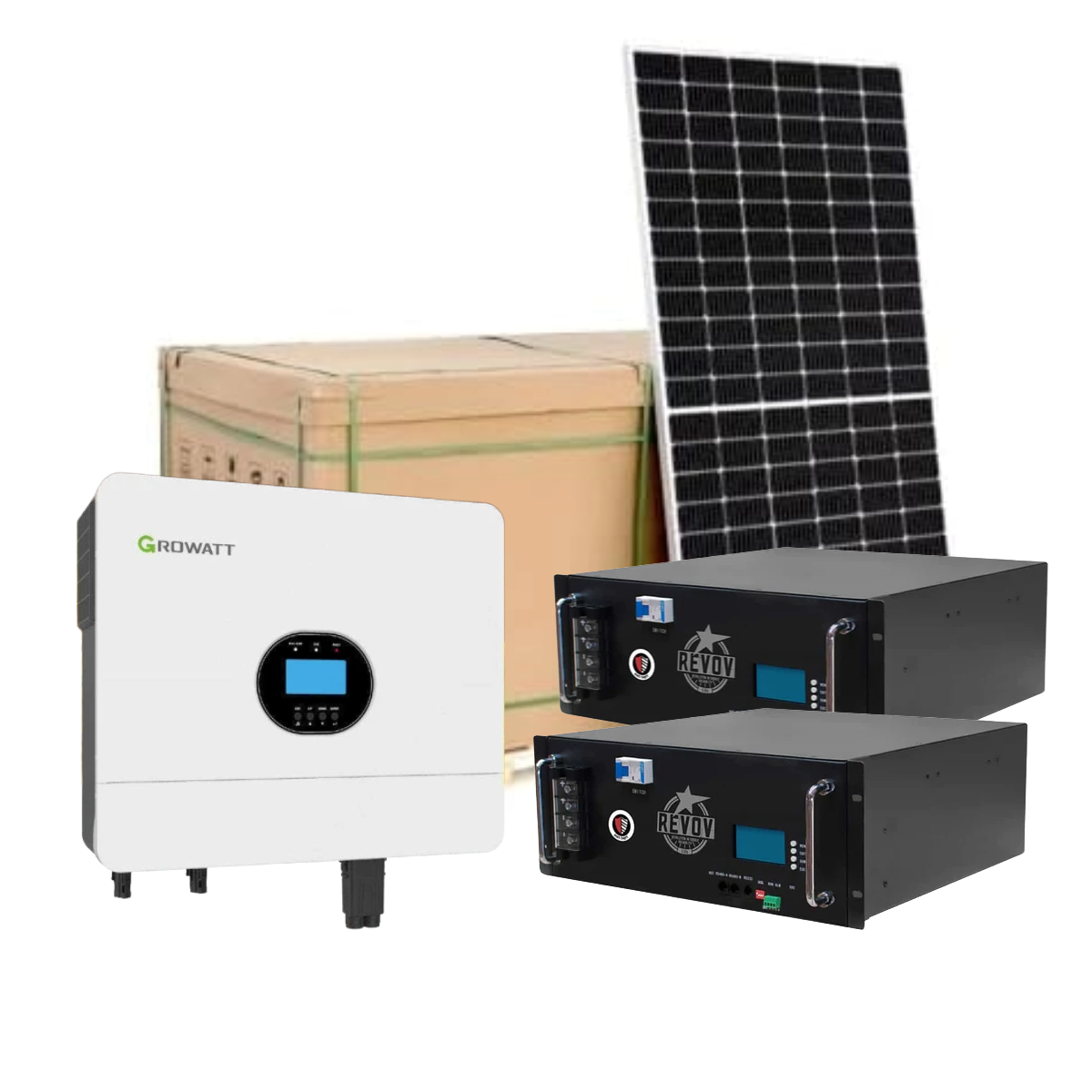

6kw Growatt Hybrid Inverter & 2 x 5.1kw R100 Revov batteries with 12 x 560w Solar Panels incl mounting kit
This Combo Consists of the following:
- 1 x Growatt 6kva Hybrid Inverter
- 2 x Revov B100 5.1kw Lithium battery
- 12 x 560w solar panels
- 8 x 3.5m Rails
- 30m x 6mm Red solar cable
- 30m x 6mm Black Solar cable
- 24 x solar panel roof hooks
- 20 x PV Mid Lock
- 8 x PV End Lock
- 2 x Combiner box 1in 1out
- 3 x Battery Cable set
- 1 x latch fuse holder
- 2 x 125A fuse
- 4 x Rail Extension
- 1 x AC Combiner Box
- 2 x Battery Wall mount Bracket
6kw Growatt Hybrid Inverter
- High Yields: More powerful with 8000W solar input– 2 times peak power ability– Output power factor up to 1.0
- Scalable & Flexible: Grid and Generator two AC inputs with integrated transfer switch– Up to 6 units in parallel for capacity extension– Plug-and-play quick connection PV terminals
- Smart & Reliable: Support WiFi and GPRS remote monitoring– Timing charging and output control– Built in dust-proof kit for harsh environment
REVOV B100 LIFEPO4 5.12kWh BATTERY
The battery includes an integrated Battery Management System (BMS) with an LCD display and an anti-theft feature that requires REVOV technician intervention to deactivate after being triggered
- Voltage: 51.2V nominal
- Capacity: 100Ah
- Energy: 5.1kWh
- Max Continuous Discharge Current: 100A
- Weight: 42kg
- Dimensions: 480mm x 482mm x 177mm (Length x Width x Height)
- Max recommended daily continuous discharge: 60A
- Designed Cycle Life: 6,000 to 7,000+ cycles
- Warranty: 10 years or 3,500 cycles (at 1 cycle per day)
- Charge Temperature:
0−45°C0 minus 45 degrees cap C
0−45°𝐶
- Discharge Temperature:
-20−60°Cnegative 20 minus 60 degrees cap C
−20−60°𝐶
- Boost/Absorption Voltage: 55.5V
- Float Voltage: 54.5V
- Warranted Discharge Cut-off Voltage: 48–49V
- Battery Management System (BMS): Integrated with an LCD display
- Communication: CAN Bus port
- Anti-theft: Remote anti-theft feature that deactivates the battery if tampered with and requires REVOV to reactivate
- Compatibility: Compatible with inverter-controlled systems, including Victron and SunSynk inverters
- Cell Grade: Often uses first-life, high-quality cells
NB: (Courier for panels are at your own risk, should a solar panel get damaged during shipping, Invert Solar will not be held liable for the replacement of the solar panel)
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
