This combo consists of:
- 1 x 6.2kva Vito Hybrid inverter
- 1 x 48v 106AH 5.09kw Svolt lithium battery

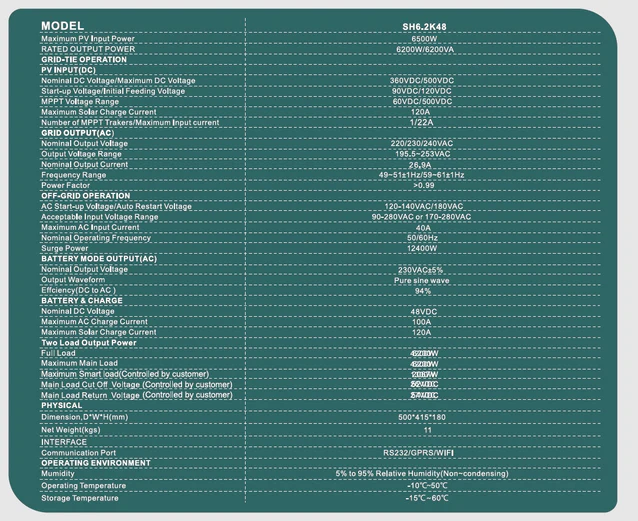

Hybrid Inverter 6.2KVA 6200W Watt MPPT Vito SH6.2K48
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Features:
- Pure sine wave inverter
- Configurable input voltage range for home appliances and personal computers via LCD setting
- Configurable battery charging current based on applications via LCD setting
- Configurable AC/Solar Charger priority via LCD setting
- Compatible to mains voltage or generator power
- Auto restart while AC is recovering
- Overload/ Over temperature/ short circuit protection
- Smart battery charger design for optimized battery performance
- Cold start function
- WIFI/GPRS (Optional)
- Can connect to lithium battery
- 3.2 Basic System Architecture
The following illustration shows basic application for this inverter/charger. It also includes following devices to have a complete running system:
• Generator or Utility.
• PV modules
PV INPUT:
- Max. PV Array Open Circuit Voltage 500Vdc
- PV Array MPPT Voltage Range 90Vdc~450Vdc
RGB Light
- Battery Mode: Red Light
- Utility Mode: Blue Light
- PV Mode: Purple Light
GRID/AC OUTPUT:
- Nominal Output Voltage 220/230/240Vac
- Feed-in Grid Voltage Range 195-253Vac
- Feed-in Gnd Frequency Range 49-51±1Hz
- Nominal Output Current: 15 7A
- Power Factor Range >0.99
- Maximum Conversion Efficiency (DC/AC).97%
- Nominal Operating Frequency 50/60Hz
TWO LOAD OUTPUT POWER:
- Full Load6200W
- Maximum Main Load 6200W
- Maximum Second Load 2067W
SVOLT 48V 106AH 5.09Kwh A-Grade Lithium Battery
The SVOLT 48V 106AH 5.09Kwh A-Grade Lithium Battery, manufactured by SVOLT in collaboration with Haval groups, offers exceptional performance and reliability. With A-Grade battery cells and advanced technology, this maintenance-free battery is ideal for various applications, including solar and renewable energy storage, electric vehicles, industrial equipment, medical devices, telecommunications, TVs, and UPS systems. Its rack-mounted installation type and compact design make it suitable for industrial, residential, commercial, and private use.
Specifications:
- Energy:5.09kWh
- Installation Type: Wall Mounted
- Battery type-Chemistry: LiFePO4
- Nominal Voltage:48V
- Nominal Capacity :106Ah
- Energy Density:5427 KWh
- Dimensions(LxWxH) :688 x 447 x 211mm
- Weight (Approx.):49.5KGS
- Terminal Type: M6
- Terminal Torque:8.5NM
- Case Material: SPCC
- BMS build-in: Yes
- Internal Resistance:<30mO
- Efficiency – round trip:99%
- Self Discharge per Month:<3%
- Max parallel connectors:16Pcs
- Series connections:Not Allowed
- Cycle life (0.2C, 25°C@80% DOD) Discharge Temperature:6000 Cycles
- Charge Temperature :20° C to 65°
- Storage Temperature :0C to 50° C
- Bluetooth(App) :Optional
- LCD Screen: Optional
- Heating Function: Optional
- Voltage Window: Optional
- Recommend Charge Voltage:43.2V-58.4V
- Max Charge Voltage:57.6±0.20V
- Recommend Charge current:58.4±0.20V
- Max Discharging Voltage:43.2±0.20V
- Max Continuous Discharge Current :100A
- Peak Discharge Current:150A
Features:
- Manufactured by SVOLT in collaboration with Haval groups, known for their excellence in vehicles
- A-Grade lithium battery cells for superior performance and reliability
- Designed for environmentally sensitive areas and committed to recycling
- Widely used in industrial, residential, commercial, and private applications
- Maintenance-free construction for convenience
- Suitable for solar and renewable energy storage, electric vehicles, industrial equipment, medical devices, telecommunications, TVs, and UPS systems
- Built-in Battery Management System (BMS) for efficient monitoring and protection
- High energy efficiency with a round trip efficiency of 99%
- Low self-discharge rate of less than 3% per month
- Compact and lightweight design for easy handling
- Optional features include Bluetooth (App), LCD screen, heating function, and voltage window
- Wide temperature range of operation and storage
- Warranty: 5 years
