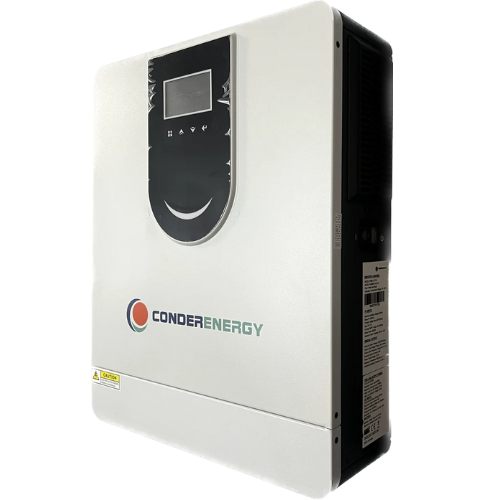

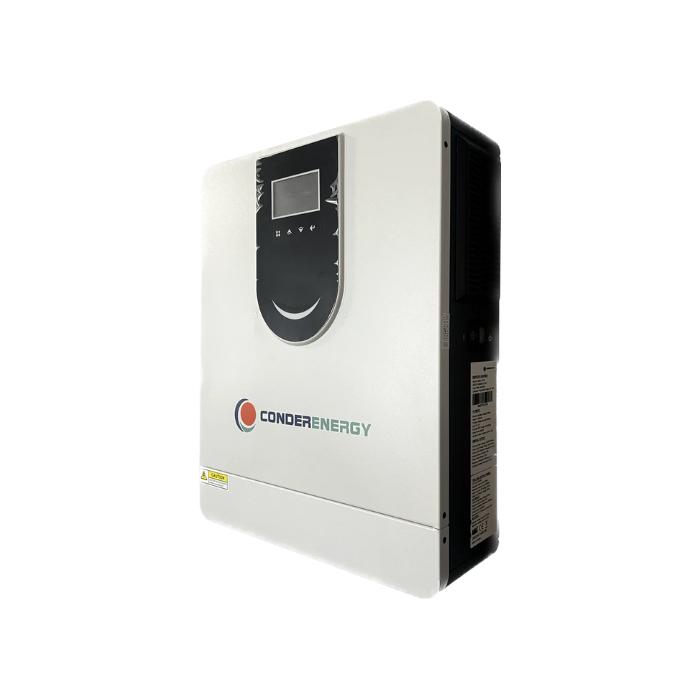

6.2 KVA Conderenergy Inverter Model S-2155

The Conderenergy S-2155, a high-performance 6.2 KVA hybrid inverter that revolutionizes the way you experience power. This multi-function powerhouse is not just an inverter; it’s a complete energy solution that combines the capabilities of an inverter, MPPT solar charger, and battery charger in one compact unit. Whether you’re dealing with load shedding or unexpected power disruptions, the Conderenergy S-2155 ensures your essential appliances and devices keep running seamlessly.

Key Features and Specifications :

• Compatibility: This hybrid inverter is compatible with mains voltage and can efficiently charge batteries, providing a seamless transition between power sources.
• Automatic Restart: It features an auto-restart function, ensuring a smooth transition when AC power is restored.
• Protection Mechanisms: With overload and short circuit protection, your connected devices and the inverter itself are safeguarded.
• Smart Battery Charging: The inverter is designed with a smart battery charger that optimizes battery performance, ensuring longer battery life.
• Cold Start Function: In case of power failure, the cold start function allows you to power up your essential devices even when there’s no external power source.
• Pure Sine Wave Inverter: Enjoy clean and stable power output with a pure sine wave inverter, which is ideal for sensitive electronics.
• Built-in Solar Charge Controller: The inverter comes equipped with a built-in solar charge controller, maximizing the efficiency of your solar panel setup.
• Maximum Power Point Tracking (MPPT): The MPPT technology ensures your solar panels operate at peak efficiency, harnessing the maximum available energy from the sun.
• Operating Temperature Range: This inverter performs reliably in a temperature range of -10°C to 50°C, making it suitable for various climates.
• Warranty: 3 years

PV Input Specifications :

• Normal Operating Voltage: 240Vdc
• Maximum PV Voltage (Vmax): 500Vdc
• PV Input Voltage Range: 90-450Vdc
• Full Load MPPT Range: 240-450Vdc
• Rated Power: 6500W
• Maximum Solar Charging Current: 120A

Grid/AC Output Specifications :

• Normal Output Voltage: 220/230/240Vac
• Feed-in Grid Voltage Range: 195-253Vac
• Feed-in Grid Frequency Range: 49-51+1Hz
• Normal Output Current: 27A
• Power Factor Range: >0.99
• Maximum Conversion Efficiency (DC/AC): 97%
• Normal Operating Frequency: 50/60Hz

Two Load Output Power Specifications :

• Full Load: 6200W
• Maximum Main Load: 6200W
• Maximum Second Load: 2066W
• Main Load Cut-off Voltage: 44Vdc
• Main Load Return Voltage: 54Vdc

AC Input Specifications :

• Normal Operating Voltage: 230Vac
• Maximum Input Current: 40A
• Normal Operating Frequency: 50/60Hz
• Surge Power: 12400VA
• Maximum AC Charging Current: 100A

Warranties:

All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
