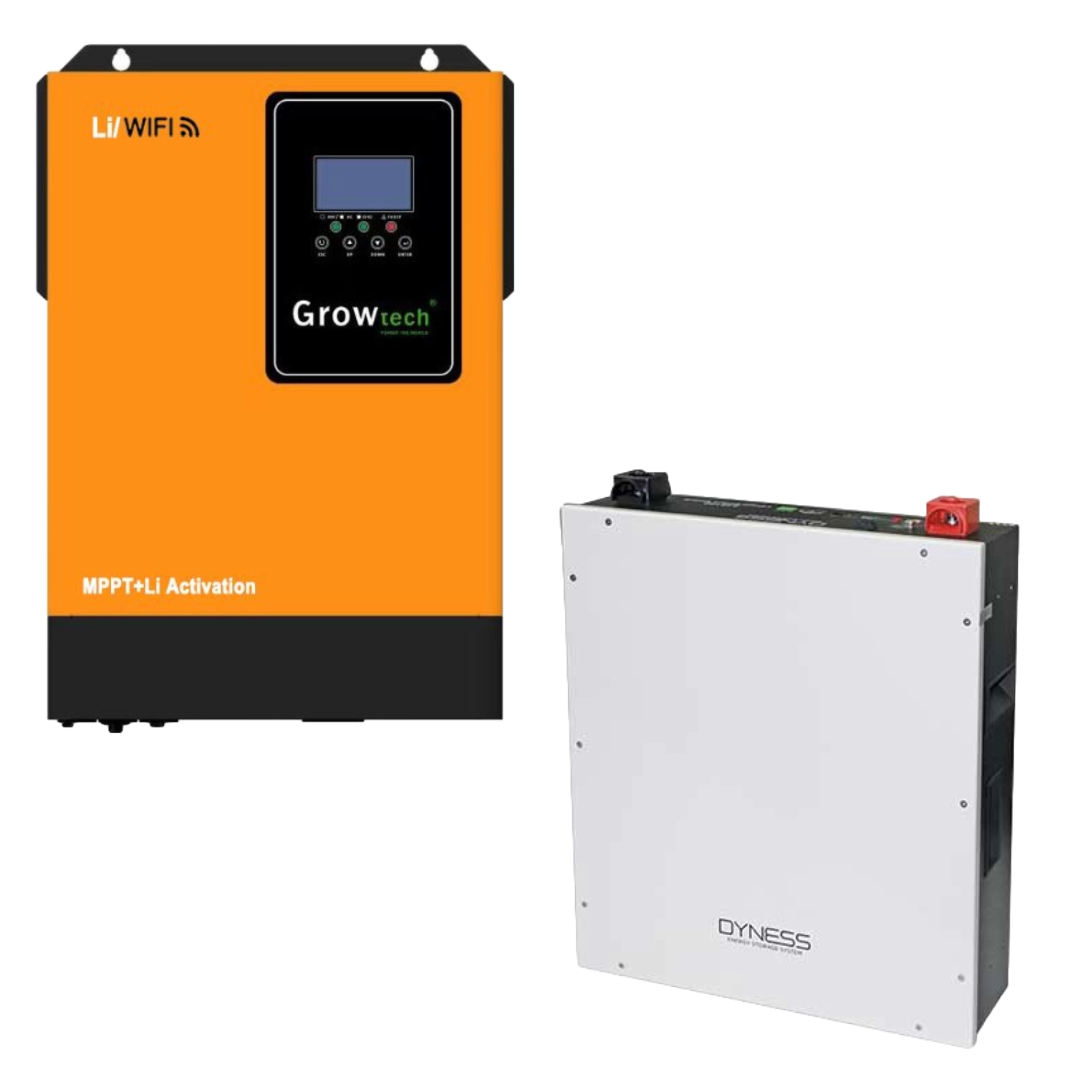

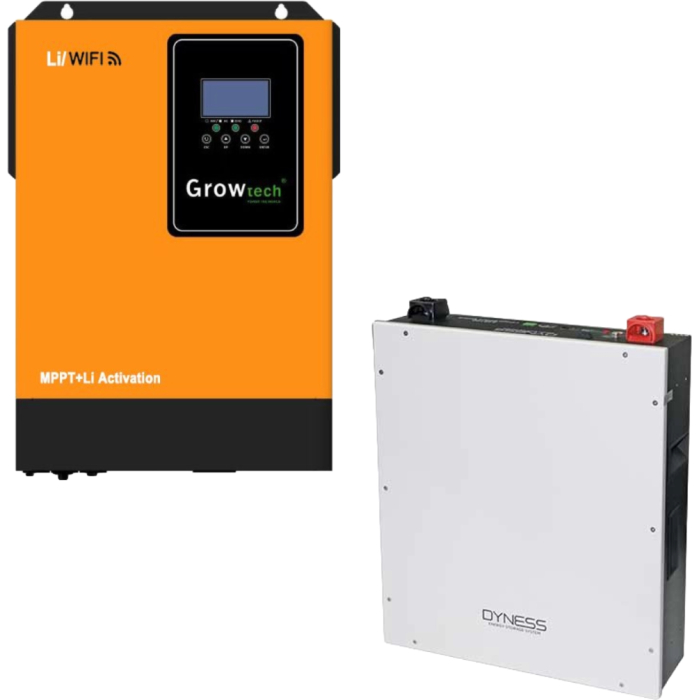

This Combo consists of:
- 1 x 5.5kva Growtech Hybrid Inverter
- 1 x 4.8kw Dyness A48100 Lithium Battery
Growtech 5.5kW Solar Inverter – 5.5KVA / 5500W / 48VDC / MPPT
Specifications
Model: GT-MP5548
Capacity: 5.5KVA / 5.5KW
Parallel Capability: NO
INPUT
Nominal Voltage: 230VAC
Acceptable Voltage Range: 170-280VAC (For Personal Computer); 90-280VAC (For Home Appliances)
Frequency: 50/60 Hz (Auto sensing)
OUTPUT
Nominal Voltage: 220/230VAC ±5%
Surge Power: 11000VA
Frequency: 50/60Hz
Waveform: Pure Sine Wave
Transfer Time: 10ms (For Personal Computer); 20ms (For Home Appliances)
Peak Efficiency (PV to INV): 96%
Peak Efficiency (Battery to INV): 93%
Overload Protection: 5s @ >=150% load; 10s @ 110%~150% load
Crest Factor: 3:1
Admissible Power Factor: 0.6~1 (inductive or capacitive)
BATTERY
Battery Voltage: 48VDC
Floating Charge Voltage: 54VDC
Overcharge Protection: 63VDC
Charging Method: CC / CV
Lithium Battery Activation: YES
Lithium Battery Communication: YES (RS485)
SOLAR CHARGER & AC CHARGER
Solar Charger Type: MPPT
Max.PV Array Power: 5500W
Max.PV Array Open Circuit Voltage: 500VDC
PV Array MPPT Voltage Range: 60VDC~500VDC
Max.Solar Input Current: 18A
Max.Solar Charge Current: 100A
Max.AC Charge Current: 80A
Max.Charge Current (PV+AC): 100A
PHYSICAL
Dimensions D x W x H (mm): 438x295x 105
Package Dimensions D x W x H (mm): 560x375x185
Net Weight (Kg): 9
Communication Interface: RS232+RS485
ENVIRONMENT
Operating Temperature Range: -10℃ to 50℃
Storage Temperature: -15℃ ~ 50℃
Humidity: 5% to 95% Relative Humidity (Non-condensing)
Dyness 4.8kWh Lithium-Ion Battery
Dyness takes pride in its team of experienced R&D experts who are dedicated to engineering the safest and most environmentally friendly energy storage solutions. By choosing the Dyness Lithium Battery, you can have peace of mind knowing that you are investing in a product that prioritizes safety, performance, and sustainability.
Specifications and Features :
- Voltage: 48V
- Nominal capacity: 100Ah
- Rated energy: 4800Wh
- Cycle life: 6000 Cycles (25℃, 0.5C RATE, 90%DOD, EOL60%)
- Rated discharge current: 30A
- Maximum continuous discharge current: 100A
- Maximum discharge current: 120A 3S
- Rated charging current: 30A
- Maximum continuous charging current: 100A
- Lower limit of discharge voltage: 42±0.1V
- Operating temperature:
- Recharge: 0℃ to +55℃
- Discharge: -20℃ to +55℃
- Working humidity: 5% to 85% RH
- Storage temperature: -10℃ to +35℃
Key Features :
- Reliable and efficient energy storage solution for renewable energy systems
- Built-in battery management system for protection against overcharging, over-discharging, and short circuits
- Provides 48V of continuous output power
- Lightweight and compact design for easy installation and transportability
- Suitable for wall-mounting or stackable with battery brackets
- Enables independence from the National Grid and promotes self-sufficiency
- Compatible with solar panels and other renewable energy sources
- Long cycle life for extended usage
- Customizable setup for seamless integration with your renewable energy system
- Committed to safety, sustainability, and responsible engineering.
- Warranty: 5 years
