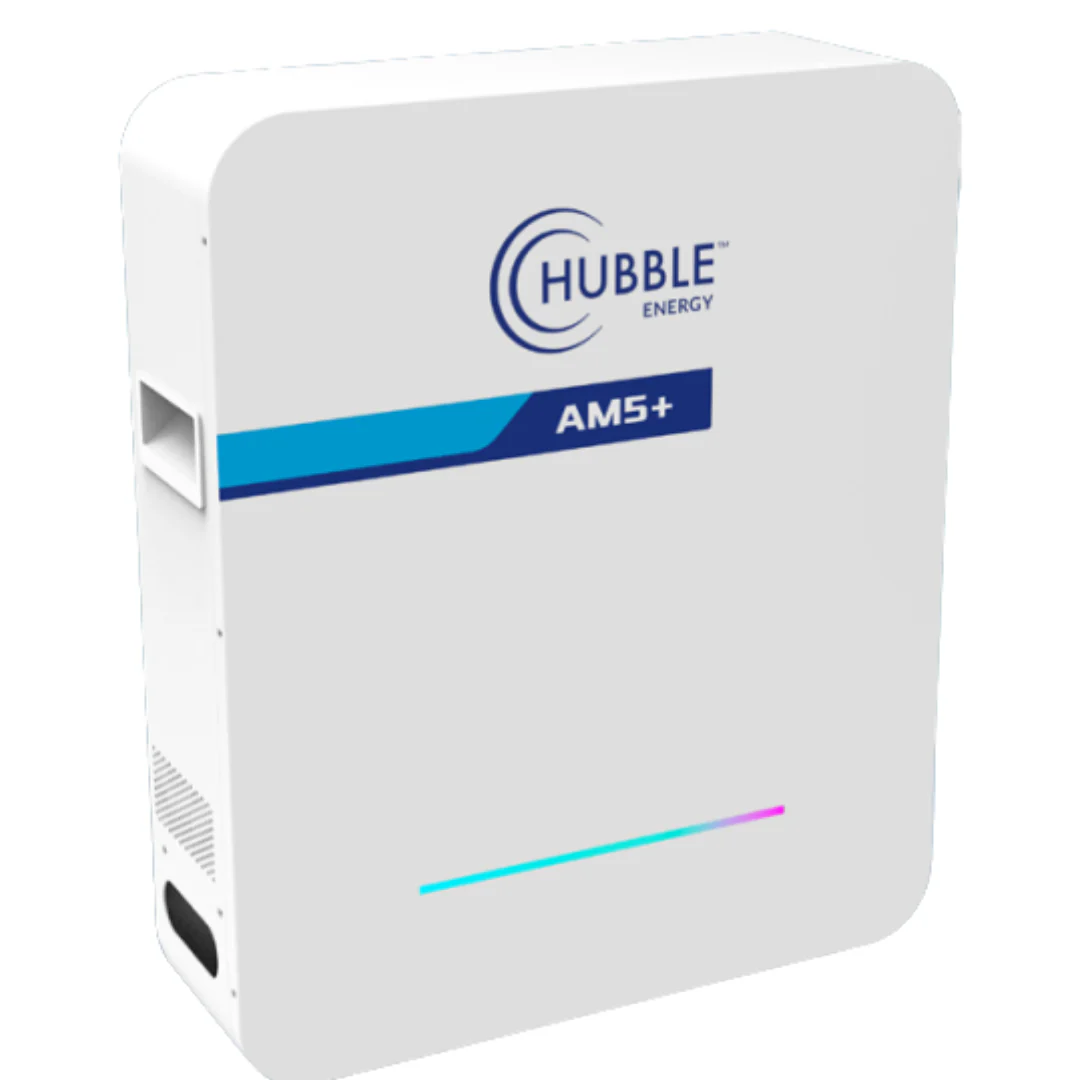

Hubble AM-5+ LiFePO4 5.12kWh 51.2V Battery (Unlimited Cycles)
Please note all the AM-5 Models Will Work Together.
Features:
+ Unlimited Cycle Warranty (Ts & Cs Apply)
+ Prismatic LiFePO4 Cells
+ 1C high Performance Lithium Battery
+ Advanced BMS With Current Limiting Function
+ Easy Wall Mount Or Shelf Rack Installation
+ Informative LED Display Strip
+ High Cycle And Service Life
+ Compatible With Most Inverters And Chargers
+ Heavy Duty Side Handles For Easy Handling
And Mounting On The Wall
+ Built In Protection For Over-Charge, OverDischarge And Over-Temperature
+ CAN Bus, Fully Integrates And Communicates
With Leading Inverter Brands
+ Integrated Cloudlink 24/7 Monitoring Included
+ Compatible with AM5 (with Cloudlink)
Technical Specifications:
Model Hubble AM5+
*Rated Capacity (5HR) 100 Ah
Nominal Voltage 51.2 V
Design Capacity 5.12 kWh
Equalized Charge Voltage 55.2 V
Max. Continuous Charging Current 100 A
Max. Continuous Discharging Current 100 A
C Rating 1.0 C
Depth of Discharge 100%
Weight Approx. 53 Kg
Monitoring Built in Cloudlink
Parallel Parallel connection up to 225 packs with full communications
Dimensions (WxDxH) mm 500mm x 153mm x 600mm (W x D x H)
Ports CAN-bus, Battery Link Ports
Cells Prismatic LiFePO4
Design Life +/- 15 Years
Cycle Life @ 1C Unlimited cycles within the Hubble Lithium 10 year warranty (Ts & Cs Apply)
Certification CE IEC UN38.3
Outer Package Material White bake lacquer steel case
Operating Temperature Charging: -10 to +50°C | Humidity: 15% to 75% | Storage: 10 to +50°C
Protection Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
