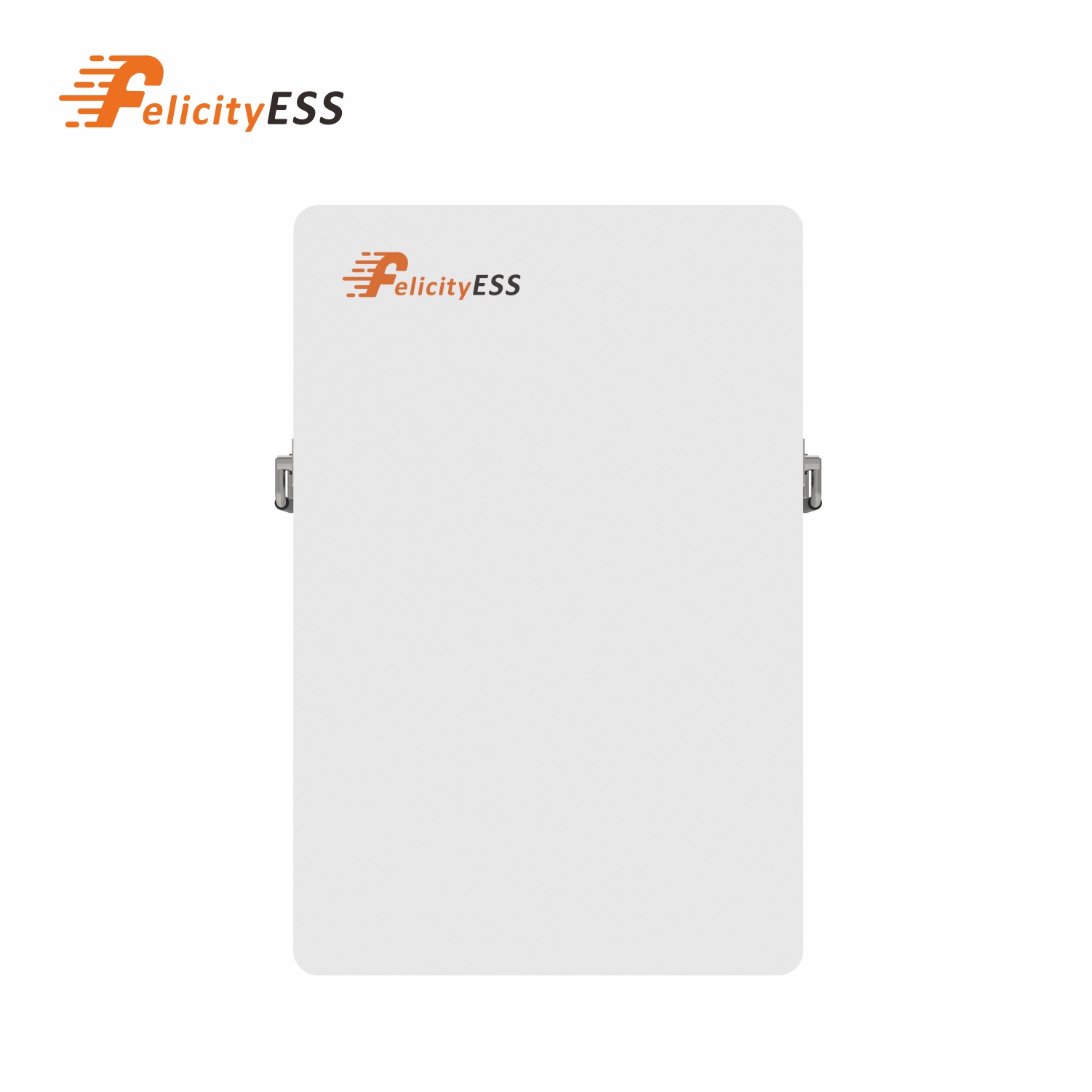

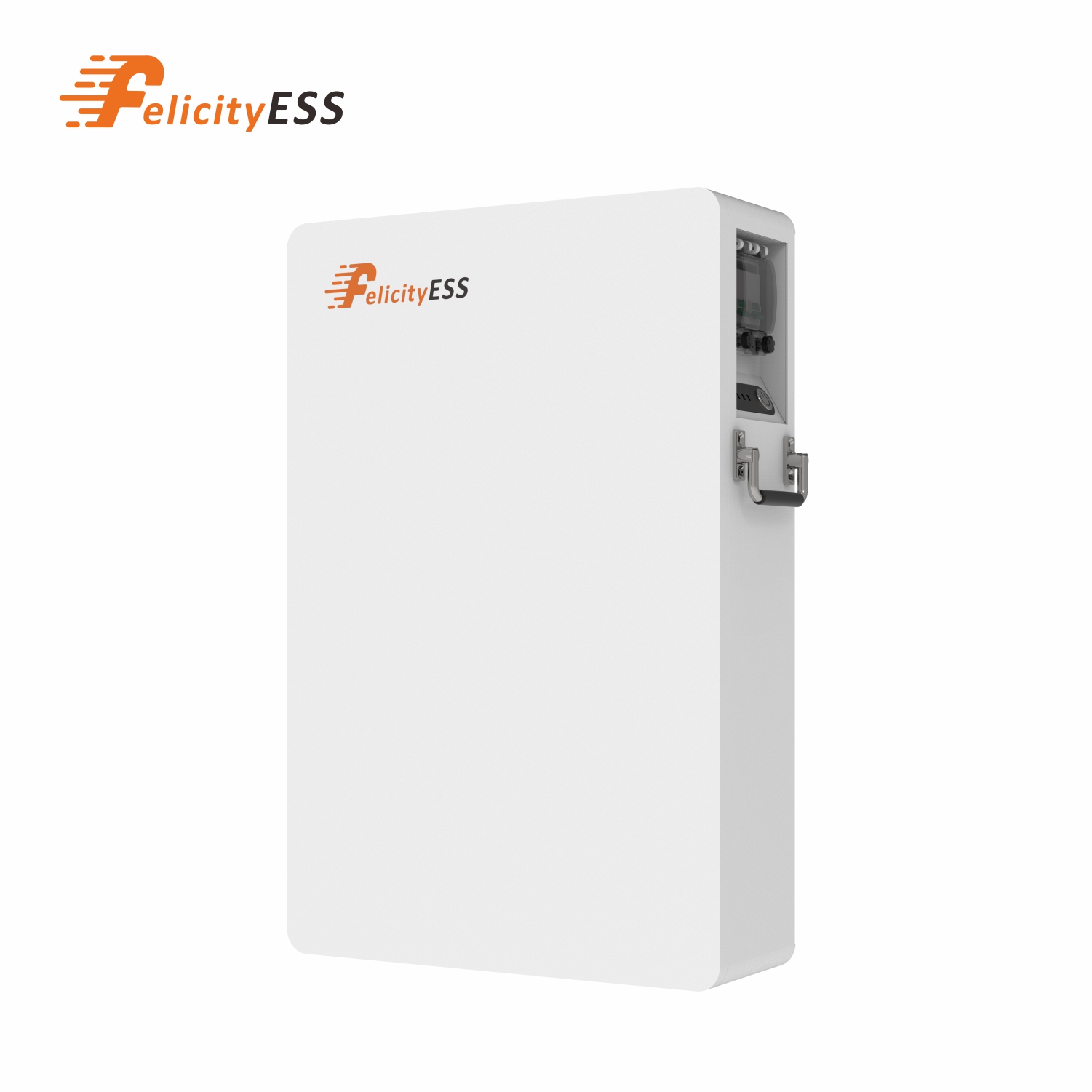

5.12kWh 48V Felicity ESS LUX-E Lithium Battery
The Felicity ESS LUX-E-48100LG04 is a high-performance 48V lithium iron phosphate (LiFePO₄) energy storage system designed for safe and efficient power storage in residential and commercial applications. Featuring a built-in smart BMS, robust fire protection, and wide inverter compatibility, it offers reliable backup and long service life.
Product Features
- LiFePO₄ Chemistry: Delivers superior safety, excellent thermal stability, and a lifespan exceeding 6000 cycles.
- Smart BMS: Built-in battery management system and breaker for enhanced protection and monitoring.
- Flexible Installation: Can be wall-mounted or floor-mounted for maximum versatility.
- Wide Compatibility: Works seamlessly with major inverter brands.
- Fire Safety: Integrated aerosol fire-extinguishing system for added protection.
- Scalable Design: Up to 12 units can be connected in parallel (total capacity up to 61.44kWh).
- Long Warranty: 10-year manufacturer warranty from Felicity ESS.
Specifications
- Model: LUX-E-48100LG04
- Battery Type: LiFePO₄
- Nominal Energy: 5.12kWh
- Nominal Capacity: 100Ah
- Nominal Voltage: 51.2V
- Operating Voltage Range: 44.8V – 57.6V
- Recommended Charge/Discharge Current: 50A
- Max Continuous Charge/Discharge Current: 60A
- Peak Current (15s): 100A
- Depth of Discharge (DOD): ≥95%
- Protection Rating: IP65
- Cycle Life: ≥6000 cycles @25°C (80% DOD)
- Working Temperature Range: Charge: 0–55°C / Discharge: –20–55°C
- Storage Temperature: 0–35°C
- Humidity: 5–95%
- Altitude: ≤2000m
- Communication: RS485 / CAN
- Installation: Wall-Mounted / Floor-Mounted

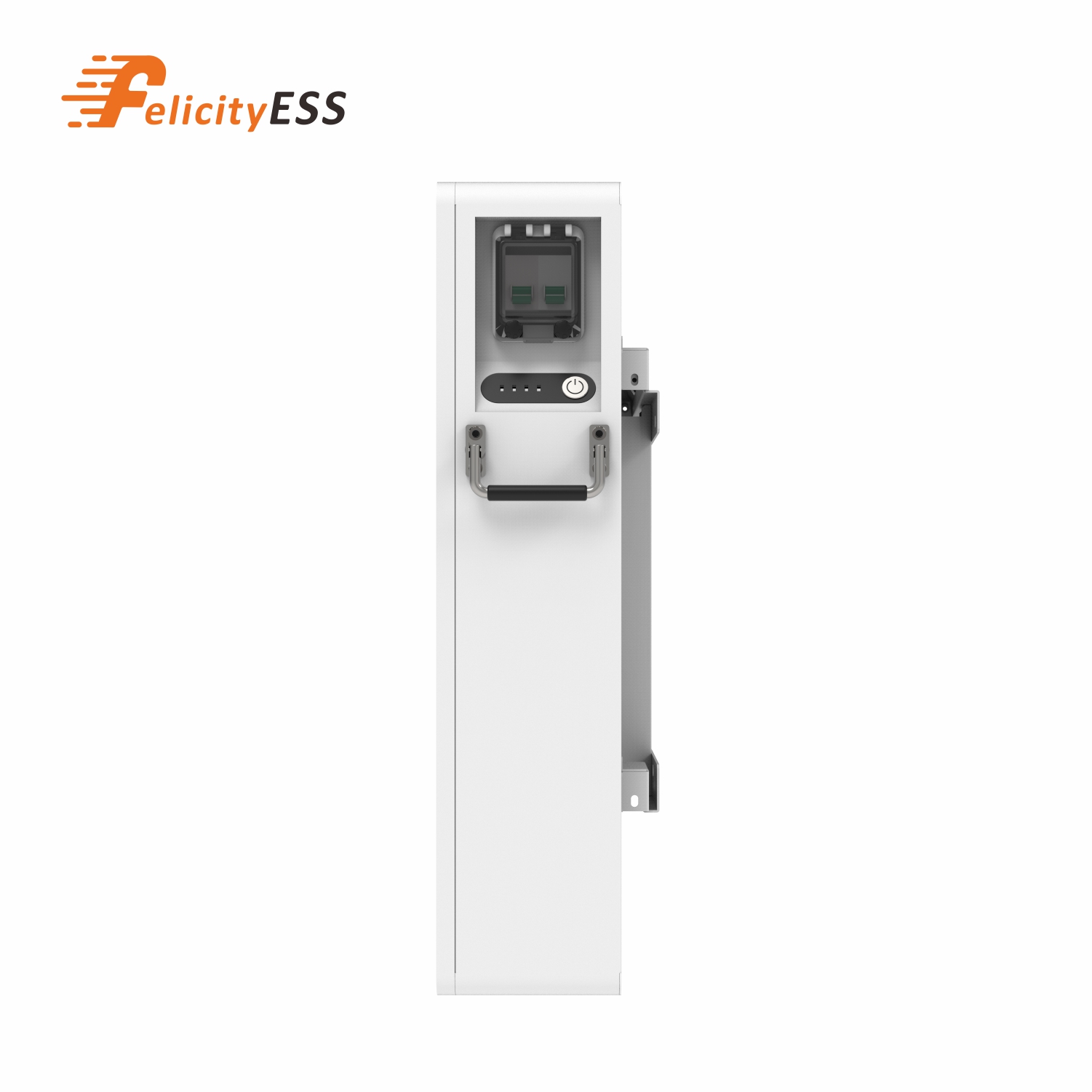

- Protection: Built-in Smart BMS and Breaker
- Dimensions (L×W×H): 665 × 440 × 175 mm
- Weight: 48.5 kg
What’s in the Box
- 1 × LUX-E-48100LG04 Battery Module

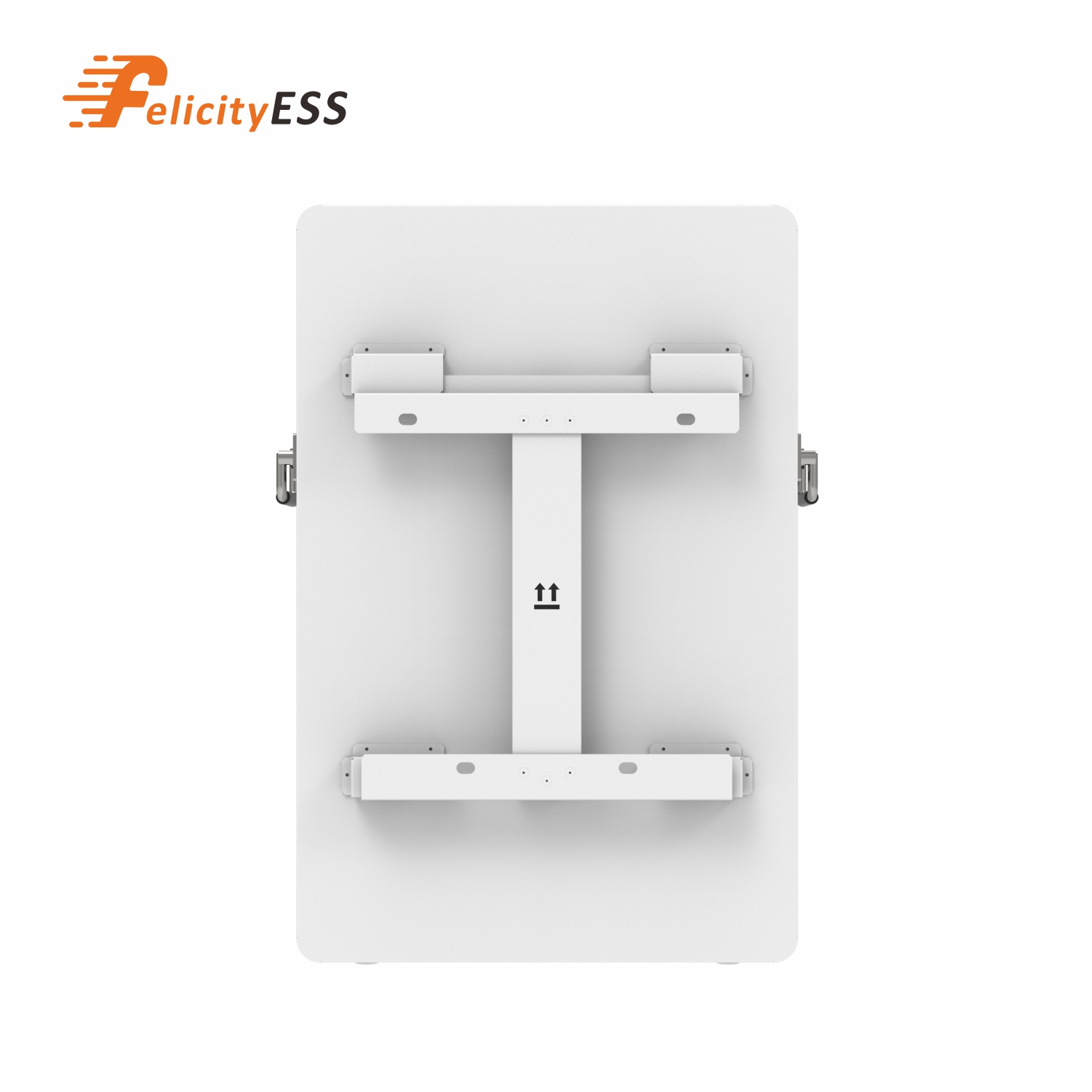

- 1 × Wall Mount Bracket
- 1 × User Manual
- 1 × Warranty Card
- 2 × Power Terminals
- 8 × Mounting Screws and Accessories
- 1 × RS485 / CAN Communication Cable
- 1 × Power Cable (0.9m, 25mm²)
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
