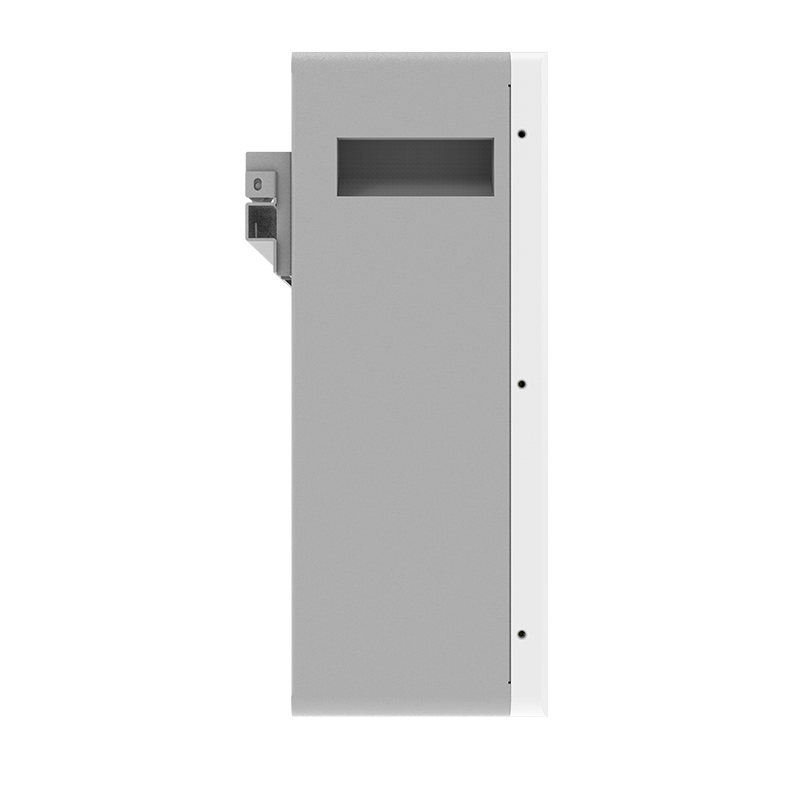

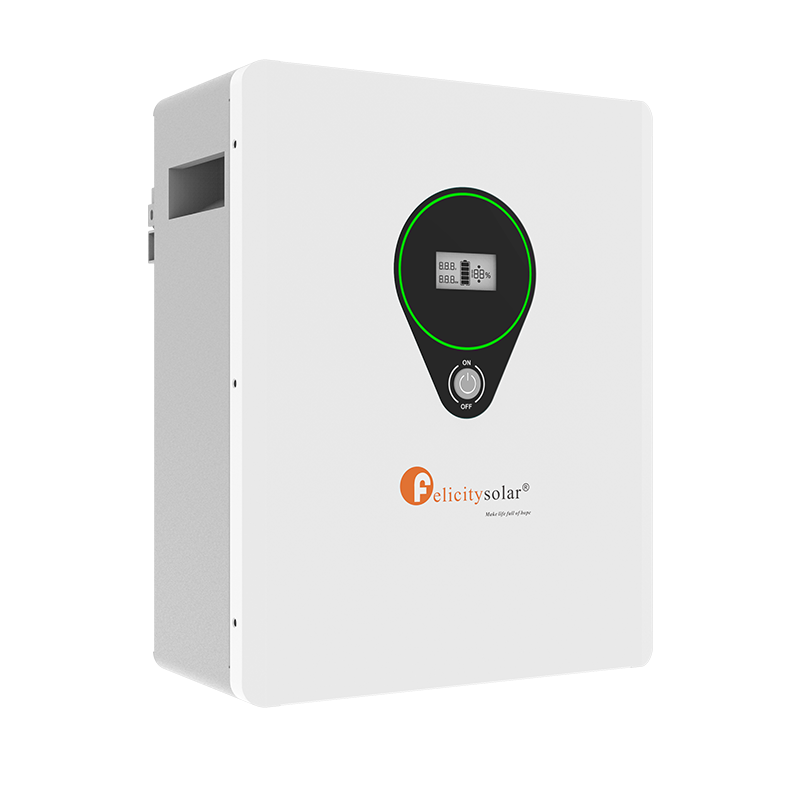

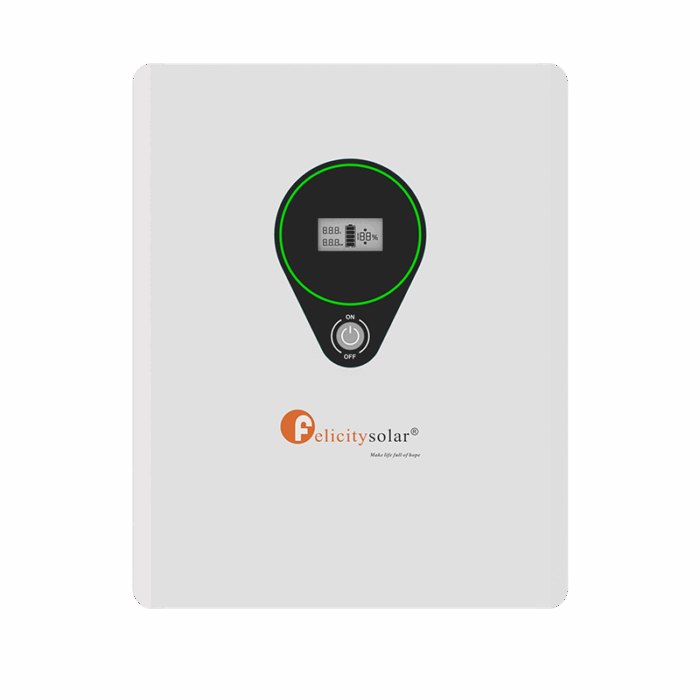

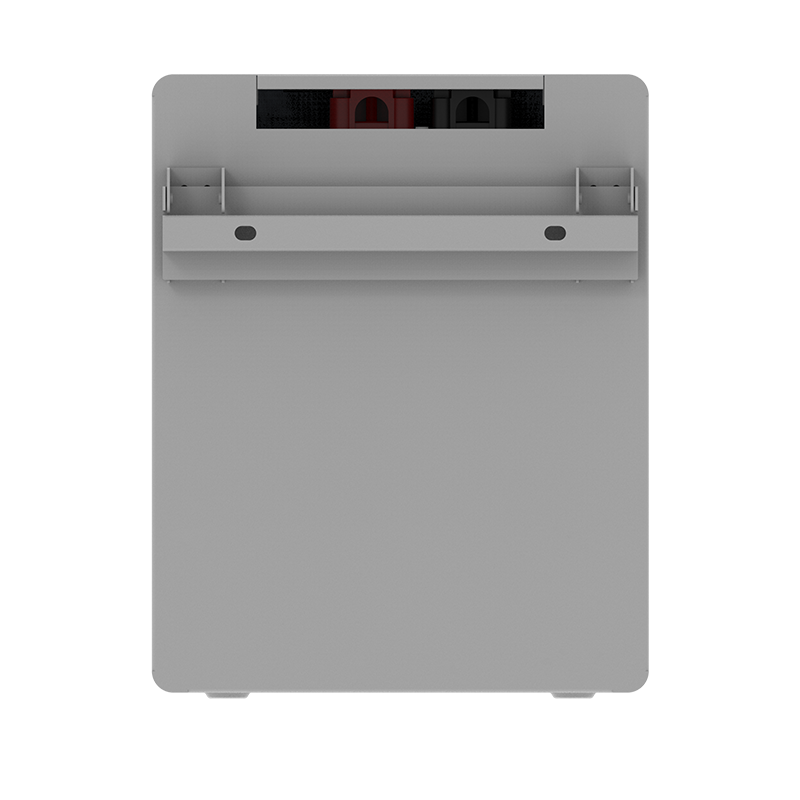

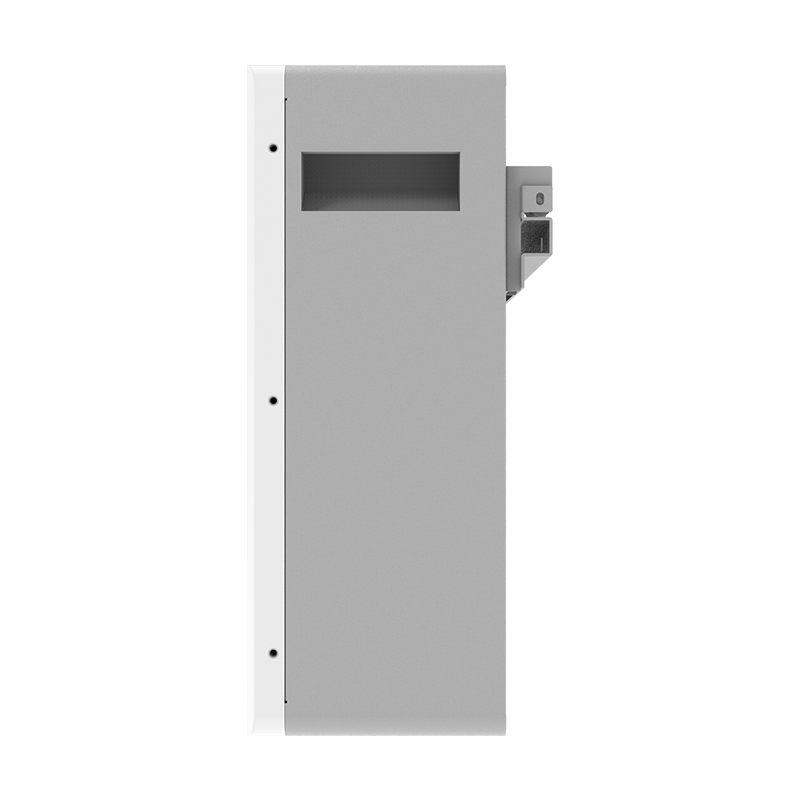

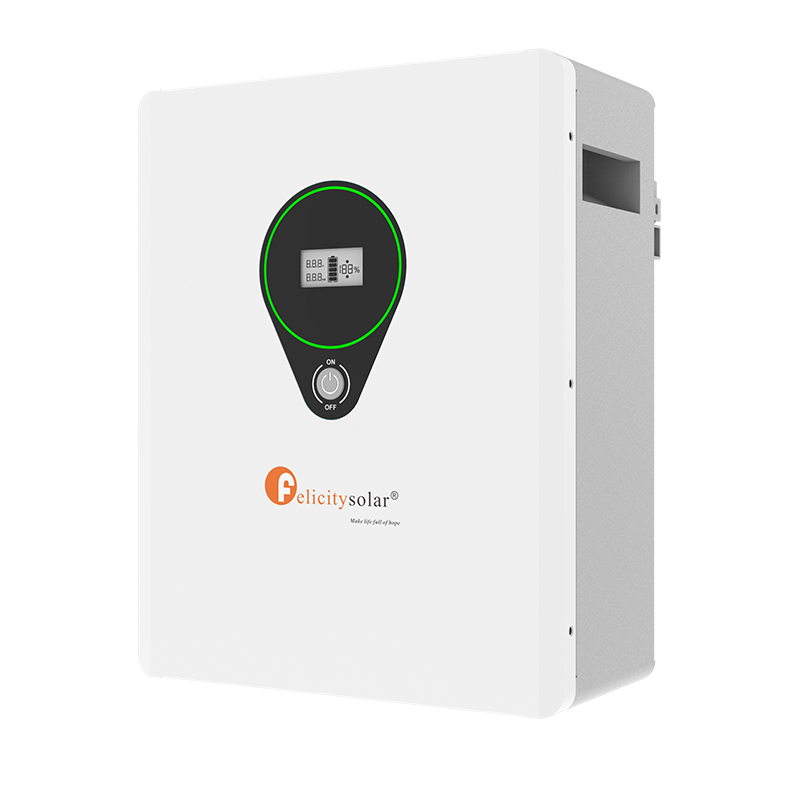

2.5kWh 24V Felicity LPBF Lithium Battery
The Felicity 2.5kWh LPBF Lithium Battery is a compact, high-performance 24V LiFePO₄ storage solution designed for residential and light commercial applications.
With intelligent battery management, stable chemistry, long cycle life, and support for parallel expansion, it provides safe and reliable energy storage for off-grid and hybrid solar systems.
Its wall-mountable or rack-mountable form factor makes it ideal for installations where space and efficiency matter.
Product Features
- LiFePO₄ chemistry for maximum safety, stability, and long service life.
- Intelligent built-in BMS for real-time protection and monitoring.
- 2.5kWh usable capacity designed for small to medium energy storage needs.
- Supports up to 6 units in parallel (up to 15kWh total).
- Wide inverter compatibility via RS485 / CAN communication.
- LED status indicators for SOC and system health.
- Compact and lightweight wall-mountable cabinet design.
- Over 6,000 cycle lifespan at 80% depth of discharge.
Specifications
- Model: LPBF24100-M
- Usable Capacity: 2.56kWh
- Nominal Voltage: 25.6V
- Operating Voltage: 24–28.8V
- Recommended Charge Voltage: 28.8V
- Recommended Discharge Cut-off Voltage: 24V
- Max Charge/Discharge Current: 60A
- Recommended Charge/Discharge Current: 40A
- Depth of Discharge (DOD): 80%
- Cycle Life: ≥ 6,000 Cycles
- Scalability: Up to 6 units in parallel (15kWh)
- Communication: RS485 / CAN
- Net Weight: 22kg
- Gross Weight: 26kg
- Product Dimensions: 420 × 341 × 195 mm
- Package Dimensions: 495 × 418 × 285 mm
- Warranty: 5 Years
What’s in the Box
- 1 × 2.5kWh Felicity LPBF Lithium Battery
- 1 × Communication Cable (RS485/CAN)
- 1 × Power Cable Set
- 1 × User Manual
- 1 × Warranty Card
System Overview
- Ideal for small residential backup systems, cottages, cabins, and light commercial setups.
- Parallel-expandable up to 15kWh for growing energy needs.
- Advanced BMS ensures long-term reliability and cell balancing.
- Compatible with leading inverter brands through RS485/CAN protocols.
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null and void.
