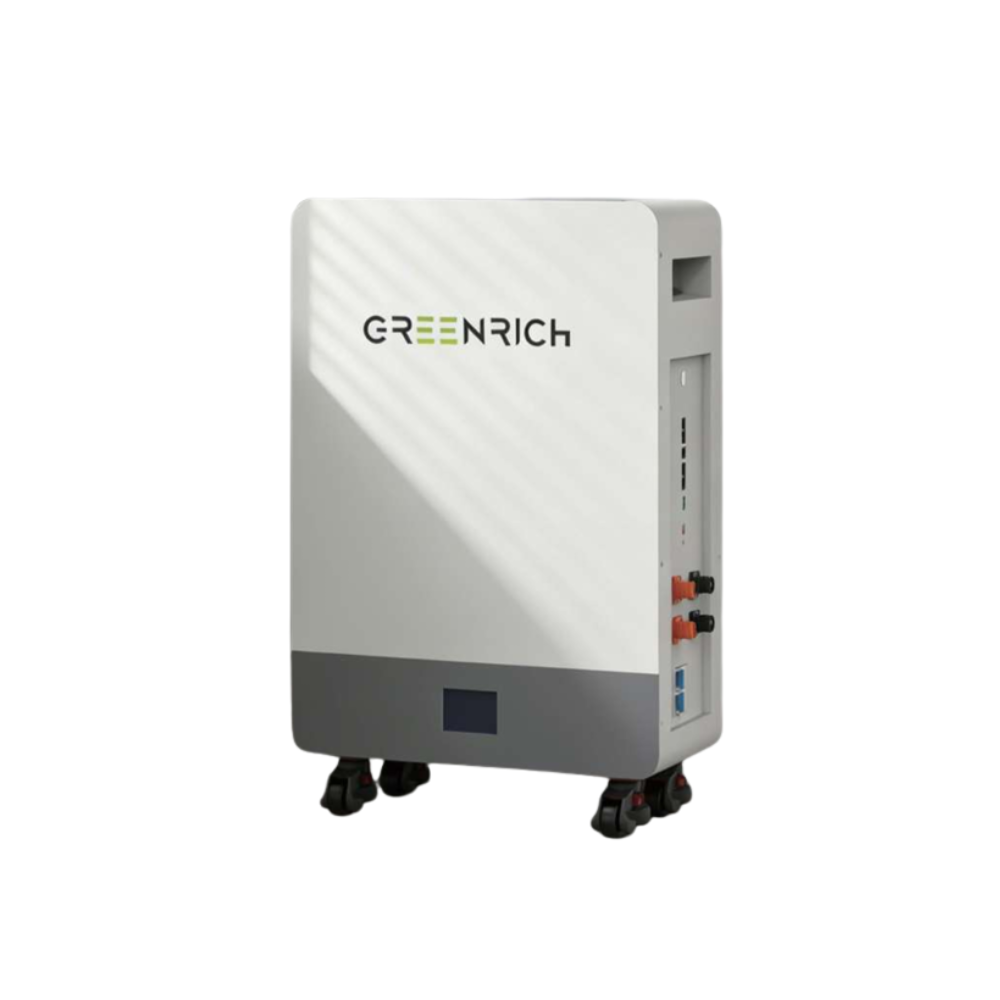

16kWh 51.2V Greenrich AF16000 Floor Standing Lithium Battery
The Greenrich AF16000 is a high-capacity, floor-standing lithium energy storage system designed for residential and light commercial solar applications. With a nominal capacity of 16kWh and advanced LiFePO₄ battery chemistry, this unit delivers reliable long-term energy storage with enhanced safety, stability, and performance.
Engineered for seamless integration with hybrid and off-grid inverters, the AF16000 operates at a nominal voltage of 51.2V and supports high charge and discharge currents, making it suitable for demanding load requirements. Its robust internal battery configuration ensures efficient energy utilisation while maintaining consistent output.
The unit features CAN and RS485 communication for inverter compatibility, an integrated display with indicator lights, and quick-connect terminals for simplified installation. With support for up to 15 units in parallel, the AF16000 offers scalable energy storage for expanding systems.
Designed for durability, the AF16000 delivers up to 8000 cycles at 0.5C and 80% depth of discharge, ensuring extended service life and dependable daily operation.
Product Features
-
16kWh floor-standing lithium energy storage system
-
Advanced LiFePO₄ battery chemistry
-
Nominal voltage: 51.2V
-
High charge and discharge capability (100A rated / 200A max)
-
Supports up to 15 units in parallel
-
CAN & RS485 communication compatibility
-
3.5-inch display screen with indicator lights
-
Integrated air switch and optional remote shut-off
-
Long cycle life: 8000 cycles @ 0.5C, 80% DOD
Specifications
-
Model: AF16000
-
Battery Chemistry: LiFePO₄
-
Battery Configuration: 16S1P
-
Nominal Voltage: 51.2V
-
Total Capacity: 314Ah
-
Nominal Energy: 16kWh
-
Operating Voltage Range: 40–58.4V
-
Rated Charging Current: 100A
-
Max Charging Current: 200A
-
Rated Discharge Current: 100A
-
Max Discharge Current: 200A
-
Cycle Life: 8000 cycles @ 0.5C, 70%EOL, 80%DOD
-
Communication: CAN / RS485
-
IP Rating: IP20
-
Operating Temperature: Charge: 0–55°C | Discharge: -20–55°C
-
Max Parallel Connections: 15 units
-
Net Weight: ±124kg
-
Dimensions (W×D×H): 500 × 800 × 230mm
What’s in the Box
-
1 × Greenrich AF16000 Lithium Battery
-
User Manual
-
Quick-connect terminals
-
Warranty Documentation
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
