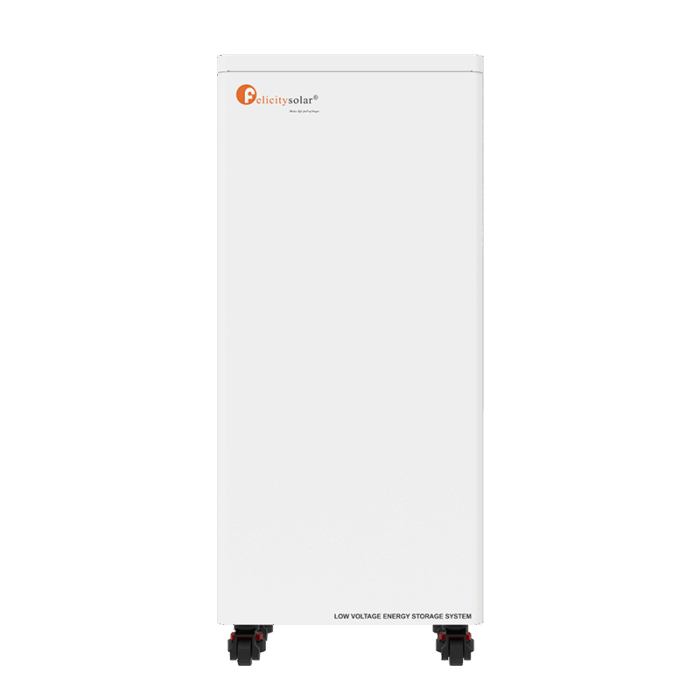

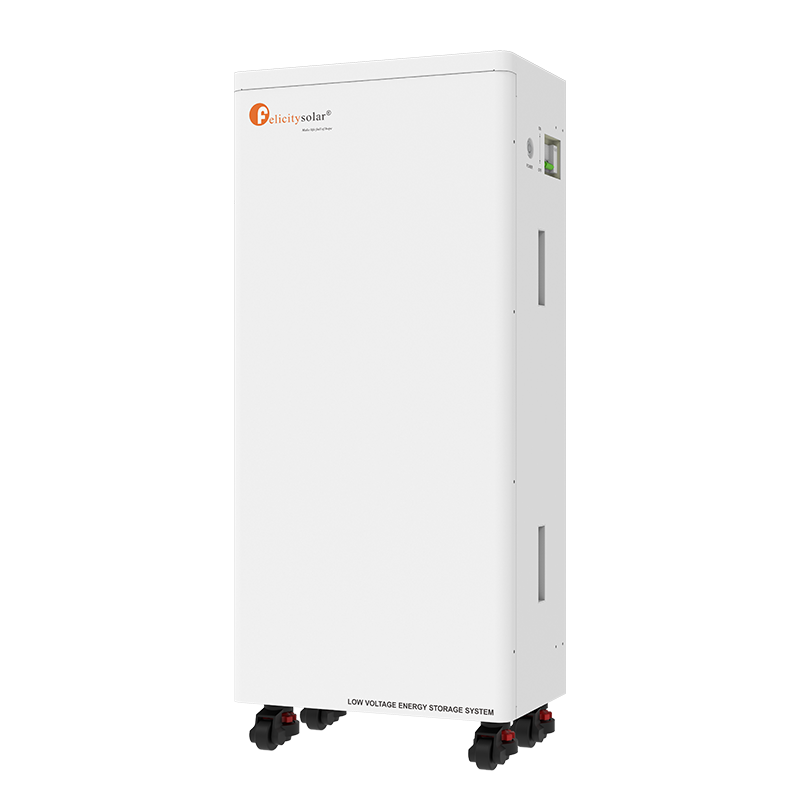

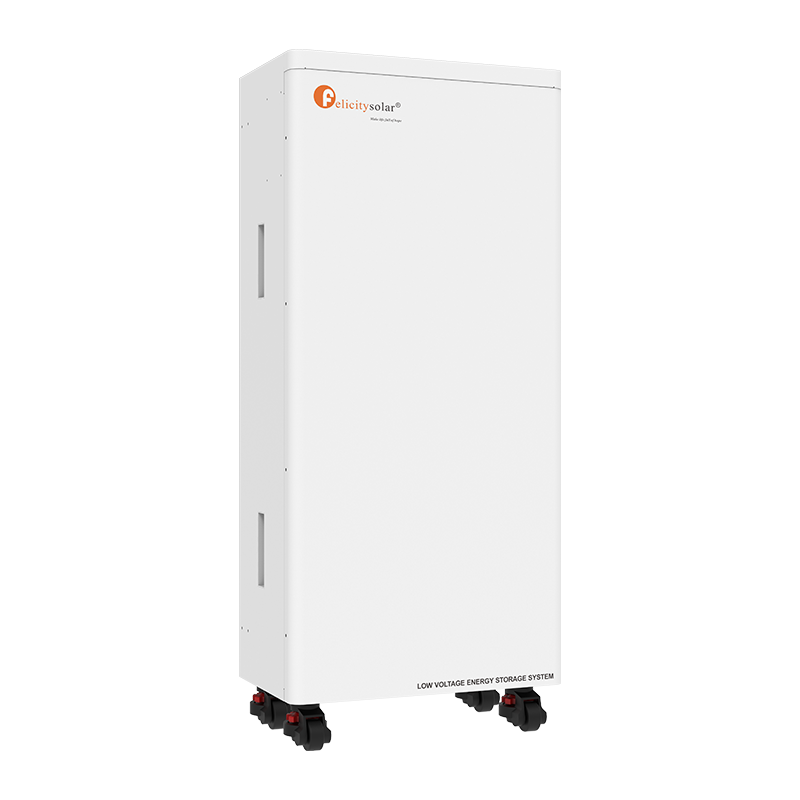

15kWh 51.2V Felicity Lithium Battery (FLA48300)
The Felicity 15kWh Lithium Battery is a high-capacity 51.2V LiFePO₄ energy storage unit designed for home, commercial, and solar applications.
It features long cycle life, stable LiFePO₄ chemistry, a built-in smart BMS, and support for large multi-battery parallel systems.
With advanced communication protocols and a robust design, it is ideal for hybrid, grid-tied, and off-grid installations requiring reliable large-scale energy storage.
Product Features
- High-safety LiFePO₄ chemistry with long cycle life and stable operation.
- Usable capacity of 15kWh – ideal for medium to large residential systems.
- Built-in Smart BMS offering over-charge, over-discharge, temperature, and short-circuit protection.
- Supports parallel expansion — up to 16 units for large storage banks.
- RS485 / CAN communication for wide inverter compatibility.
- Robust cabinet-style housing with optional wall or floor placement.
- LCD status display for SOC, voltage, alarms, and performance data.
- Designed for daily cycling with over 6,000 cycles at 80% DOD.
Specifications
- Model: FLA48300
- Usable Capacity: 15kWh
- Nominal Voltage: 51.2V
- Voltage Range: 44.8 – 57.6V
- Recommended Charge Cut-off Voltage: 57.6V
- Recommended Discharge Cut-off Voltage: 44.8V
- Max Charge/Discharge Current: 200A
- Recommended Charge/Discharge Current: 100A
- Max Output Power: 10,000W
- Recommended Output Power: 5,500W
- Depth of Discharge (DOD): 80%
- Cycle Life: ≥ 6,000 Cycles
- Module Connection: Up to 16 Units in Parallel
- Communication: RS485 / CAN
- Net Weight: 148kg
- Gross Weight: 163kg
- Product Dimensions: 718 × 483 × 990 mm
- Package Dimensions: 825 × 498 × 1162 mm
- Warranty: 5 Years
What’s in the Box
- 1 × 15kWh Felicity Lithium Battery Unit
- 1 × Communication Cable Set (RS485 / CAN)
- 1 × Power Cable Set
- 1 × User Manual
- 1 × Warranty Card
System Overview
- Ideal for medium-to-large home storage, hybrid systems, and commercial backup setups.
- Smart BMS ensures safe operation and real-time cell balancing.
- Expandable design supports large multi-battery storage banks.
- Compatible with leading inverter brands using RS485/CAN communication.
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null and void.
