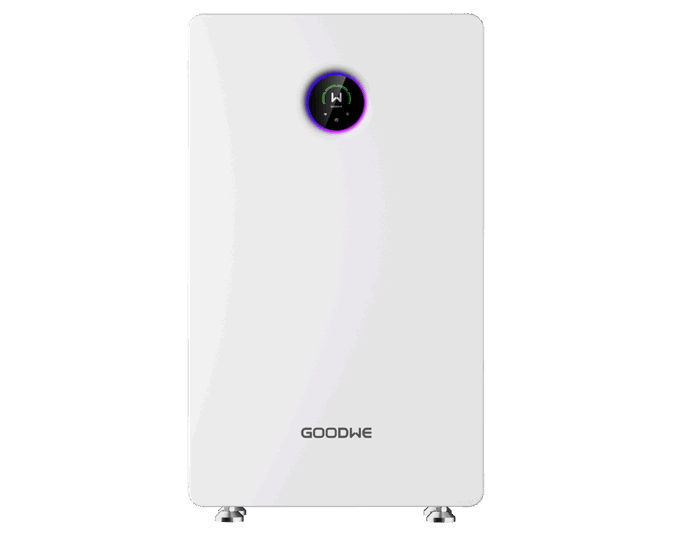

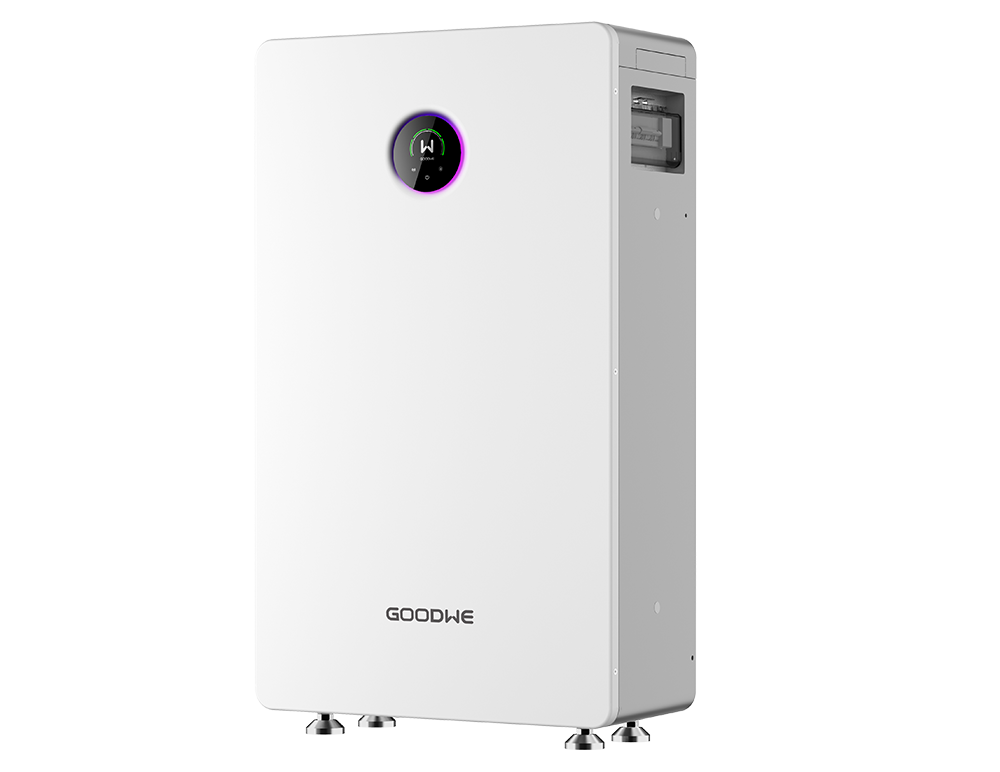

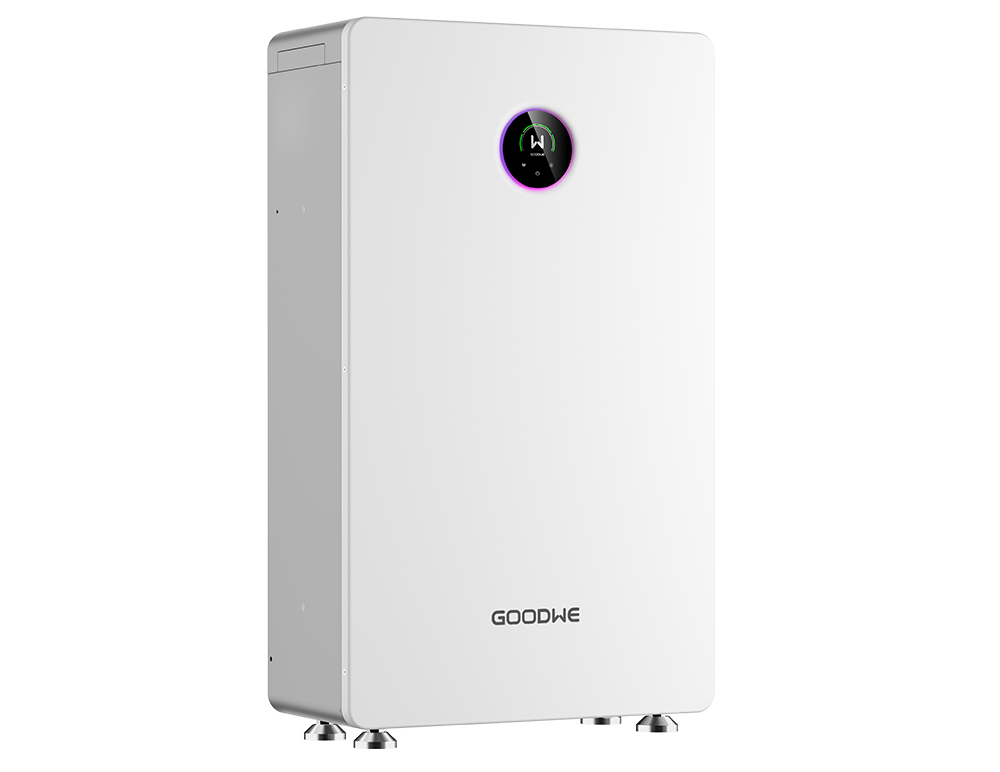

14.3kWh GoodWe BAT Series Low Voltage Lithium Battery
The GoodWe BAT Series 14.3kWh Low Voltage Battery is a high-capacity residential energy storage solution engineered for performance, longevity, and seamless integration with GoodWe low-voltage inverters.
Designed for homeowners seeking reliable backup power and improved solar self-consumption, the BAT Series combines LFP safety, high-capacity 280Ah cells, and fast charge/discharge capabilities.
With support for parallel expansion and compatibility with ES Uniq single-phase and ET LV three-phase inverters, this unit provides a flexible, scalable, and efficient storage solution for modern homes.
Product Features
- High Power Efficiency: 12kW charge rate and 13.2kW discharge for rapid load support.
- Supports continuous 0.8C charging and 0.94C discharging.
- High-capacity 280Ah cells provide long cycle life (6,500 cycles).
- Reliable LFP (LiFePO₄) chemistry for superior safety and thermal stability.
- Wide Compatibility: Works with GoodWe ES Uniq (single-phase) and ET LV (three-phase) inverters.
- White appliance-style design with smart LED display for real-time system status.
- Supports parallel connection for easy scalability.
- Selectable mounting: floor-mounted or wall-mounted.
Specifications
- Model: GW14.3-BAT-LV-G10
- Rated Energy: 14.3kWh
- Usable Energy: ≥13.8kWh
- Battery Type: LFP (LiFePO₄)
- Nominal Voltage: 51.2V
- Max Continuous Charging Current: 224A
- Max Continuous Discharging Current: 260A
- Max Input Power (System): 12kW
- Max Output Power (System): 12kW (13.2kW for 10 min)
- Peak Output Power: 20kW @ 15 seconds
- Charging Temperature Range: 0°C to +55°C
- Discharging Temperature Range: –20°C to +55°C
- Relative Humidity: 5% – 85%
- Max Operating Altitude: 4000m
- Communication: CAN, RS485
- Ingress Protection: IP20
- Weight: 125kg
- Dimensions (No Base): 530 × 885 × 246 mm
- Dimensions (With Base): 530 × 918.6 × 246 mm
- Optional Features: Aerosol fire suppression
- Ambient Temperature (Standard): 0°C to +45°C
- Ambient Temperature (Recommended): +10°C to +35°C
- Storage Time: • 12 months from –20°C to +35°C • 6 months from +35°C to +45°C
- Mounting: Wall-Mounted / Floor-Mounted
- Certifications: IEC 62619, IEC 63056, IEC 60730-1 EMC: EN IEC61000-6-1 / -6-2 / -6-3 / -6-4 UN38.3, ADR, MSDS
What’s in the Box
- 1 × 14.3kWh GoodWe BAT Series LV Battery
- 1 × Mounting Base or Wall Bracket Set
- Communication Cables (CAN/RS485)
- Power Cable Set
- User Manual
- Warranty Card
System Overview
- Designed for residential energy storage and backup power.
- Integrates seamlessly with GoodWe ES Uniq & ET LV inverters.
- High-rate charge/discharge supports heavy household loads.
- Supports parallel systems for expanded storage capacity.
- Ideal for solar-powered homes wanting greater energy independence.
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid COC must be issued once installed, specific to the solar or backup system. Any warranty claim submitted without installation photos, COC, and proof of a qualified installer can be rejected and may void the warranty.
