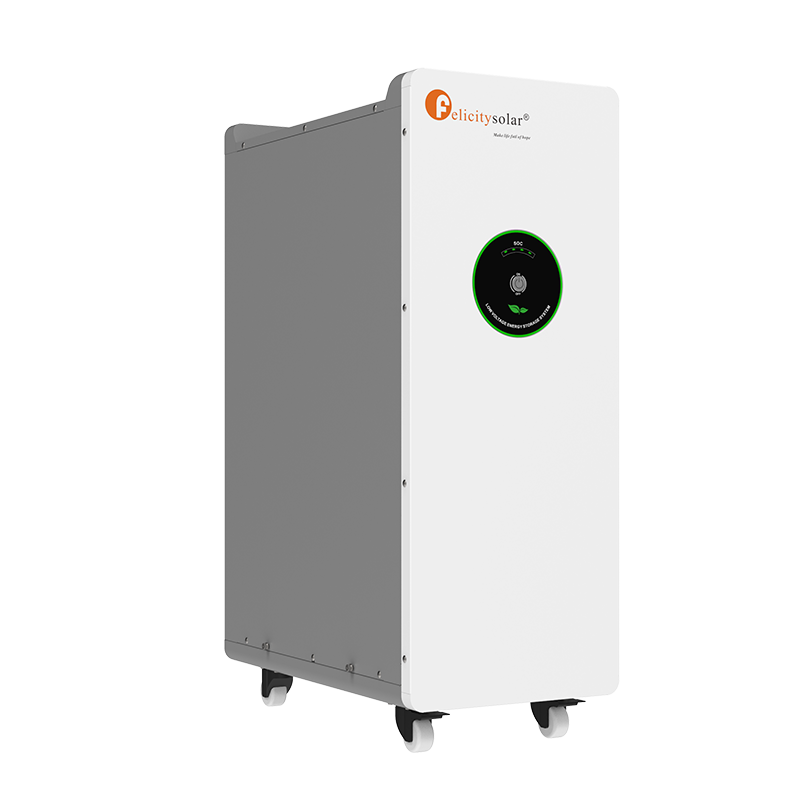

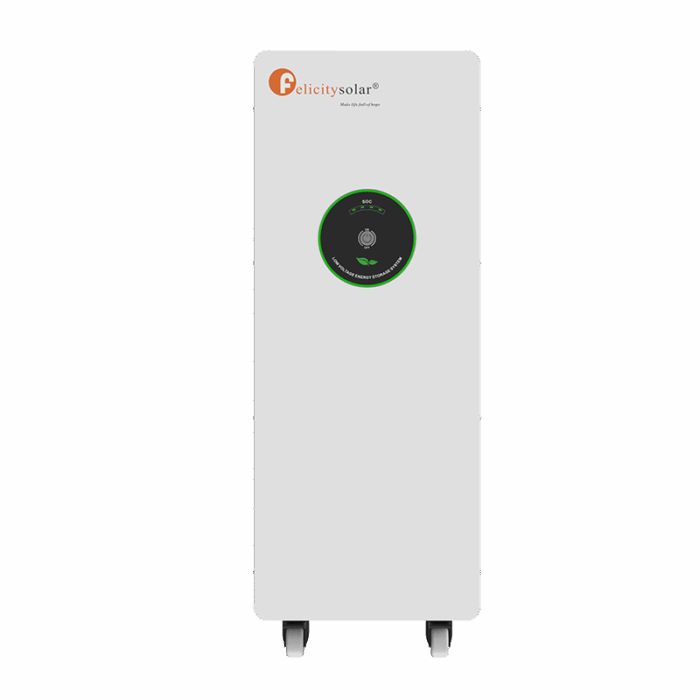

12.5kWh 48V Felicity LPBF Lithium Battery
The 12.5kWh 48V Felicity LPBF Lithium Battery is a high-capacity LiFePO₄ energy storage solution designed for homes, businesses, and larger hybrid or off-grid systems.
Featuring a built-in smart BMS, robust output capability, and support for parallel expansion up to 90kWh, this battery delivers exceptional performance, safety, and scalability for demanding energy storage applications.
Its floor-mounted cabinet design, LED status indicators, and industry-leading cycle life make it ideal for installations requiring long-term reliability and stable power delivery.
Product Features
- High-safety LiFePO₄ chemistry with thermal stability and long cycle life.
- 12.5kWh usable energy storage — ideal for residential and commercial solar systems.
- Smart BMS offers full protection: over-charge, over-discharge, temperature, and short-circuit.
- Supports up to 6 batteries in parallel (90kWh total) for large-scale installations.
- RS485 / CAN communication ensuring compatibility with major inverter brands.
- LED display for SOC, alarms, and real-time system feedback.
- Durable, floor-mountable enclosure with integrated breaker and safety components.
- Over 6,000 cycles at 80% depth of discharge.
Specifications
- Model: LPBF48250
- Usable Capacity: 12.5kWh
- Battery Type: LiFePO₄
- Nominal Voltage: 51.2V
- Operating Voltage: 48–57.6V
- Recommended Charge/Discharge Current: ≤120A
- Recommended Charge/Discharge Power: ≤6,000W
- Maximum Charge/Discharge Current (15s): 200A
- Maximum Charge/Discharge Power (15s): 10,000W
- Depth of Discharge (DOD): ≥95%
- Scalability: Up to 6 units (90kWh)
- Communication: RS485 / CAN
- Protection Level: IP21
- Cycle Life: ≥6,000 Cycles
- Charging Temperature: 0–55°C
- Discharging Temperature: –20–60°C
- Display: LED
- Installation: Floor-Mounted
- Protection: Built-in Smart BMS, Breaker, Fuse
- Net Weight: 154kg
- Gross Weight: 177kg
- Product Dimensions: 615 × 350 × 955 mm
- Package Dimensions: 718 × 450 × 1112 mm
- Warranty: 5 Years
What’s in the Box
- 1 × 12.5kWh Felicity LPBF Lithium Battery
- 1 × RS485/CAN Communication Cable
- 1 × Battery Parallel Connection Cable
- 1 × Power Cable Set
- 1 × User Manual
- 1 × Warranty Card
System Overview
- Ideal for large household systems, light commercial setups, and hybrid backup applications.
- Scalable up to 90kWh for high-demand environments.
- Smart BMS ensures safe operation, cell balancing, and communication with hybrid inverters.
- Works with leading inverter brands via RS485/CAN communication protocols.
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null and void.
