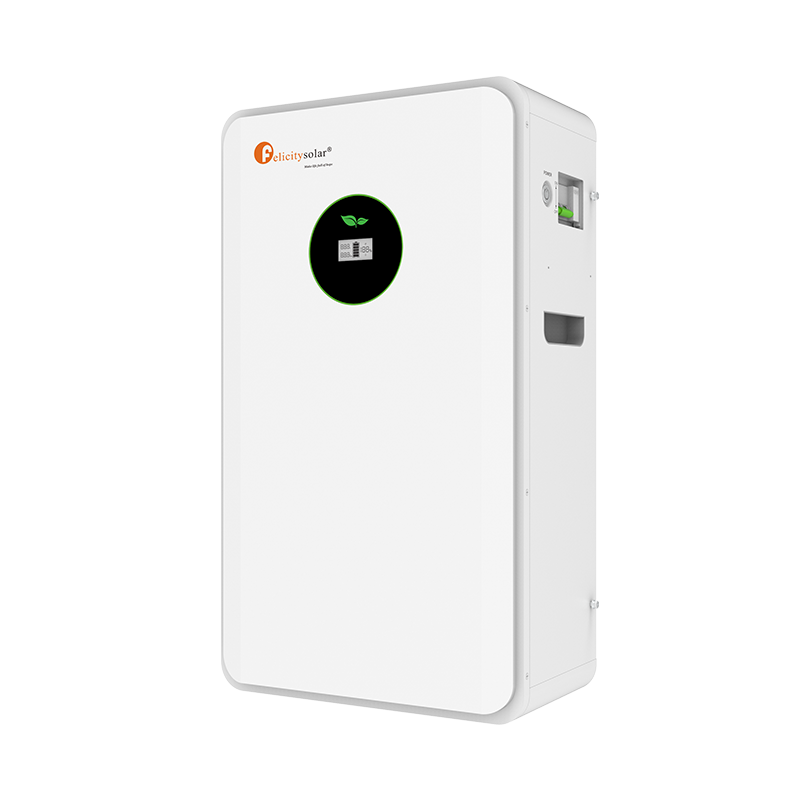

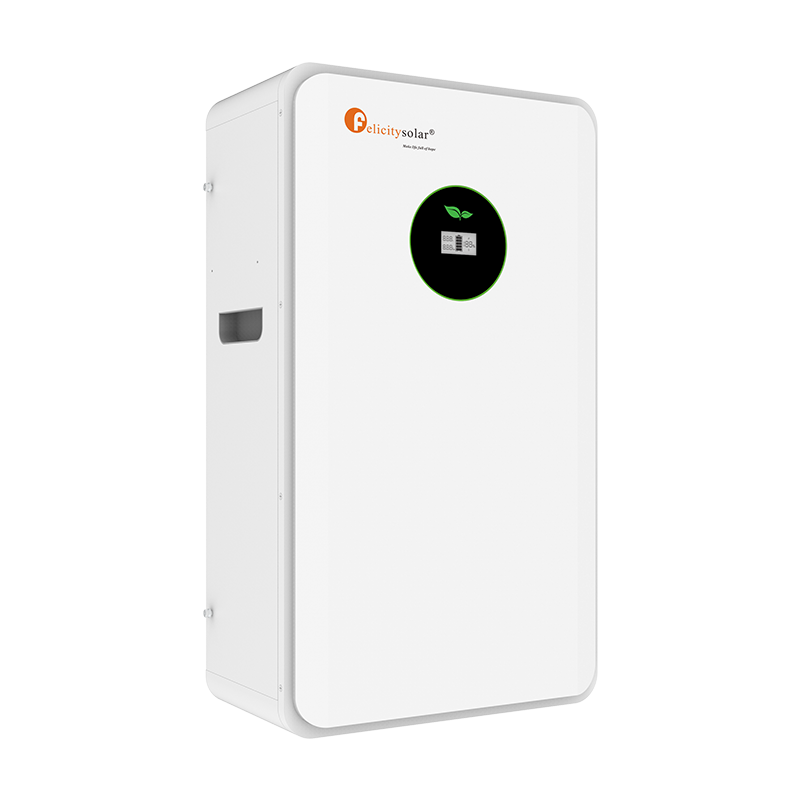

10kWh 48V Felicity Lithium Battery
The 10kWh 48V Felicity Lithium Battery is a high-performance LiFePO₄ energy storage system designed for residential and commercial solar applications.
Featuring robust power output, long cycle life, built-in smart BMS, and remote monitoring via WiFi, this battery delivers exceptional reliability, efficiency, and safety.
Its wall-mount or floor-mount enclosure provides installation flexibility, while its high parallel capability supports large-scale storage expansion up to 150kWh.
Product Features
- High-safety LiFePO₄ chemistry with excellent thermal stability.
- 10kWh usable storage suitable for homes, offices, and commercial systems.
- Built-in Smart BMS with protections for voltage, temperature, current, and short-circuit events.
- Supports up to 15 units in parallel (150kWh total).
- RS485 / CAN communication compatible with leading inverter brands.
- LCD + LED display for SOC, voltage, current, and fault codes.

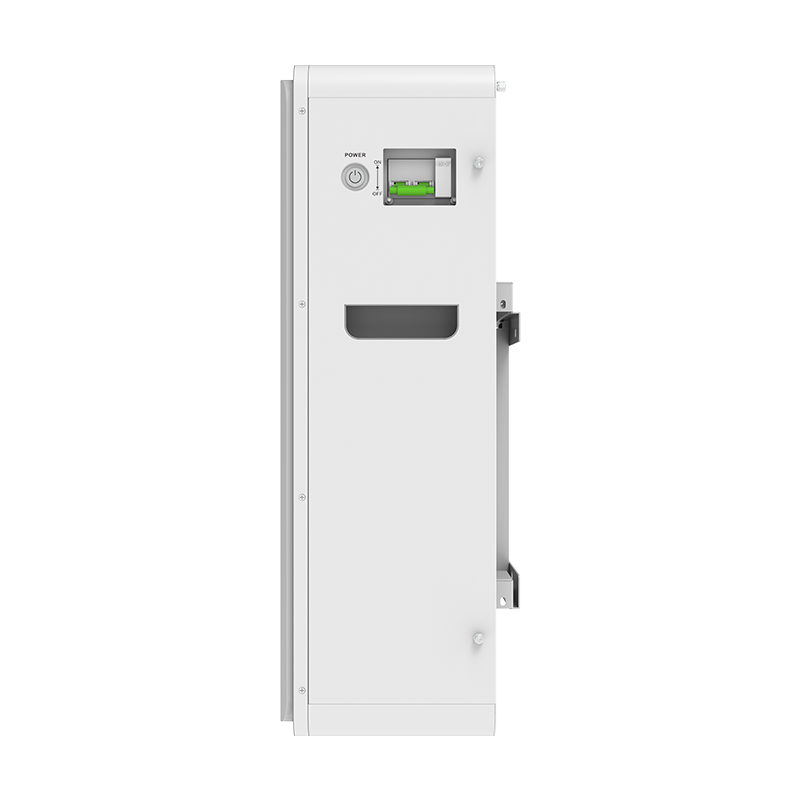

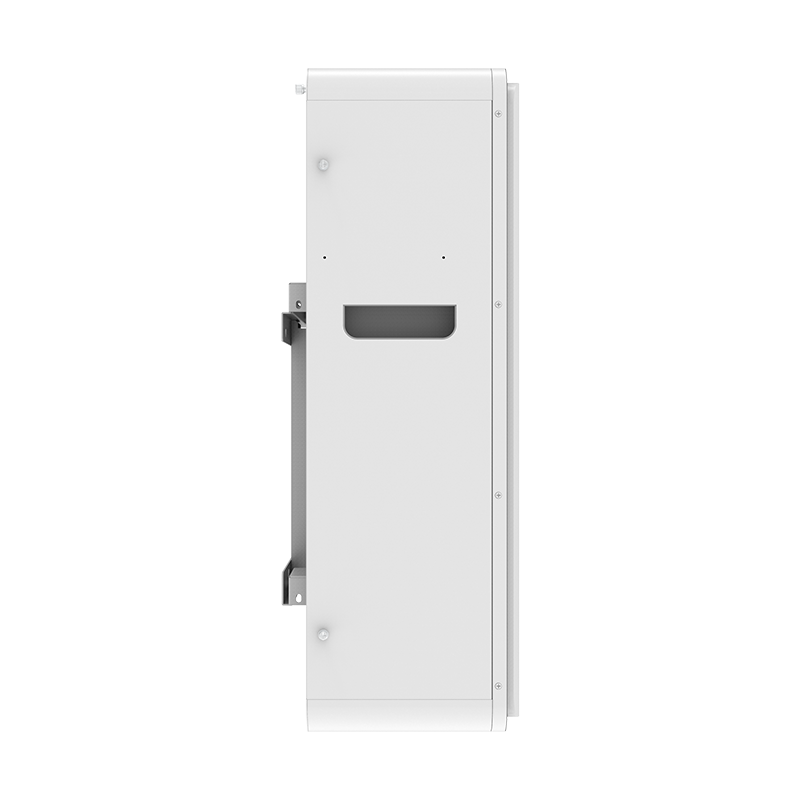

- Flexible installation: wall-mounted or floor-mounted.
- Integrated WiFi for remote monitoring and diagnostics.
- Long service life exceeding 6,000 cycles at 80% DOD.
Specifications
- Model: FLA48200
- Usable Capacity: 10kWh
- Battery Type: LiFePO₄
- Nominal Voltage: 51.2V
- Operating Voltage: 44.8–57.6V
- Recommended Charge/Discharge Current: ≤120A
- Recommended Charge/Discharge Power: ≤6,000W
- Maximum Charge/Discharge Current (15s): 150A
- Maximum Charge/Discharge Power (15s): 7,500W
- Depth of Discharge (DOD): ≥95%
- Scalability: Up to 15 units (150kWh)
- Communication: RS485 / CAN
- Protection Level: IP21
- Cycle Life: ≥6,000 Cycles
- Charging Temperature: 0–55°C
- Discharging Temperature: –20–55°C
- Display: LCD + LED
- Installation: Wall-Mounted / Floor-Mounted
- Protection: Smart BMS, Breaker, Fuse
- Net Weight: 68kg
- Gross Weight: 88kg
- Product Dimensions: 735 × 433 × 188 mm
- Package Dimensions: 849 × 550 × 362 mm
- Warranty: 7 Years
What’s in the Box
- 1 × 10kWh Felicity Lithium Battery
- 1 × RS485 Cable
- 1 × PCS Communication Cable
- 1 × Parallel Battery Cable (35mm²)

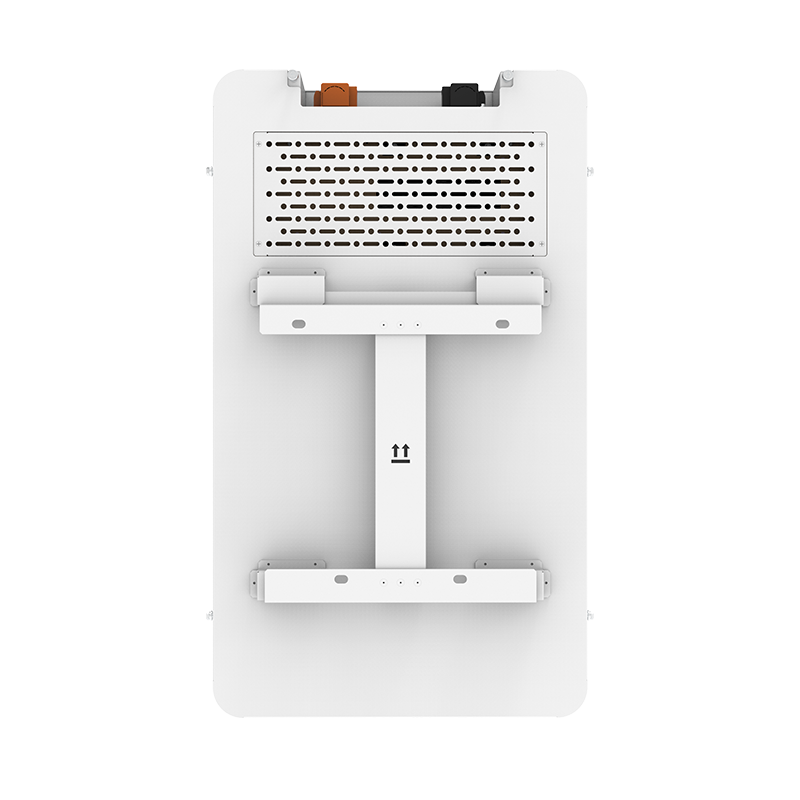

- 1 × Wall Mount Kit
- 1 × User Manual
- 1 × Warranty Card
System Overview
- Suitable for medium-to-large home solar systems and business backup.
- Parallel expandable up to 150kWh for high-demand environments.
- Smart BMS ensures safe and consistent performance.
- Compatible with MPPT chargers and hybrid/off-grid inverters via RS485/CAN.
Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null and void.
